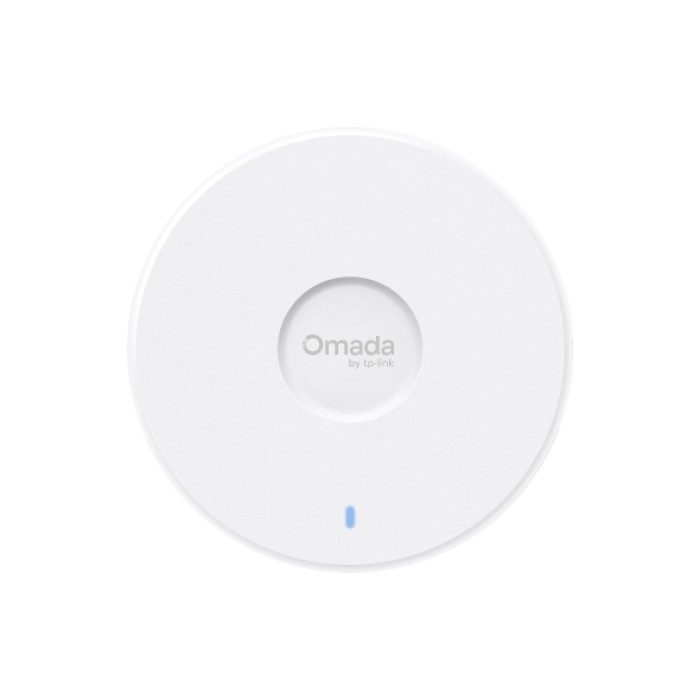

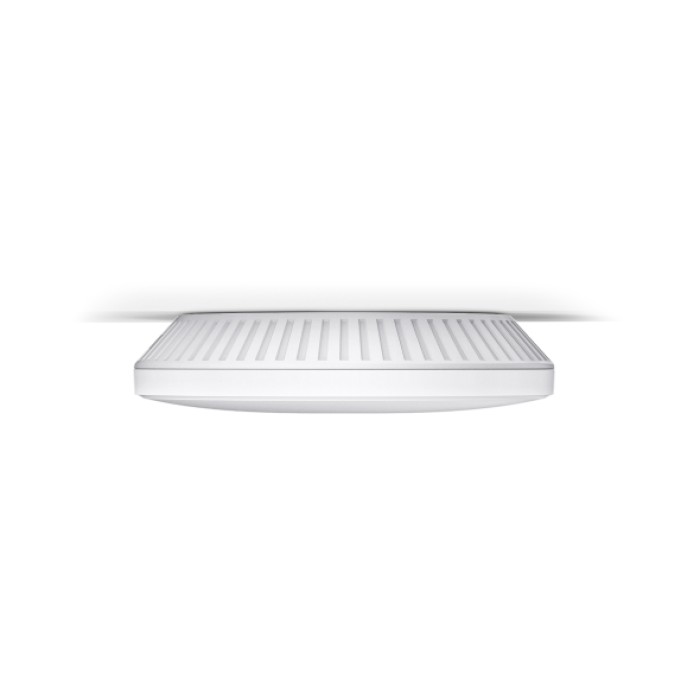

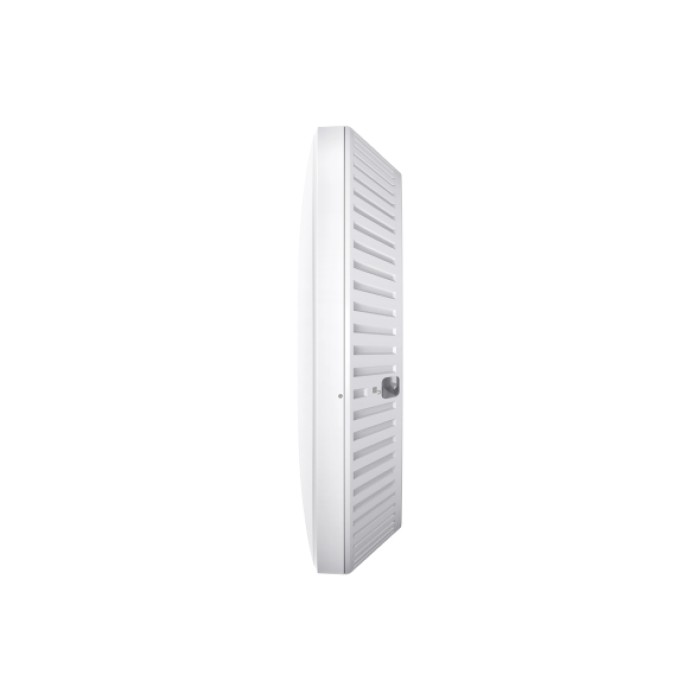

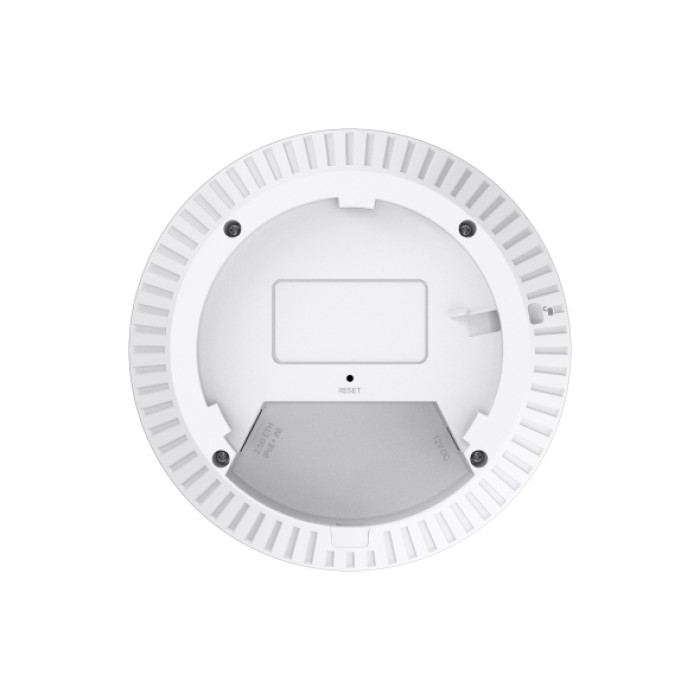

Omada by Tplink EAP727 BE5000 Ceiling Mount Wi-Fi 7 Access Point
5-Stream Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.
1x 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.
Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming.
More Connections and Wider Coverage: Supports 510+ concurrent connections and covers up to 2,000 ft (185 m) for reliable and extensive wireless connectivity.
| Feature | Details |
|---|---|
| Interface | 1x 2.5 Gbps Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE 12V/1.5A DC (adapter not included) DC input: 12V, 2.1 mm / 5.5 mm center-positive plug (9 mm length) |
| Weight | 0.47 kg (1.04 lb) |
| Dimensions | 6.3 x 6.3 x 1.4 in (160 x 160 x 36.7 mm) |
| Antenna | 2.4 GHz: 2 x 4 dBi 5 GHz: 3 x 6 dBi |
| Bluetooth Antenna | 1 x internal antenna (4 dBi peak gain) |

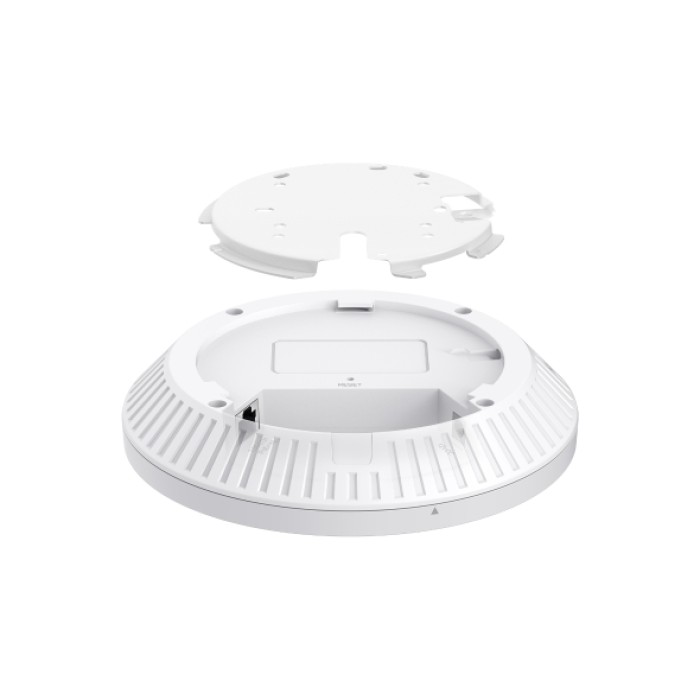

| Mounting | Ceiling / Wall / Junction Box / T-Bar (kits included) |
| Max Power Consumption | 17.5 W (PoE) 15.8 W (DC) |
| Coverage | 2,000 ft² (185 m²) |
| Concurrent Clients | 510+ clients |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz / 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Features | MLO, 4K-QAM, 160 MHz, OFDMA Seamless roaming, Mesh Beamforming, Band steering Load balancing, Airtime fairness Multiple SSIDs (16 total) QoS (WMM), rate limit RADIUS accounting, MAC authentication |
| Wireless Security | Captive portal support WPA/WPA2/WPA3 Personal & Enterprise MAC filtering, access control Client isolation VLAN support Rogue AP detection |
| Transmission Power | 4–26 dBm (2.4 GHz) 6–27 dBm (5 GHz) |
| Management | Omada App (V5.0+) Omada Cloud / Hardware / Software Controller Web-based GUI SNMP v1/v2c/v3 SSH support Syslog (local & remote) Email alerts LED control MAC access control |
| Certification | FCC, CE, VCCI, JRF, ICES |
| Package Contents | EAP727 Installation guide Mounting kit |
| Operating Temperature | 0 C to 40 C |
| Storage Temperature | -40 C to 70 C |
| Operating Humidity | 10%–90% (non-condensing) |
| Storage Humidity | 5%–90% (non-condensing) |
| Altitude | Up to 2000 m (operating & storage) |
