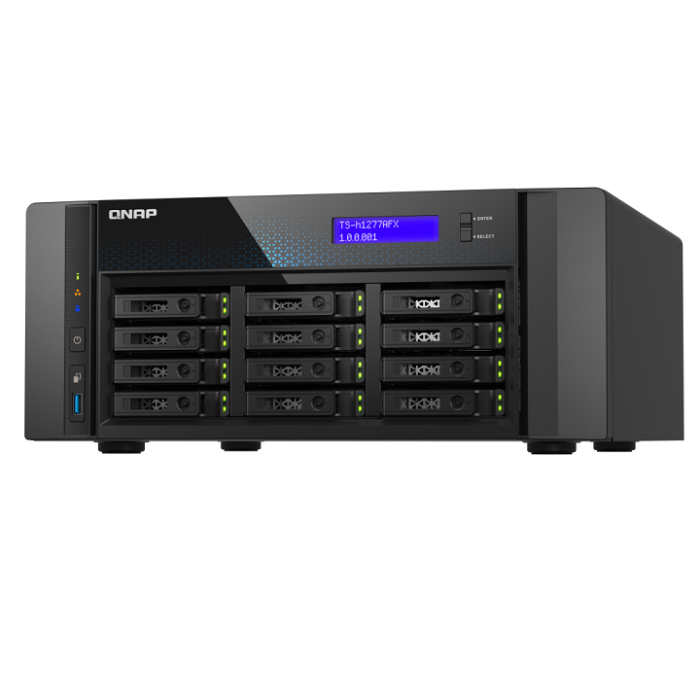

Qnap TS-h1277AFX High-performance All-flash NAS - TS-h1277AFX-R7-32G
High Performance: Powered by an AMD Ryzen™ 7 CPU with 64GB DDR5 ECC memory, expandable up to 192GB.
All-Flash Storage: Supports 12 x 2.5" SATA SSDs, ideal for high-speed, low-latency workloads.
Advanced Connectivity: Comes with 2 x 10GbE and 2 x 2.5GbE ports, plus 3 PCIe Gen 4 slots for expansion.
ZFS with QuTS hero OS: Provides enterprise-grade data integrity, snapshots, compression, and deduplication.
| QNAP NAS Specifications (AMD Ryzen™ 7 9000 Series) | |
|---|---|
| CPU | AMD Ryzen™ 7 9000 Series, 8 Cores / 16 Threads, 3.8 GHz (base) up to 5.5 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processor | AMD Radeon™ iGPU |
| Encryption Engine | AES-NI Hardware Encryption |
| Hardware-accelerated Transcoding | Supported |
| Memory | |
| System Memory | 32 GB DDR5 ECC UDIMM (1 × 32 GB) |
| Maximum Memory | 192 GB (4 × 48 GB) |
| Memory Slots | 4 × DDR5 UDIMM |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Storage | |
| Drive Bays | 12 × 2.5" SATA 6Gb/s (ships without SSDs) |
| Drive Compatibility | 2.5" SATA SSDs (see compatibility list) |
| Hot-swappable | Supported (M.2 SSD not supported) |
| M.2 Slots | Optional via PCIe adapters (NVMe SSD PCIe Gen 3 or higher) |
| SSD Cache Acceleration | Supported |
| GPU Pass-through | Supported |
| SR-IOV | Supported |
| Networking | |
| 2.5 Gigabit Ethernet Ports | 2 × 2.5G/1G/100M/10M |
| 10 Gigabit Ethernet Ports | 2 × 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via PCIe adapter |
| Wake on LAN (WOL) | Supported (2.5GbE port only) |
| Jumbo Frame | Supported |
| Expansion / PCIe | |
| PCIe Slots | 3 |
| Slot 1 | PCIe Gen 4 ×4 |
| Slot 2 | PCIe Gen 4 ×8 or ×4 (×8 if Slot 1 unused) |
| Slot 3 | PCIe Gen 4 ×8 |
| Card Dimensions |
Slot 1–2: 185 × 111.15 × 18.76 mm (7.28 × 4.38 × 0.74") Slot 3: 280 × 111.15 × 18.76 mm (11.02 × 4.38 × 0.74") Wider cards may be installed if adjacent slot unused. |
| Connectivity | |
| USB 3.2 Gen 1 Ports | 1 |
| USB 3.2 Gen 2 (10Gbps) Ports | 2 (1 × Type-C with DPI, 1 × Type-A) |
| HDMI Output | 1 × HDMI 1.4b (up to 3840 × 2160 @ 30Hz) |
| Physical | |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, SSD1–12 |
| Buttons | Power, Reset, USB Auto Copy |
| LCD Display | Included with control buttons |
| Dimensions (H × W × D) | 157.2 × 368 × 362 mm (excluding foot pads, +30 mm possible) |
| Weight | Net: 8 kg / Gross: 8.9 kg |
| Environmental & Power | |
| Operating Temperature | 0°C – 40°C (32°F – 104°F) |
| Storage Temperature | −20°C – 70°C (−4°F – 158°F) |
| Relative Humidity | 5% – 95% RH non-condensing (wet bulb: 27°C / 80.6°F) |
| Power Supply Unit | 500W minimum, 100–240V AC |
| Power Consumption | 69.01 W (Disk Standby), 102.54 W (Typical Operation) |
| Cooling | 2 × 92 mm fans (12V DC) |
| System Warning | Buzzer |
| Kensington Security Slot | Included |
| Other Information | |
| Max Concurrent Connections (CIFS) | Up to 10,000 (with maximum memory) |
