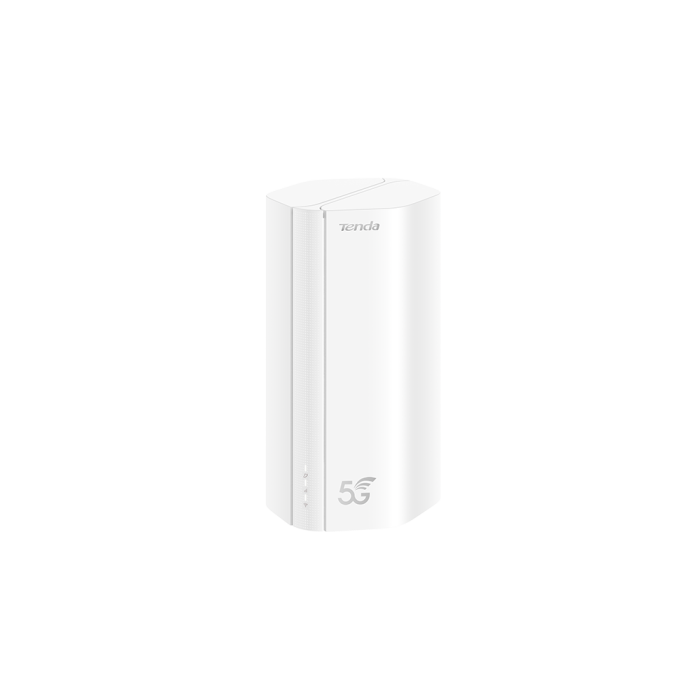

Tenda 5G01 AX1500 Wi-Fi 6 5G NR Router
- Features: MU-MIMO, WAN Failover, Xmesh(WiFi+)
- SIM Slot: Nano(4FF)
- Max No.of Connected Devices: 64
- 1*GE LAN/WAN Port, 1*GE LAN Port
- Wi-Fi Speed:2.4G: 300M; 5G:1201M
- 5G Speed: 2.3G
| 5G NR Router Specifications | |
|---|---|
| Hardware Specifications | |
| 5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA | |
| Release 15 | |
| DL: Cat12, UL: Cat13 | |
| SA: 2 Gbps / NSA: 2.2 Gbps (DL) SA: 1 Gbps / NSA: 575 Mbps (UL) | |
|
SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n77, n78 NSA: n1, n3, n7, n38, n40, n41, n66, n77, n78 FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 20, 28 TDD-LTE: 38, 40, 41, 66 WCDMA: 850, 900, 1900, 2100 MHz |
|
| 5G NR: 1CC / EN_DC: 4CC | |
| n1/n41/n77/n78: 4×4 MIMO n28: 2×2 MIMO | |
| 256QAM | |
| Wireless Connectivity | |
| Wi‑Fi 6 (802.11ax) with 2×2 MIMO | |
| 2.4GHz: 300 Mbps 5GHz: 1201 Mbps | |
| 2.4 GHz, 5 GHz | |
| 2.4 GHz: up to 20 dBm 5 GHz: up to 23 dBm | |
| WPA3-SAE/WPA2-PSK, WPA2-PSK | |
| WPS, Guest Network, Mesh (WiFi+) | |
| Ports & Indicators | |
| 1 × LAN/WAN, 1 × LAN (10/100/1000 Mbps) | |
| 1 × Nano SIM (4FF) | |
| Power On/Off, Reset, Mesh | |
| 4 × Internal 5G/4G, 2 × Internal Wi-Fi | |
| Internet, 5G/4G Signal, Wi-Fi | |
| Dimensions & Power | |
| 92 × 118.5 × 196 mm | |
| Net: 460 g, Gross: 810 g | |
| Input: 100V–240V AC 50/60Hz Output: 12V ⎓ 1.5A | |
| Software Specifications | |
| 4G/5G or Wired | |
|
Auto-APN, SA/NSA Mode, Auto Dial-Up, Roaming, SMS (Send/Receive/Delete), USSD, Data Limit, PIN Management, 5G Location Optimization |
|
| Mesh (WiFi+), DHCP (Client/Server), Guest Wi-Fi | |
| Firmware Upgrade (Local/OTA), IPv4/IPv6 Dual Stack, Local & Remote Management, TR069 | |
| Environmental | |
| 0℃ ~ 40℃ | |
| -30℃ ~ 70℃ | |
| 10% ~ 90% RH (Non-condensing) | |
| 5% ~ 90% RH (Non-condensing) | |
| Package Contents | |
|
1 × 5G NR Router 1 × Ethernet Cable 1 × Power Adapter 1 × User Guide | |
