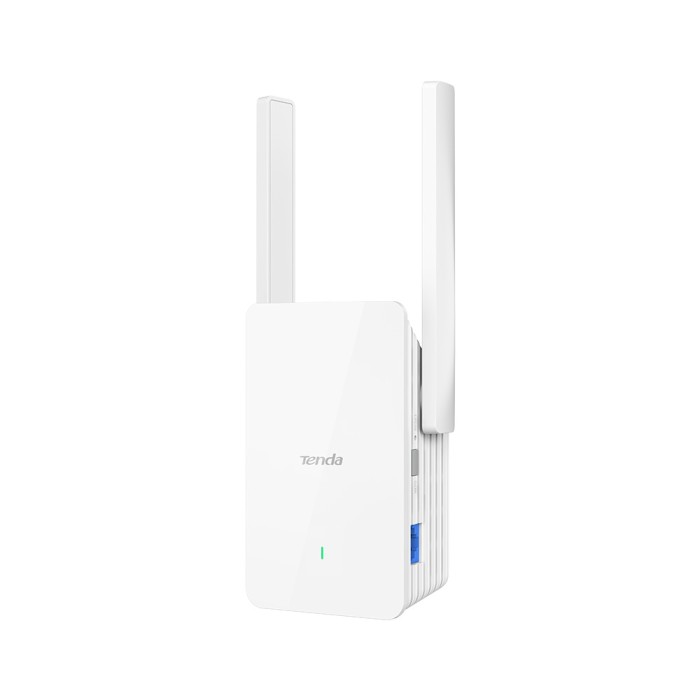

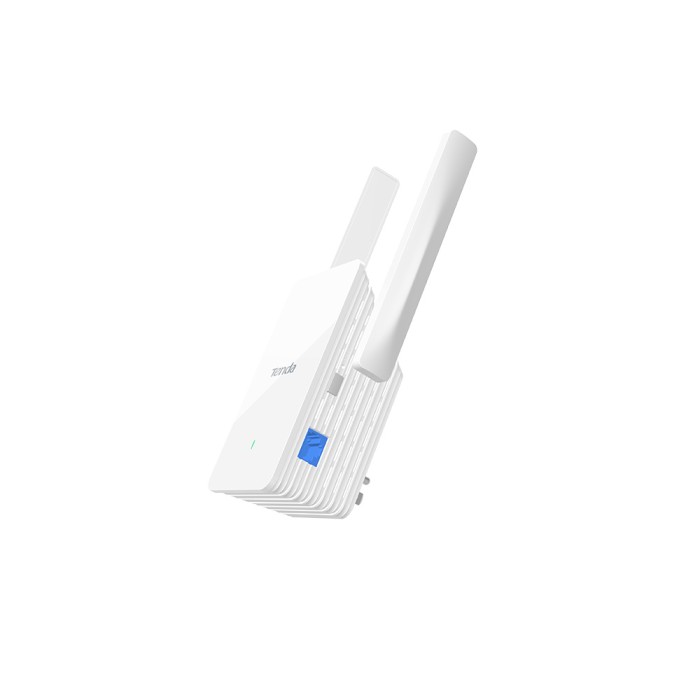

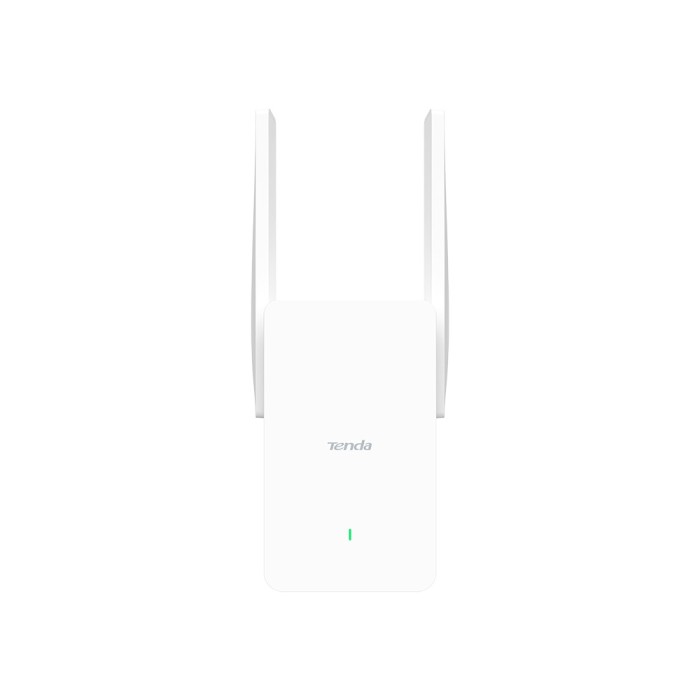

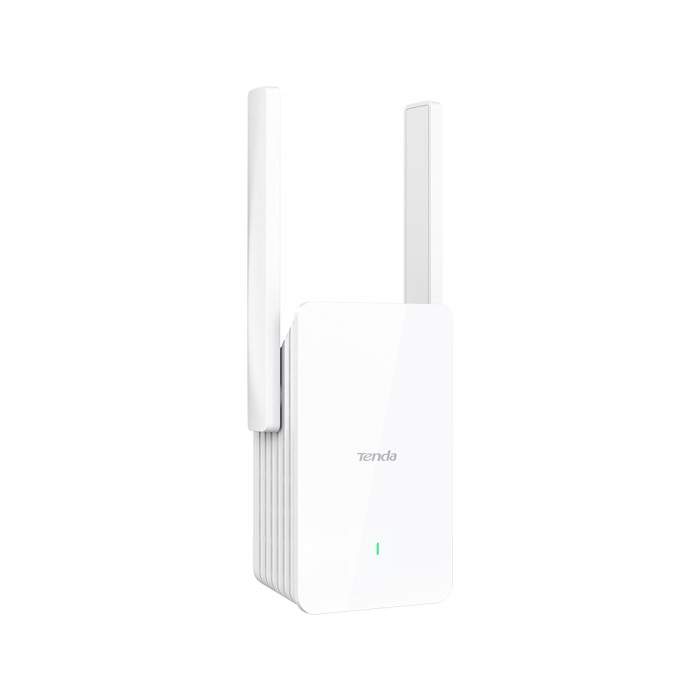

Tenda A23 Dual Band Wi-Fi 6 Range Extender
- Wall-mounted，One-button WPS bridging
- Interface: 1*1000Mbps Port
- Antenna: 2*5dBi
- Wi-Fi6，2.4G: 300Mbps，5G: 1201Mbps
| Dual-Band Wi-Fi 6 Range Extender - Specifications | |
|---|---|
| Hardware | |
| 1 × 10/100/1000Mbps RJ45 | |
| 2 × 5dBi dual-band antennas | |
| 1 × WPS Button 1 × Reset Button |
|
| 1 × Signal LED | |
| 123 × 72 × 47.5 mm | |
| Wireless | |
| IEEE 802.11a/b/g/n/ac/ax | |
| 2.4 GHz & 5 GHz (11ax) | |
|
2.4 GHz: 11b-1M: -96.5dBm 11g-54M: -78.5dBm 11n-20M-MCS7: -76.5dBm 11n-40M-MCS7: -72dBm 5 GHz: 11a-6M: -95dBm 11n-20M-MCS7: -76dBm 11n-40M-MCS7: -72.5dBm 11ac-80M-MCS9: -63.5dBm 11ax-80M-MCS11: -60.5dBm |
|
| 2.4GHz ≤ 20dBm 5GHz ≤ 23dBm |
|
| Repeater Mode, Access Point Mode | |
|
WPA2-PSK WPA3-SAE / WPA2-PSK Wireless Encryption Enable/Disable |
|
| Other Information | |
| FCC, CE, SRRC, RoHS, UCCA | |
| CN, US, EU, UK, AU, BR | |
|
1 × Dual-Band Wi-Fi 6 Range Extender 1 × Quick Installation Guide |
|
|
Online Upgrade LED Indicator Control DST Settings Factory Reset Login Password Reboot |
|
| Environment | |
| 0°C ~ 40°C | |
| -40°C ~ 70°C | |
| 10% ~ 90% RH (non-condensing) | |
| 5% ~ 90% RH (non-condensing) | |
