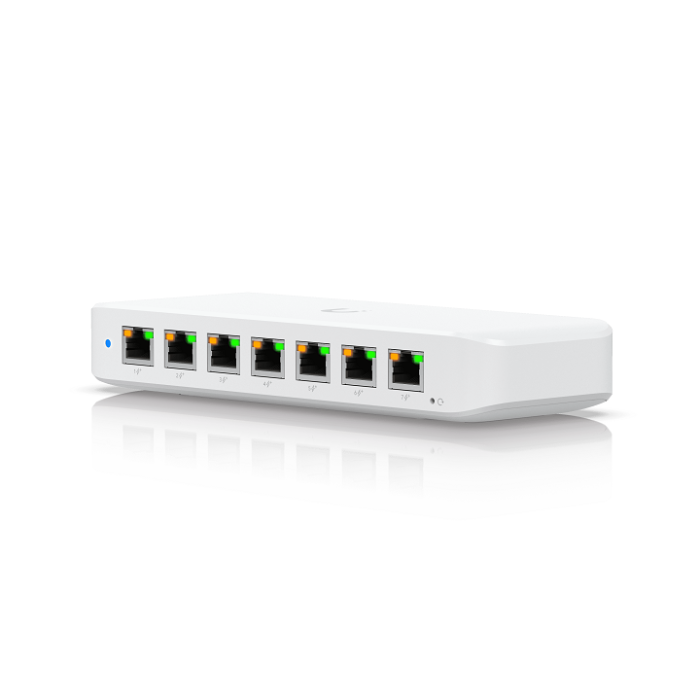

Ubiquiti 202W Ultra 210W Layer 2 8-port GbE PoE Switch - USW-Ultra-210W-UK
A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.
Note. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
Note. PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
| Dimensions & Form Factor | |
|---|---|
| Dimensions | 203 x 76 x 33 mm (8 x 3 x 1.3") |
| Form Factor | Compact desktop, wall, magnetic |
| Port Layout | |
| RJ45 Ports | 1 GbE RJ45: 8 ports (7 x PoE+, 1 x PoE++ input) |
| Speed Support | 1G / 100M / 10M |
| Max PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Layer 2 Features | |
| STP & RSTP | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| PoE Ports | 7 × PoE+ 1 × PoE++ |
| Max PoE Wattage per Port | PoE+: 30W |
| Max Power Consumption | 9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input |
| Power Method | (1) AC/DC adapter (Included) (1) PoE++ |
| Power Input Method | DC Input / PoE |
| Power Supply | AC/DC, external, 210W |
| Supported Voltage Range | 50–57V DC / PoE |
| Management | Ethernet |
| Heat Dissipation (Excluding PoE Output) | 30.708 BTU/hr 27.296 BTU/hr |
| Enclosure Material | Polycarbonate |
| Ambient Operating Temperature | PoE++ input: -30 to 60C (-22 to 140F) 210W AC adapter input: -20 to 60C (-4 to 140F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network v8.0.7 or later |
