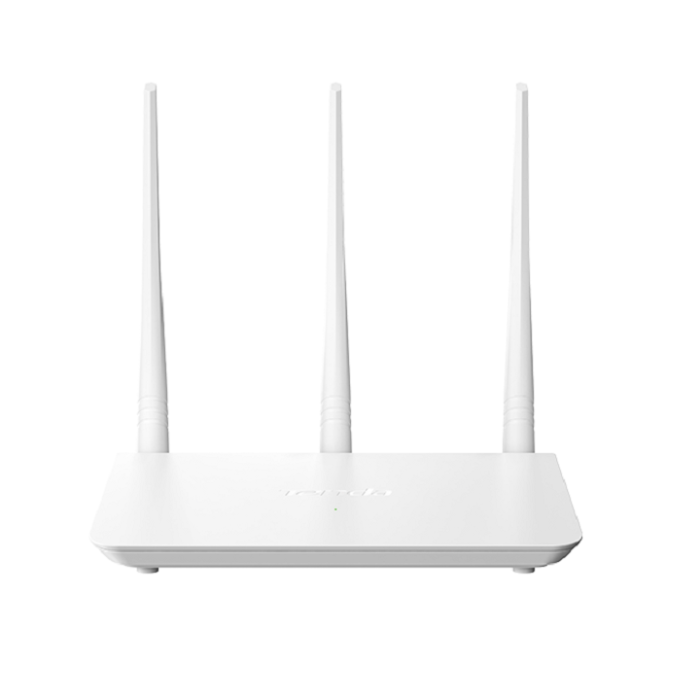

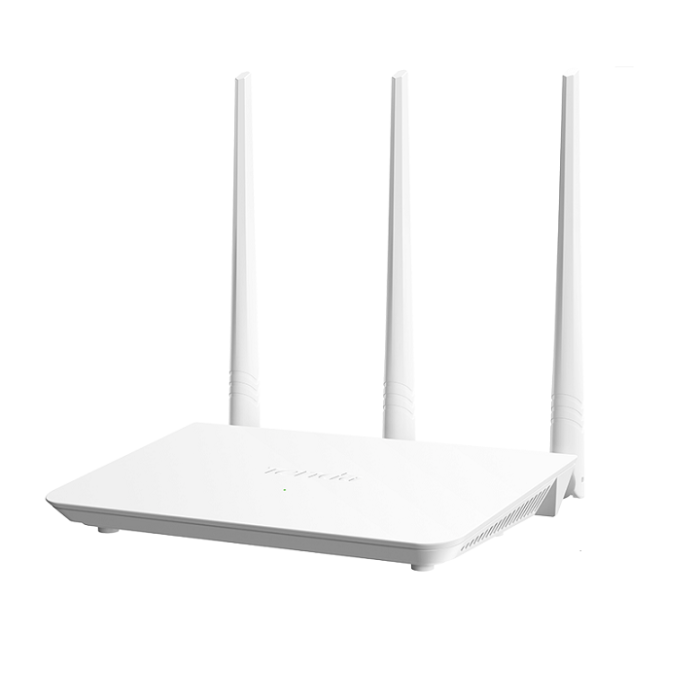

Tenda AC3 Wireless AC750 Easy Setup Router
- Dual-band concurrent rate up to 750Mbps
- Dual-core 1 GHz CPU
- 3*5dBi high-gain omnidirectional antenna
- Support IPv6 Passthrough
| Wi-Fi Router Specifications | |
|---|---|
| Hardware | |
| IEEE802.3, IEEE802.3u | |
| 1 GHz | |
| 64 MB | |
| 4 × 10/100 Mbps WAN/LAN Ports | |
| 3 × External Antennas | |
| 1 × WPS/Reset Button | |
| Input: AC 100–240V ~ 50/60Hz Output: DC 12V ⎓ 1A | |
| 1 × LED | |
| 185.6 × 118.4 × 31.2 mm | |
| Wireless | |
| IEEE 802.11ac wave2/a/n (5 GHz) IEEE 802.11b/g/n (2.4 GHz) |
|
| 5 GHz: 433 Mbps 2.4 GHz: 300 Mbps |
|
|
2.4 GHz: 2412–2472 MHz (CH1–CH13) 5 GHz: 5150–5350 MHz (CH36–CH64), 5725–5850 MHz (CH149–CH165) |
|
|
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) |
|
| Wireless Security | |
|
WPA/WPA2, WPS Wireless Security: Enable / Disable | |
| Software | |
| PPPoE, Dynamic IP, Static IP | |
| IPv4 & IPv6 | |
|
Router Mode AP Mode Universal Repeater Mode (Client+AP, WISP) |
|
|
Client Filter URL Filter Time Limit |
|
|
DHCP Server DHCP Client List DHCP Static IP Reservation and Allocation |
|
| Port Forwarding | |
|
Block Ping From WAN UDP/TCP/ICMP Flood Attack Defense |
|
| DynDNS, no-ip, oray, 88ip | |
|
IPSec Transparent Transmission PPTP/L2TP Transparent Transmission PPTP VPN Server & Client L2TP VPN Client |
|
| Special Features | |
|
PPPoE Username/Password Clone Smart WiFi Schedule Smart Power Saving Smart LED On/Off Tenda Cloud Tenda WiFi App | |
| Basic Functions | |
|
Broadband Management MAC Address Clone System Log Backup & Restore Configurations Online Upgrade IPv6 Support | |
| Environmental | |
| 0℃ ~ 40℃ | |
| -40℃ ~ 70℃ | |
| 10% ~ 90% RH (non-condensing) | |
| 5% ~ 90% RH (non-condensing) | |
| Certification | |
| CE, FCC, RoHS | |
| Package Contents | |
|
Wi-Fi Router × 1 Network Cable × 1 Power Adapter × 1 Quick Installation Guide × 1 | |
