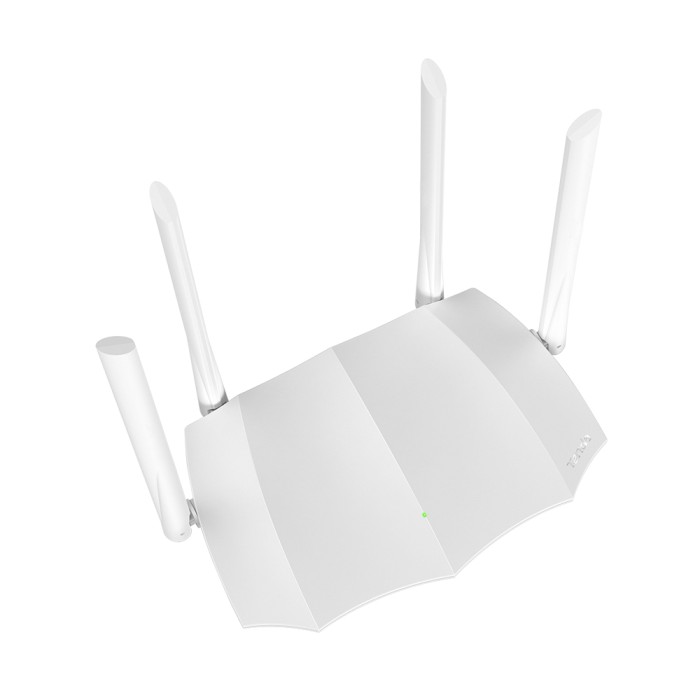

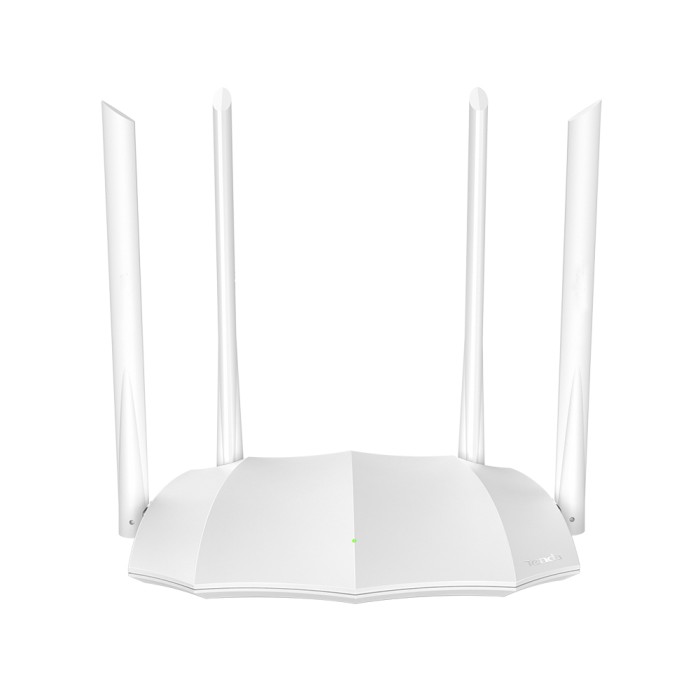

Tenda AC5 V3 AC1200 Dual Band WiFi Router
- MU-MIMO，IPv6，VPN，App Managementt
- Max. No. of Connected Devices: 30-40
- Interface: 4*100Mbps Ports
- Antenna: 4*6dBi
- Wi-Fi5，2.4G: 300Mbps，5G:867Mbps
| Hardware | |
|---|---|
| IEEE802.3, IEEE802.3u | |
| 1GHz | |
| 32MB | |

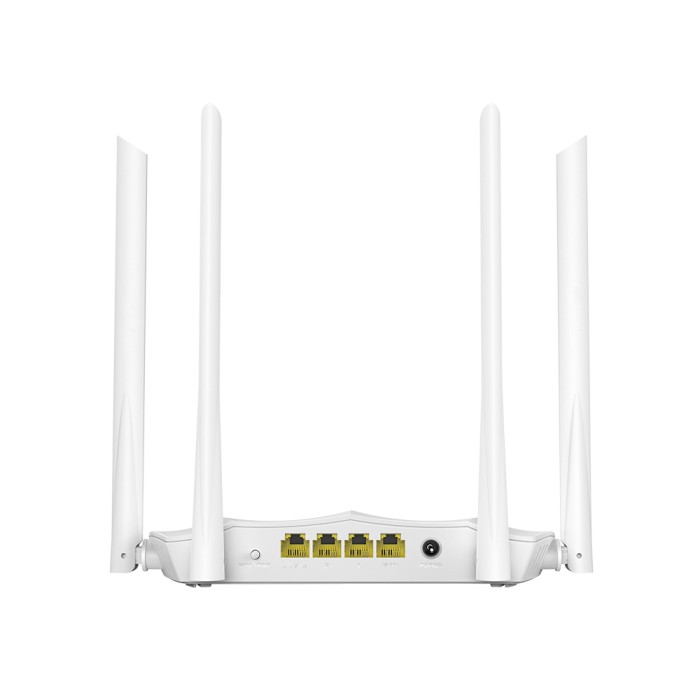

| 1 × 10/100Mbps WAN port 3 × 10/100Mbps LAN ports | |
| 4 × 6dBi external antennas | |
| 1 × Wi-Fi / Reset button | |
| Input: 100-240V ~ 50/60Hz 0.4A Output: DC 9V ⎓ 1A | |
| SYS × 1 | |
| 200 × 127 × 33.6 mm (L × W × H) | |
| Wireless | |
| IEEE 802.11ac/a/n @ 5GHz IEEE 802.11b/g/n @ 2.4GHz | |
| 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps | |
|
CE: 2.4G: 2412–2472 MHz (CH1–CH13) 5G: 5150–5250 MHz (CH36–CH64) FCC: 2.4G: 2412–2462 MHz (CH1–CH11) 5G: 5150–5250 MHz (CH36–CH64) 5725–5825 MHz (CH149–CH165) |
|
|
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) |
|
| WPA2-PSK, Enable / Disable | |
| Software | |
| PPPoE, Dynamic IP, Static IP PPPoE (Russia), PPTP (Russia), L2TP (Russia) Unify, Maxis, Maxis-special, Celcom, Digi | |
| IPv4 & IPv6 | |
| Router Mode, AP Mode, Universal Repeater Mode (Client + AP, WISP) | |
| Client Filter, URL Filter, Time Limit | |
| DHCP Server, DHCP Client List, Static IP Address Reservation and Allocation | |
| Port Forwarding, DMZ Host, UPnP | |
| ICMP Flood Attack Defense, TCP Flood Attack Defense, UDP Flood Attack Defense Block Ping From WAN | |
| DynDNS, no-ip, oray, 88ip | |
| IPsec pass through, PPTP pass through, L2TP pass through | |
| Special & Basic Features | |
| Guest Network, IPTV, Signal Adjustment | |
|
PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda App Dual-band in One IPv6 Features Supported Broadband management MAC address clone Backup & Restore configurations Firmware upgrade from local |
|
| Others | |
| Operating: 0℃ ~ 40℃ Storage: -40℃ ~ 70℃ | |
| Operating: 10% ~ 90% RH non-condensing Storage: 5% ~ 90% RH non-condensing | |
| CE, FCC, RoHS | |
| Wi-Fi Router × 1 RJ45 Ethernet Cable × 1 Power Adapter × 1 Quick Installation Guide × 1 | |
