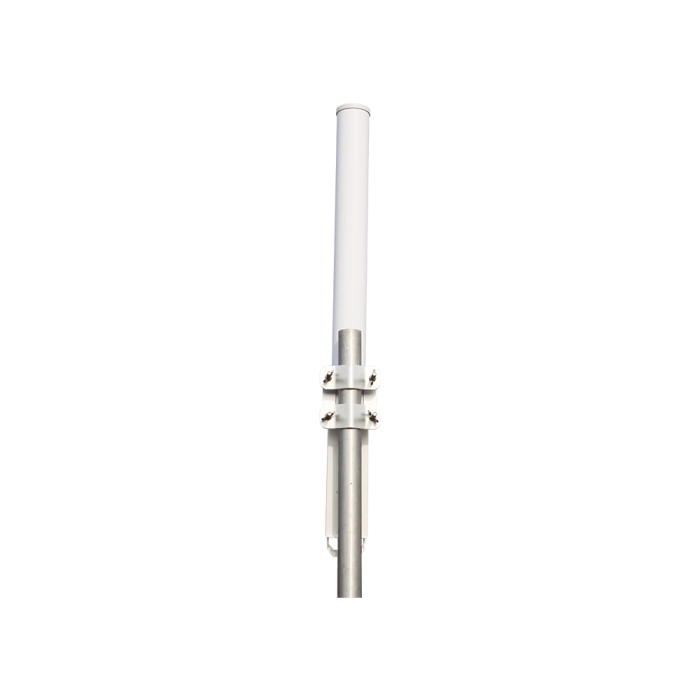

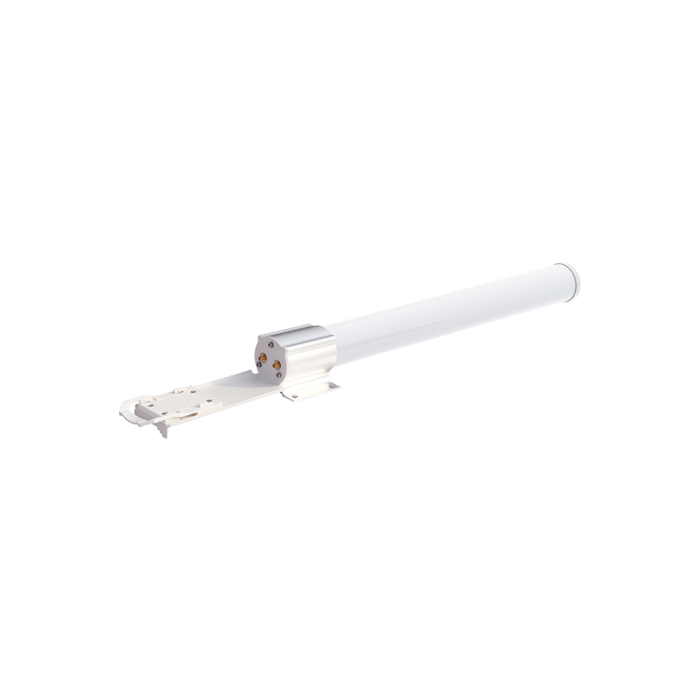

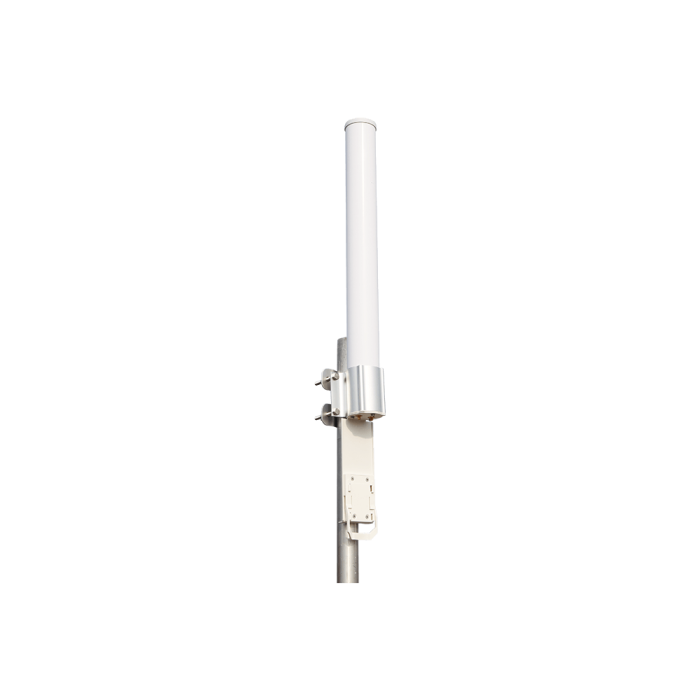

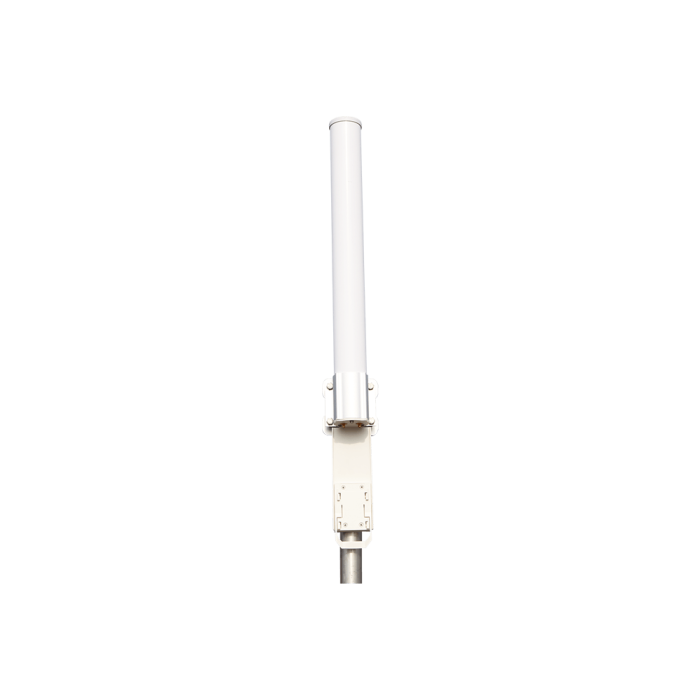

Tenda ANT12-5G360 5GHz 12dBi Dual Polarity Omni Antenna
- Mount pole Diameter 30-70mm
- Operating frequency at 5100~5850MHz
- Two RP-SMA Radio Connector
- Dual polarization design
- 12dBi high gain
Mechanical
Antenna Dimensions( LxWxD);
70 x 870mm
Mounting
Pole (D30-70mm)
Connector Type
2xRP-SMA
Operational Temperature
-55C to 70C
Operational Humidity
10%-90% non-condensing
Survival Wind
<200km/hr
Electrical
Antenna Type
Omni-Dircectional Antenna
Frequency Range
5100-5850 MHz
Gain
11-12dBi
Polarization
Vertical
Horizontal Beamwidth (6dB);
360
Vertical Beamwidth (6dB);
360
Elevation Beamwidth
6
Electrical Downtilt
0
Isolation
>25dB
VSWR
< 2.0
Maximum Power Per Port
20W
Impedance
50
Application Scenarios
Application Scenarios
Pair with B6 to deliver PtMP wireless connection within 1km for Privated ISP access or CCTV Surveillance
