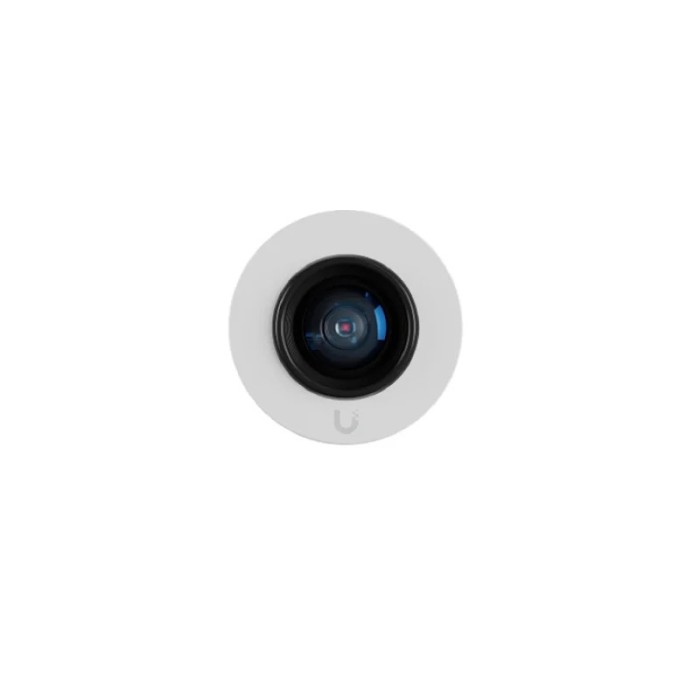

Ubiquiti AI Theta Lens - UVC-AI-Theta-Lens
Wide-angle lens that connects to an AI Theta Hub.
#1: 4K (8MP) video resolution
#2: 97.5 horizontal field of view
#3: Ideal for securing large, busy spaces such as entrances and lobbies
#4: Includes Standard Flush Mount for flat ceiling or wall mounting
#5: Compatible with AI Theta Angle Mount for flexible ceiling or wall mounting
| UVC-AI-Theta Lens Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 22.8 × 43.5 mm (0.9 × 1.7") |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate |
| Weatherproofing | Indoor use only |
| Optics | |
| Image Sensor | 8MP CMOS |
| Lens | Fixed focal length |
| View Angle | H: 97.5, V: 79.4, D: 118.2 |
| Video | |
| Video Compression | H.264 |
| Resolution | 8MP (3264 x 2448, 4:3) |
| Max Frame Rate | 24 FPS |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power Method | Theta proprietary |
| Power Supply | 5 V DC, 0.5 A |
| Max Power Consumption | 2.5 W |
| Mounting | |
| Mounting Options | Wall, ceiling mount (included) |
| Optional Accessories | Angle mount (sold separately) |
| Environment | |
| Operating Temperature | 0 to 40C (32 to 104F) |
| Operating Humidity | 10–90% non-condensing |
| Compliance | |
| Certifications | FCC, IC, CE |
