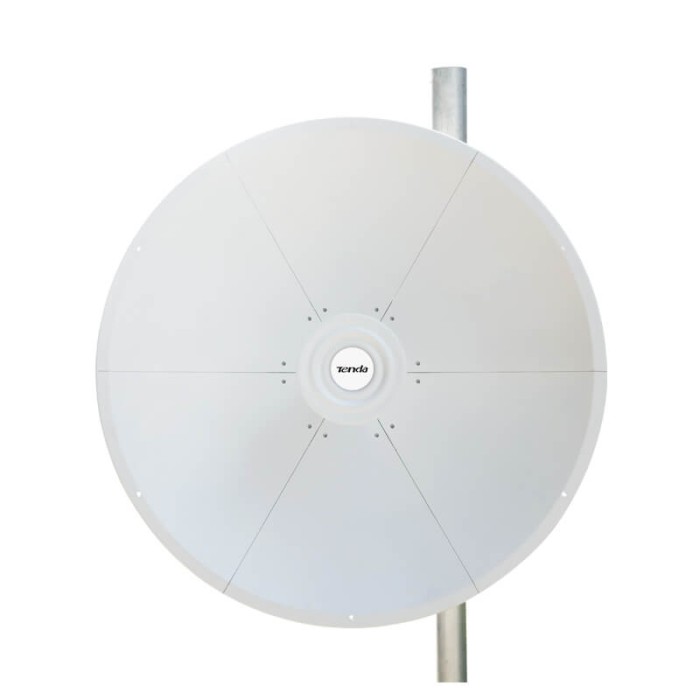

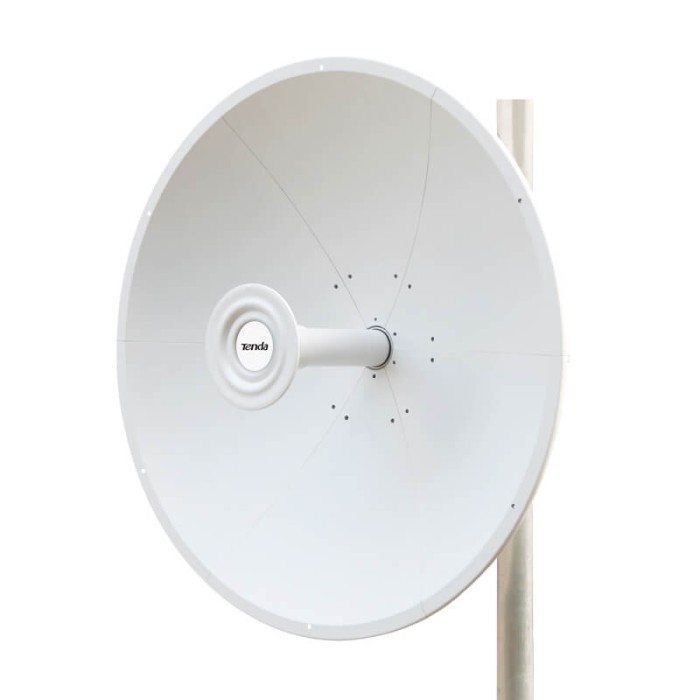

Tenda ANT30-5G 5GHz 30dBi Dual Polarity Dish Antenna
- Mount pole Diameter 30-70mm
- Operating frequency at 4900~6500MHz
- Two RP-SMA Radio Connector
- Dual polarization design
- 30dBi high gain
Mechanical
Antenna Dimensions( LxWxD);
650 x 380mm

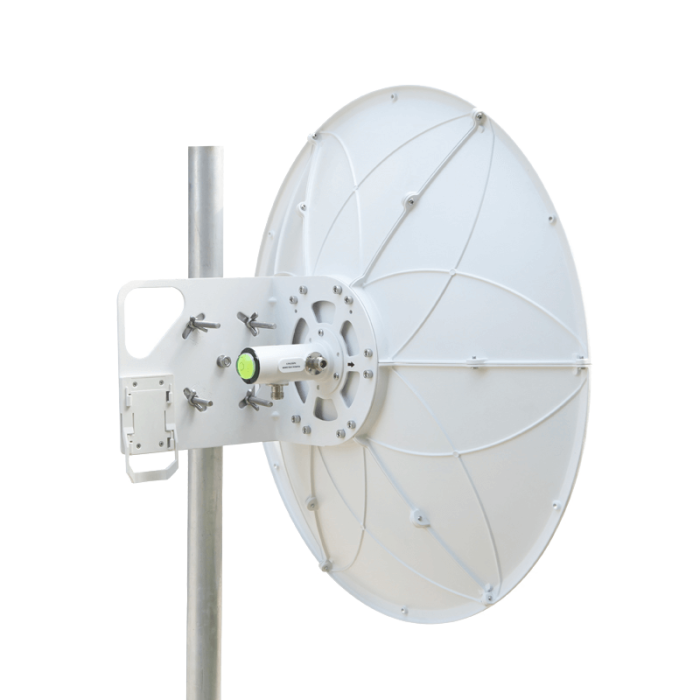

Mounting
Pole (D30-70mm)
Mechanical tilt capability
0-15
Connector Type
2xN-Type Connector
Operational Temperature
-40C -70C
Operational Humidity
10%-90% non-condensing
Survival Wind
<200km/hr
Electrical
Antenna Type
Dish Antenna
Frequency Range
4900-6500 MHz
Gain
30dBi
Polarization
Vertical and Horizontal
Horizontal Beamwidth (6dB);
6
Vertical Beamwidth (6dB);
6
Elevation Beamwidth
5
Electrical Downtilt
0
Front-To-Back Ratio
> 35dB
Isolation
>25dB
VSWR
< 2.0
Maximum Power Per Port
50W
Impedance
50
Application Scenarios
Application Scenarios
Pair with B6 to deliver PtP wireless connection within 20km for Privated ISP access or CCTV Surveillance
