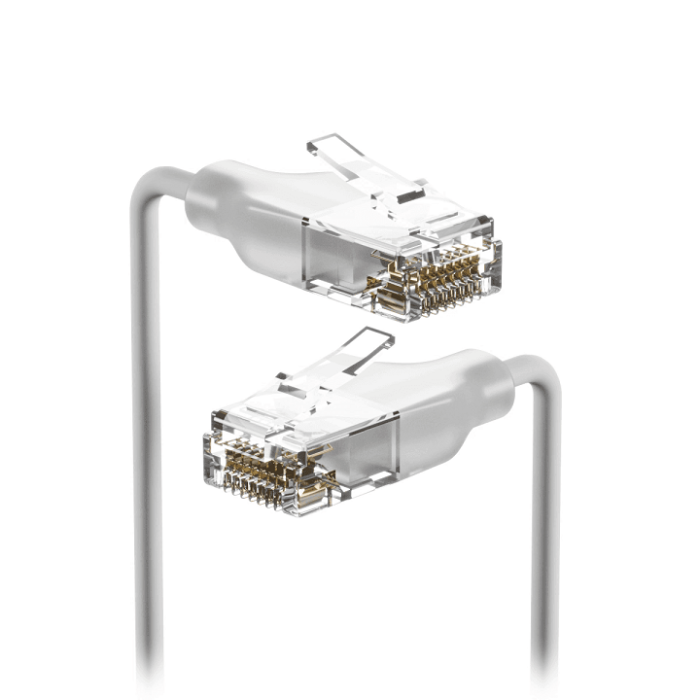

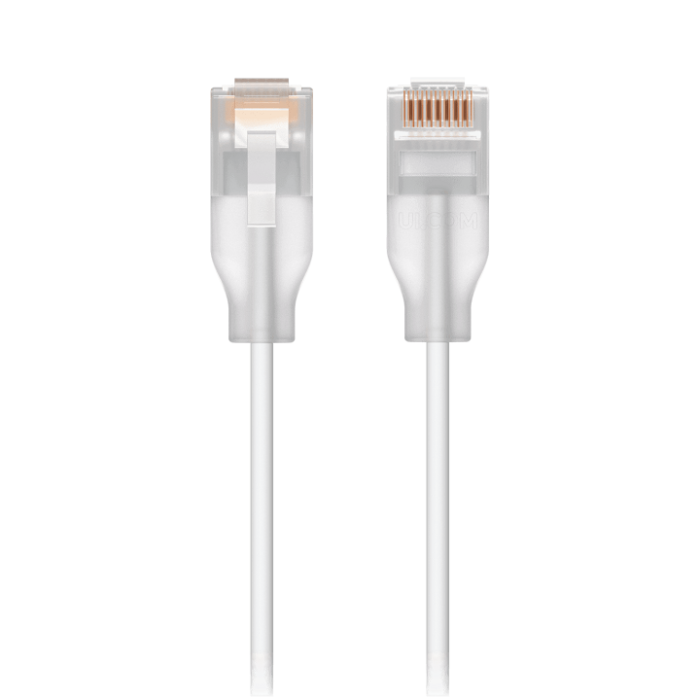

Ubiquiti UniFi Etherlighting Patch Cable - UACC-Cable-Patch-EL-12M-W
Nano-thin patch cable with 10 GbE support, designed to showcase Etherlighting effects.
Translucent booted RJ45 for optimal Etherlighting brightness
— 2.5 mm outer diameter for 0.15-8 m lengths
— 2.9 mm outer diameter for 12-15 m lengths
Length: 0.15 to 15 m
| Product Specifications | |
|---|---|
| Available Lengths |
End-to-end: 0.15, 0.3, 1, 2, 3, 5, 8, 12, 15 m (0.5, 1, 3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft) |
| Available Colors | White |
| Pack Options |
Single Unit 24-Pack (0.15 m) |
| Supported Data Rate | 10G |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Translucent booted RJ45 |
| Operating Environment | Indoor |
| Cable Construction | |
| Jacket Diameter |
0.15–8 m: 2.5 mm (0.10 in) 12–15 m: 2.9 mm (0.11 in) |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Shielding Type | UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge |
1–8 m (3–26 ft): 34 AWG 12–15 m (39–49 ft): 32 AWG |
| Minimum Bend Radius |
1–8 m: 21 mm (0.83 in) 12–15 m: 24 mm (0.94 in) |
| Flame Rating | VW-1 (UL1581) |
| Standards & Temperature Ratings | |
| Standards |
TIA/EIA-568-B.2 ISO/IEC 11801 |
| Installation Temperature | -20 to 60C (–4 to 140F) |
| Storage Temperature | -20 to 75C (–4 to 167F) |
| Operating Temperature | -20 to 60C (–4 to 140F) |
