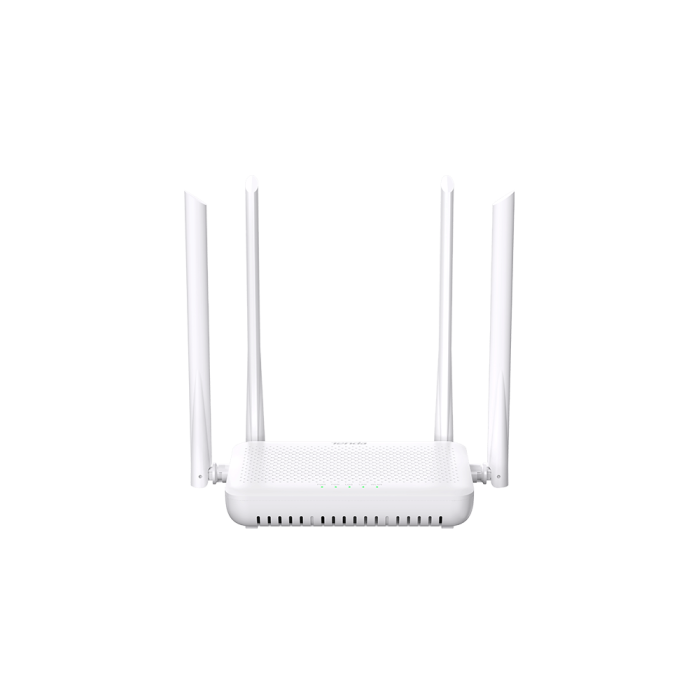

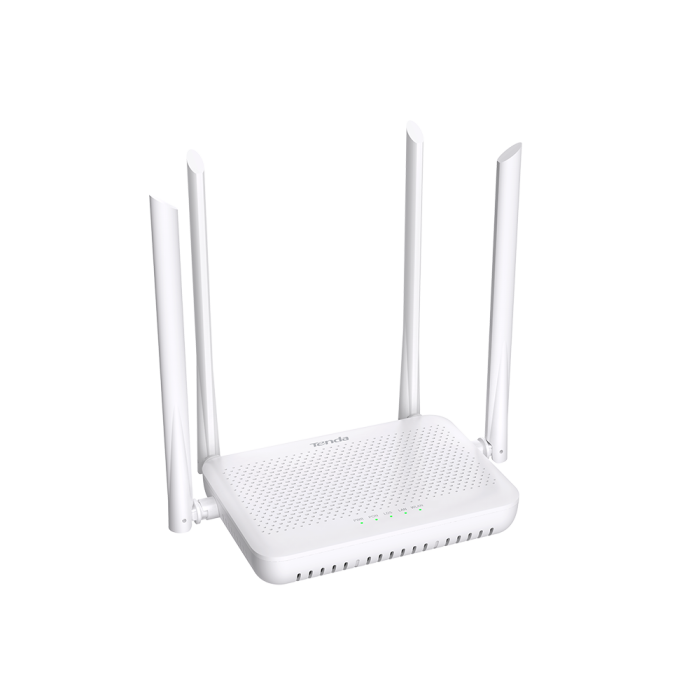

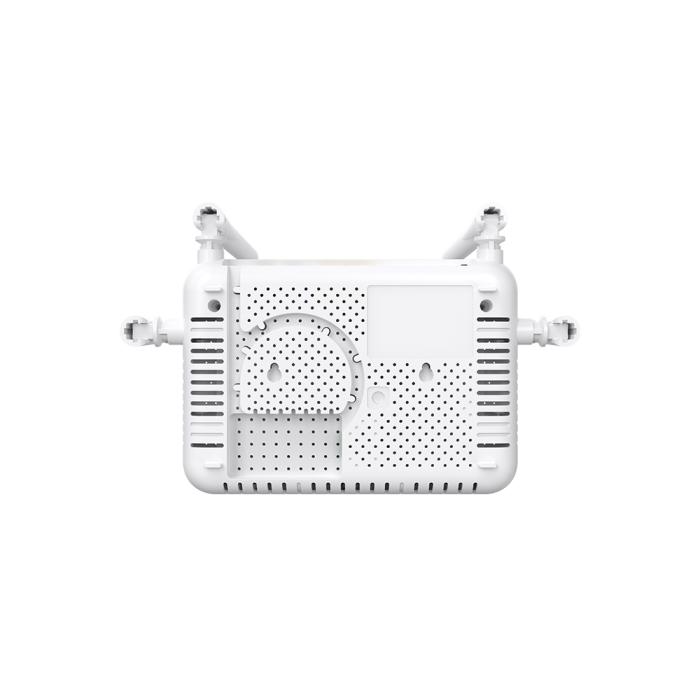

Tenda HG10C AC1200 Dualband Wi-Fi xPON ONT
- Compatibility: Huawei/ZTE/Fiberhome/Nokia and other OLTs
- Feature: Easymesh/Preset/IPTV/OMCI/TR069
- Interface: 2/4xGE LAN
- Antenna: 4x5dBi
- Speed: 2.4G:300M; 5G:867M
Hardware
IEEE Standards
IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards
GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
EPON：IEEE 802.3 ah

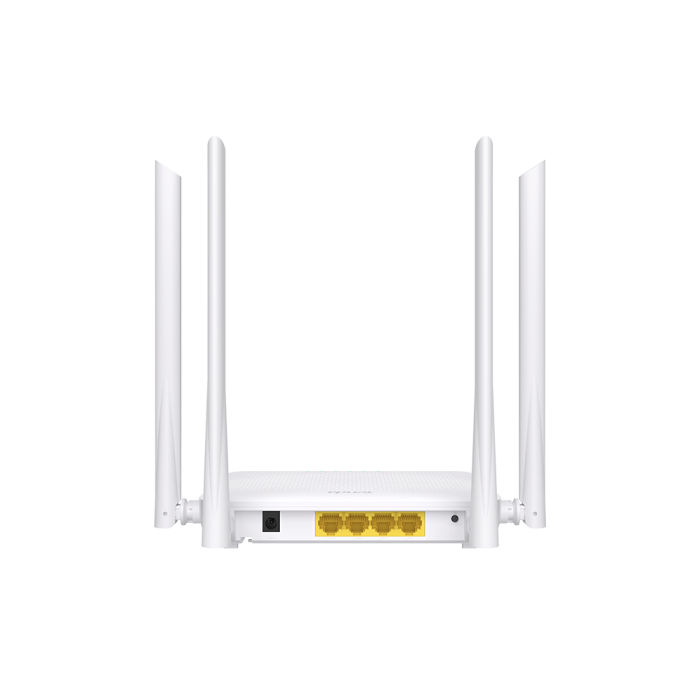

Interfaces
1 xSC/APC or SC/UPC （optional）Port
4 x1000Mbps RJ45 LAN Ports
1 xDC Power
LED Indicator
PWR, PON, LOS, LAN, WLAN
Button
1 xWPS/RST Button
Optical Mode
Class B+
Optical Wavelength
Transmit at 1310nm
Receive at 1490nm
Transmission Distance
20km Max
Bandwidth
GPON: Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
EPON: Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
Dimension
220.8×141.9×31mm（L×W×H)
TX Power
0.5-5dBm
RX Power
-28--8dBm
External Power Supply
DC 12V /1.0A
Power Consumption
<12w
Software
DHCP Server
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection
PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
Business Type
TR069, Internet, IPTV
Quality Of Service
Bandwidth Control
IP Version
IPv4, IPv6
Services
DHCP, Dynamic DNS , IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh
VPN Pass-through
PPTP, L2TP, Ipsec Pass-through
Firewall
ALG, IP Filter , Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ, DDOS
IPv6
Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics
Ping, Ping6, Tracert, Tracert6
TR069
ACS, Connection request
Wireless
Frequency
2.4GHz & 5GHz
Bandwidth
2.4G :20M/40M
5G: 20M/40M/80M
Channel Range
2.4G : CH1-CH13
5 G : CH36-CH48, CH149-CH165
Antenna
4 x 5 dBi Antenna
Easy Client Setup
WPS
Speed
11n 300M + 11ac 867M
Transmission Power
2.4G: <20 dBm(EIRP)
5G: <23dBm(EIRP)
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs
Main SSID at 2.4GHz and 5GHz
4 Guest SSIDs Both At 2.4GHz and 5GHz
Max Terminal Linked
32 at both 2.4GHz and 5GHz
Environment
Operation Temperature
0c - 45c
Storage Temperature
-40c - 70c
Operating Humidity
10% - 95% （Non-condensing）
Storage Humidity
5% - 90% (Non-condensing)
Others
Package Contents
1xHG10C, 1x Power adapter, 1x User manual, 1x RJ45 cable
Certification
CE，RoHS，Anatel
