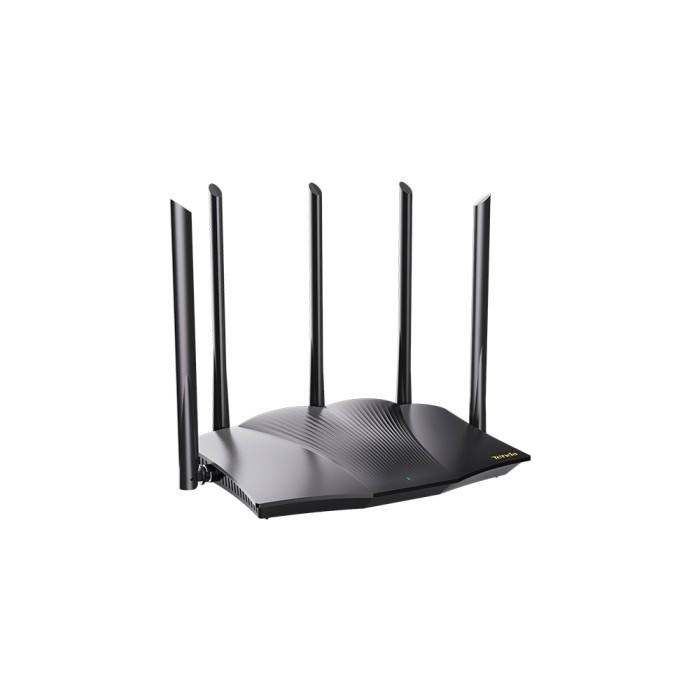

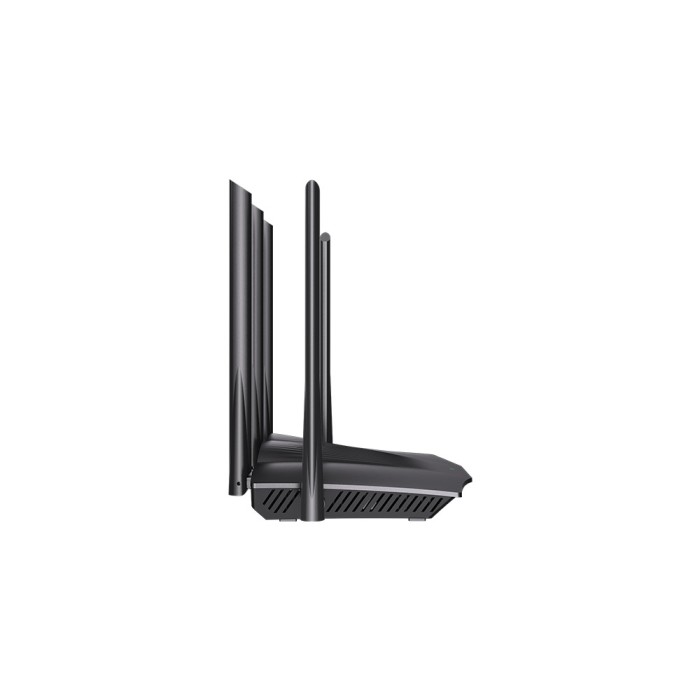

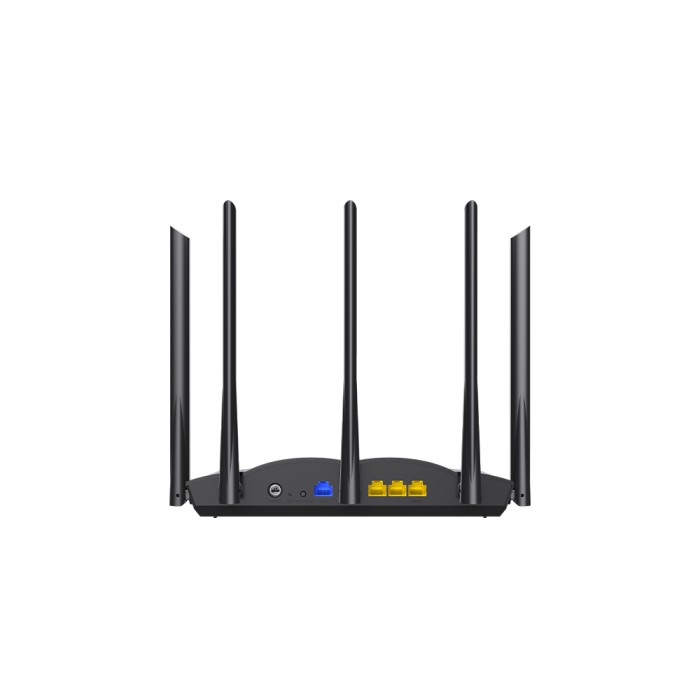

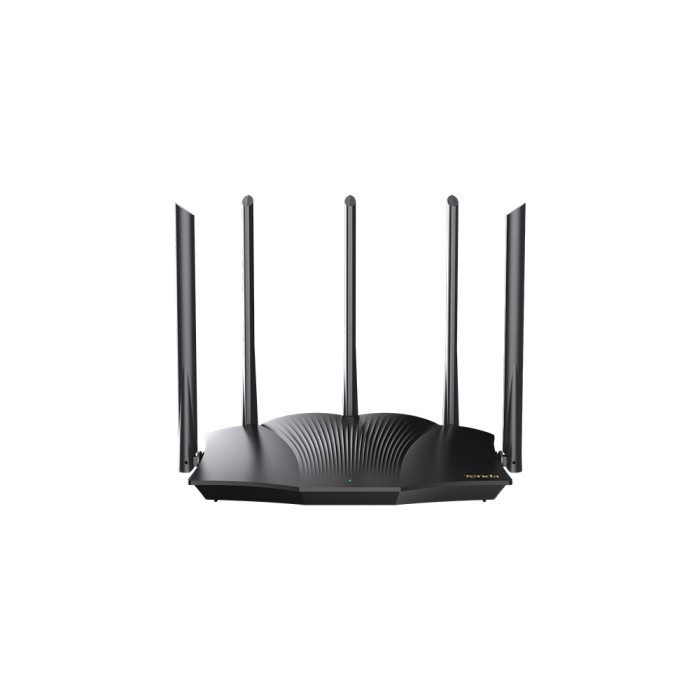

Tenda TX12 Pro V2 AX3000 Dual Band Gigabit Wi-Fi 6 Router
- MU-MIMO，OFDMA，Fast Roaming、VPN、TR069
- Max. No. of Connected Devices: 40-45
- Interface: 4*1000Mbps Ports
- Antenna: 5*6dBi
- Wi-Fi6，2.4G: 574Mbps，5G:2402Mbps
| Hardware | |
|---|---|
| IEEE802.3, IEEE802.3u, IEEE802.3ab | |
| 1 × Gigabit WAN Port 3 × Gigabit LAN Ports | |
| 5 × 6dBi external antennas | |
| 1 × WPS/Mesh button 1 × Reset button | |
| Input: AC 100-240V~50/60Hz Output: DC 12V⎓1A | |
| 1 × LED | |
| 267 × 166 × 222 mm | |
| Wireless | |
|
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
|
|
5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
|
|
CE: 2.4 GHz: 2412-2472 MHz (CH1-CH13) 5 GHz: 5150-5350 MHz (CH36-CH64) FCC: 2.4 GHz: 2412-2462 MHz (CH1-CH11) 5 GHz: 5150-5350 MHz (CH36-CH64), 5725-5850 MHz (CH149-CH165) |
|
|
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
|
|
SSID broadcasting and hiding MU-MIMO Beamforming directional transmission 160 MHz bandwidth OFDMA 1024-QAM |
|
|
WPA2-PSK WPA3-SAE/WPA2-PSK Wireless Security: Enable/Disable WPS (WiFi Protected Setup) Fast encryption |
|
| Software | |
|
PPPoE, Dynamic IP, Static IP PPPoE (Russia), PPTP (Russia), L2TP (Russia) Unify, Maxis, Maxis-special, Celcom, Digi |
|
| IPv4 & IPv6 | |
|
Router Mode AP Mode Universal Repeater Mode (Client+AP, WISP) |
|
|
Client Filter URL Filter Time Limit |
|
|
DHCP Server DHCP Client List DHCP Static IP Address Reservation and Allocation |
|
| Port Forwarding, DMZ Host, UPnP | |
|
ICMP Flood Attack Defense TCP Flood Attack Defense UDP Flood Attack Defense Block Ping From WAN |
|
| DynDNS, no-ip, oray, 88ip | |
|
IPSec Transparent Transmission PPTP Transparent Transmission L2TP Transparent Transmission PPTP VPN Server PPTP VPN Client L2TP VPN Client |
|
| Special Features & Other Functions | |
|
Wi-Fi+ (Mesh System) Smart diagnosis IPTV IPv6 Smart LED on/off |
|
|
Support App and web management Bandwidth Control Guest Network MAC Address Clone Supports blacklist and whitelist Unify 2.4 GHz & 5 GHz Static Routing Remote Web Management Backup & Restore configurations Firmware upgrade online |
|
| Environment & Package | |
| 0℃ ~ 40℃ | |
| -40℃ ~ 70℃ | |
| 10% ~ 90% RH (non-condensing) | |
| 5% ~ 90% RH (non-condensing) | |
| CE, FCC, RoHS | |
|
Wi-Fi Router × 1 RJ45 Ethernet Cable × 1 Power Adapter × 1 Quick Installation Guide × 1 |
|
