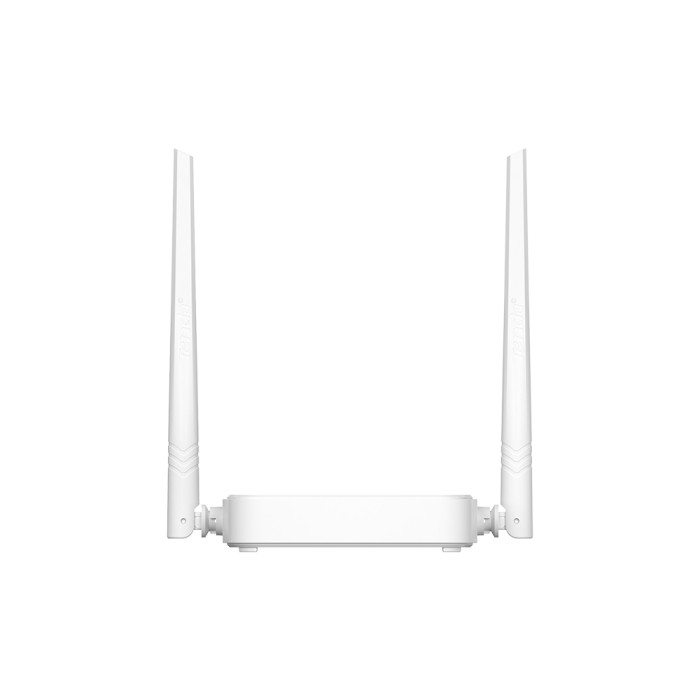

Tenda HG3 N300 Wi-Fi xPON ONT
- Compatibility: Huawei/ZTE/Fiberhome/Nokia and other OLTs
- Feature: Preset/IPTV/OMCI/TR069
- Interface: 1xGE +1xFE LAN
- Antenna: 2x5dBi
- Speed: 2.4G:300M
Hardware
IEEE Standards
IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards
GPON: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
EPON: IEEE802.3ah

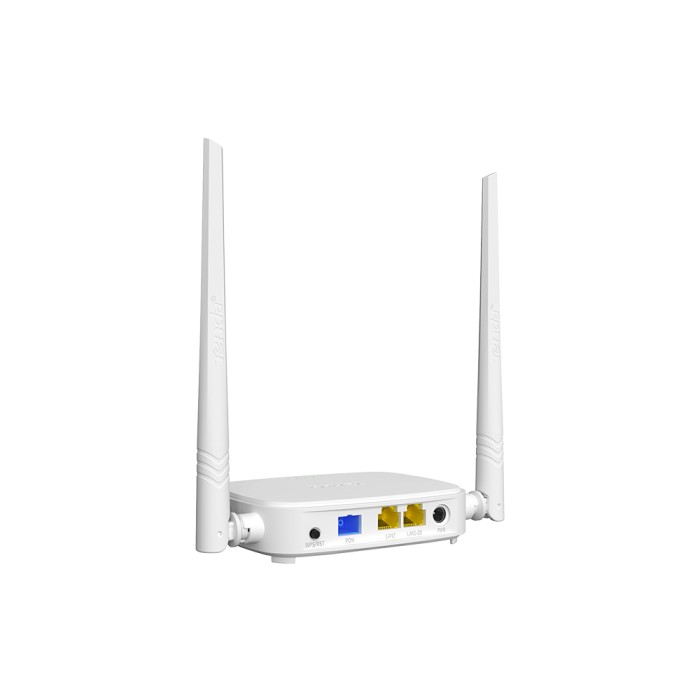

Interfaces
1xSC/APC (or UPC) Port
1x1000Mbps RJ45 LAN Port, 1x100Mbps RJ45
LAN Port, 1xDC Port
LED Indicator
1xWPS/RST Button
Button
1xWPS/RST Button
Optical Mode
Class B+
Optical Wavelength
Transmit at 1310nm, Receive at 1490nm
Transmission Distance
20km Max
Bandwidth
Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Dimension
166.6x90.5x27mm (W x D x H)
TX Power
0.5-5dBm
RX Power
-28--8dBm
External Power Supply
DC 9V /1A
Power Consumption
<9w
Software
DHCP Server
PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
WAN Connection
PPPOE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
Business Type
TR069, Internet, IPTV
Quality Of Service
Bandwidth Control
IP Version
IPv4, IPv6
Services
DHCP, Dynamic DNS , IGMP Proxy UPnP
VPN Pass-through
PPTP, L2TP, IPsec Pass-through
Firewall
ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding, DMZ
IPv6
Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics
Ping, Ping6, Tracert, Tracert6
TR069
ACS, Connection request
Wireless
Frequency
2.4GHz
Bandwidth
20M/40M
Channel Range
CH1-CH13
Antenna
2 x 5 dBi Antenna
Easy Client Setup
WPS/RST Button
Speed
11n 300M
Transmission Power
<20 dBm(EIRP)
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs
Main SSID ,4 Guest SSIDs
Max Terminal Linked
16
Environment
Operation Temperature
0c - 45c
Storage Temperature
-40c - 70c
Operating Humidity
10% - 90% (Non-condensing)
Storage Humidity
5% - 90% (Non-condensing)
Others
Package Contents
1xHG3, 1x Power adapter, 1x User Manual, 1x RJ45 cable
Certification
CE, FCC , RoHS
