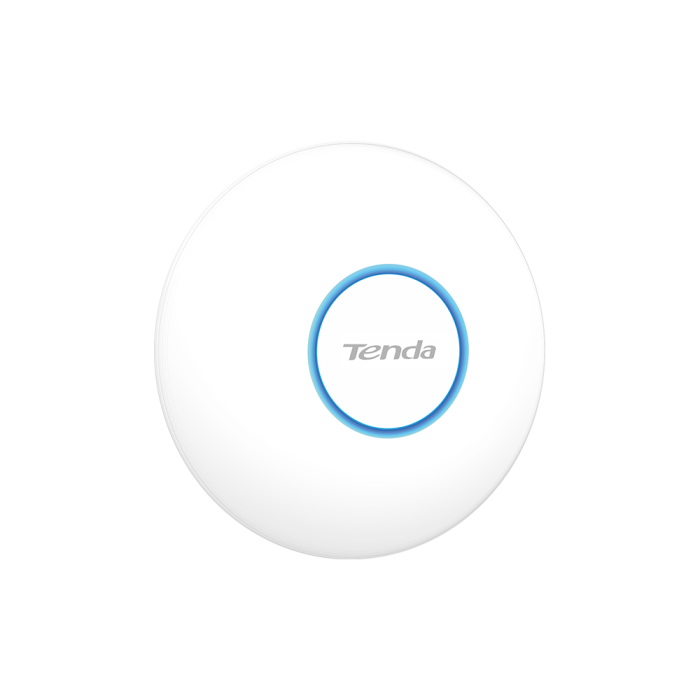

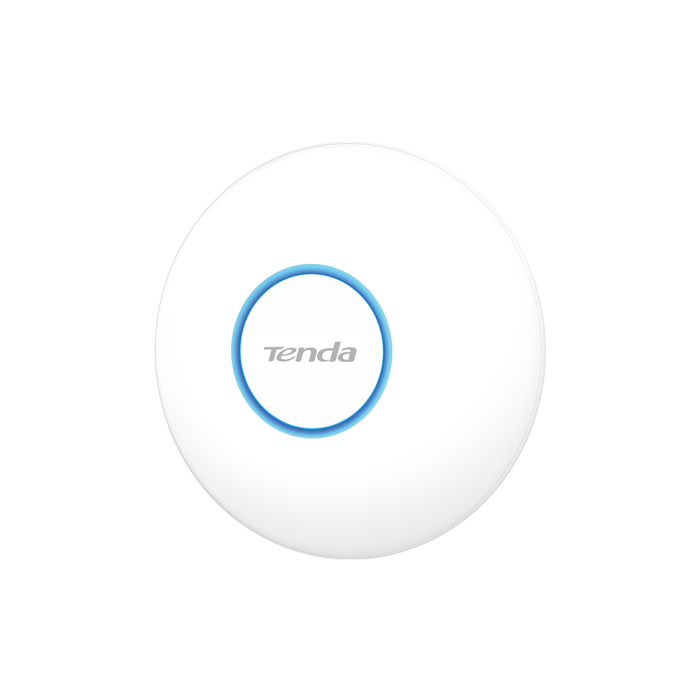

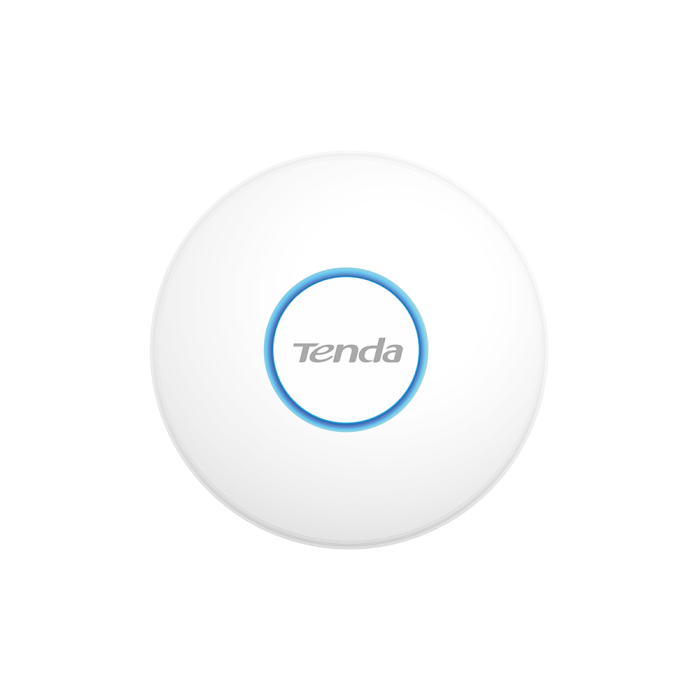

Tenda i26 AX1500 Wi-Fi 6 Dual-Band Gigabit Ceiling AP
- Tenda CloudFi cloud management
- 802.3af PoE and 24V0.5A Passive PoE
- 1xGigabit Ethernet Port
- 300 Mbps(2.4GHz)+ 1201 Mbps(5GHz)
Product Information
Model
i26
Category
Ceiling
Dimension
176x43.5 mm
Hardware
Interface
One 10/100/1000 Mbps Ethernet Port (PoE)
Button
1xReset
LED Indicator
1xSYS
Maximum Power Consumption
10.5W
Power Supply
PoE 802.3af
Max. Number of Clients
256
Recommended Clients
50
Antenna
2x4 dBi + 2x4 dBi
2.4GHz maximum power
11b mode, transmit power 22±1.5dBm
11g mode, transmit power 22±1.5dBm
11n mode, MCS7 transmit power 20±1.5dBm
5GHz maximum power
11a mode, transmit power 22±1.5dBm
11n mode, MCS7 transmit power 19±1.5dBm
11ac mode, MCS9 transmit power 15±1.5dBm
11ax mode, MCS11 transmit power 15±1.5dBm
Reception Sensitivity
2.4GHz 802.11b -98dBm
2.4GHz 802.11n (MCS7)
-77dBm
5GHz 802.11a -95dBm
5GHz 802.11n (40M-MCS7)
-76dBm
5GHz 802.11ax (80M-MCS11)
-64dBm
Frequency Range
2.4GHz&5GHz
Standard&Protocol
IEEE 802.11b/g/n/ac/ax
Maximum wireless speed
2.4GHz: 300Mbps
5GHz: 1201Mbps
Bandwidth
20MHz/40MHz/80MHz
Software
Operating Mode
AP/Client+AP
Max. No. of SSID
2.4GHz: 8
5GHz: 4
Hide SSID
Supported
OFDMA
Supported
Beamforming
Supported
Fast roaming（802.11k/v/r）
Supported
WEP
Supported
WPA-PSK
Supported
WPA2-PSK
Supported
WPA
Supported
WPA2
Supported
WPA3-ASE
Supported
Access control
Supported
Adjustable power transmit
Supported
Automatic channel
Supported
AP isolation
Supported
Guest network
Supported
Connected clients control
Supported
RSSI Threshold
Supported
Weak signal terminal elimination
Supported
Prioritize 5 GHz
Supported
VLAN tagging for SSID
Supported
LED control
Supported
MU-MIMO
Supported
Diagnostics tool
Supported
Reboot at specified interval
Supported
Schedule Reboot
Supported
Device management
Web,Router,CloudFi APP,AP Controller
System Logs
Supported
Firmware upgrade
Supported
Reboot
Supported
Reset
Supported
Backup configuration
Supported
Restore configuration
Supported
Others
Default login IP
192.168.0.254
Operation Temperature
-10C - 40C
Operating humidity
10%-90% non-condensing
Storage temperature
-30C - 70C
Storage humidity
5%-90% non-condensing
