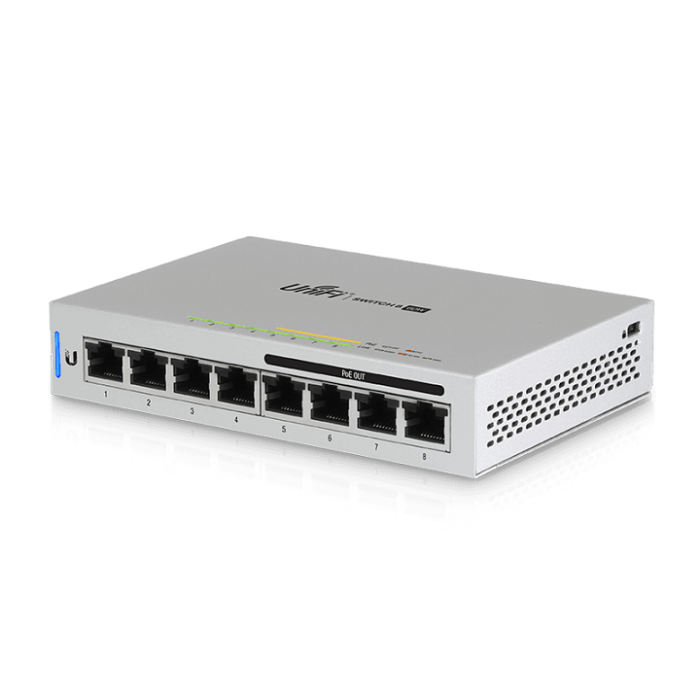

Ubiquiti US-8-60W 8 PoE (Gen1) 8-port Layer 2 PoE Switch
An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.
| Hardware Specifications | |
|---|---|
| Dimensions | 148 x 100 x 31 mm (5.8 x 3.9 x 1.2") |
| Port Layout | |
| 1 GbE RJ45 | 8 (4 PoE) (1G/100M/10M) |
| Max. PoE Output | Up to PoE |
| Total PoE Availability | 48W |
| Form Factor | Compact desktop, wall |
| Performance | |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists (IPv4) | 128 |
| Access Lists (MAC) | 128 |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| PoE Ports | PoE (4) |
| Max. PoE Wattage per Port by PSE | PoE: 15.4W |
| Max. Power Consumption | 12W (Excluding PoE output) |
| Power Method | (1) AC/DC adapter (Included) |
| Power Input Method | AC input |
| Supported Voltage Range | 44—57V DC/PoE |
| Management | Ethernet |
| Weight | 432 g (15.2 oz) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Ambient Operating Temperature | -5 to 45C (23 to 113F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network (Version 6.3.51 and later) |
