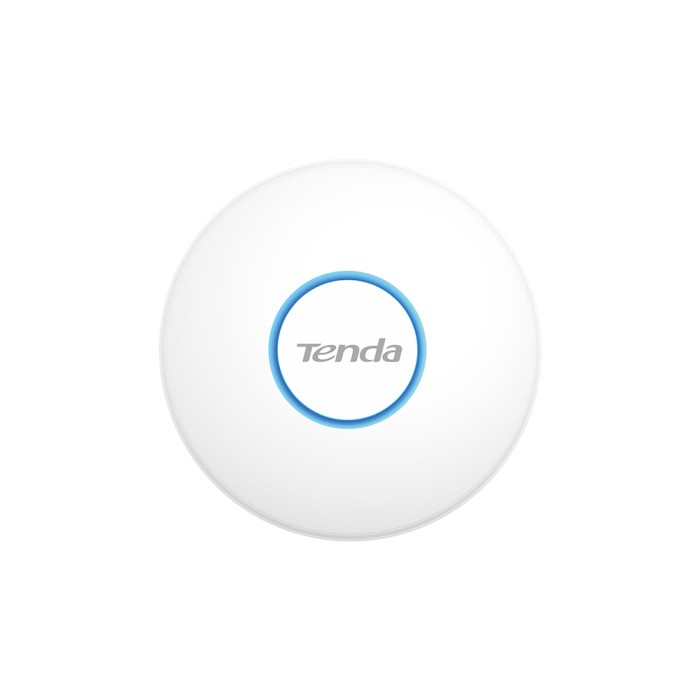

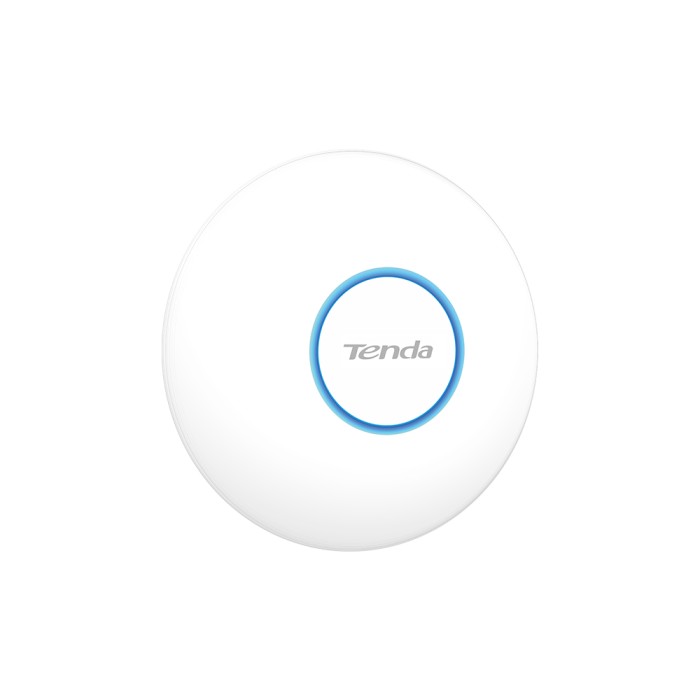

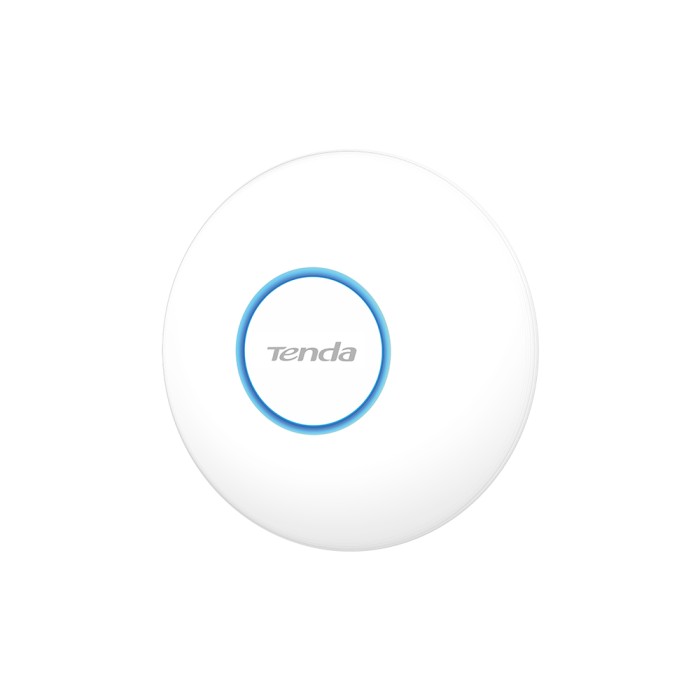

Tenda i27 AX3000 Wi-Fi 6 Ceiling Access Point
- Tenda CloudFi cloud management
- 802.3at power supply
- 1xGigabit Ethernet Port
- 574 Mbps(2.4GHz)+ 2402 Mbps(5GHz)
Product Information
Model
i27
Category
Ceiling
Dimension
176x43.5 mm
Hardware
Interface
One 10/100/1000 Mbps Ethernet Port (PoE)
Button
1xReset
LED Indicator
RGB
Maximum Power Consumption
14.04W
Power Supply
802.3at PoE
Max. Number of Clients
254
Recommended Clients
56
Antenna
2x4 dBi
2.4GHz maximum power
23+/-1.5 dBm
5GHz maximum power
23+/-1.5 dBm
Reception Sensitivity
2.4GHz 802.11b -99dBm
2.4GHz 802.11n (MCS7)
-78dBm
5GHz 802.11a -97dBm
5GHz 802.11n (MCS7)
-77dBm
Frequency Range
2.4GHz&5GHz
Standard&Protocol
IEEE 802.11a/b/g/n/ac/ax
Maximum wireless speed
2.4GHz: 574 Mbps
5GHz: 2402 Mbps
Bandwidth
20MHz/40MHz/80MHz/160MHz
Software
Operating Mode
AP/Client+AP
Max. No. of SSID
2.4GHz: 8
5GHz: 8
Hide SSID
Supported
OFDMA
Supported
Beamforming
Supported
Fast roaming（802.11k/v/r）
Supported
WEP
Supported
WPA-PSK
Supported
WPA2-PSK
Supported
WPA
Supported
WPA2
Supported
WPA3-ASE
Supported
Access control
Supported
Adjustable power transmit
Supported
Automatic channel
Supported
AP isolation
Supported
Guest network
Supported
Connected clients control
Supported
RSSI Threshold
Supported
Weak signal terminal elimination
Supported
Prioritize 5 GHz
Supported
VLAN tagging for SSID
Supported
LED control
Supported
MU-MIMO
Supported
Diagnostics tool
Supported
Reboot at specified interval
Supported
Schedule Reboot
Supported
Device management
M3 or Tenda Router with AP Controller feature
System Logs
Supported
Firmware upgrade
Supported
Reboot
Supported
Reset
Supported
Backup configuration
Supported
Restore configuration
Supported
Others
Default login IP
192.168.0.254
Operation Temperature
-10C - 45C
Operating humidity
(10% - 90%) RH, non-condensing
Storage temperature
-30C - 70C
Storage humidity
(10% - 90%) RH, non-condensing
