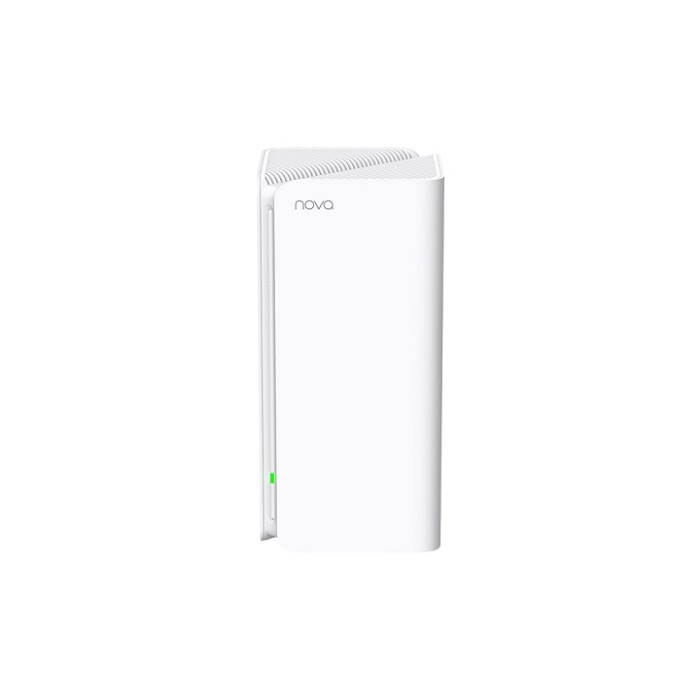

Tenda MX15 Pro AX5400 Dual-Band Whole Home Wi-Fi 6 Mesh
- AP/Band Steering，Auto Path Seletion，Fast Roaming，Wi-Fi+
- Max. No. of Connected Devices: 65
- Interface: 3*1000Mbps Ports
- Antenna: 6*3dBi Internal Antennas
- Wi-Fi6，2.4G:574Mbps，5G:4804Mbps
| Hardware Specifications | |
|---|---|
| IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | |
| 1.5GHz Tri-core | |
| 256MB | |
| 3 × 10/100/1000Mbps RJ45 ports per node | |
| 6 × 3dBi Internal antennas | |
| 1 × Reset, 1 × MESH | |
| AC 100–240V, 50/60Hz | |
| DC 12V ⎓ 1.5A | |
| 1 × Tri-color LED | |
| 105 × 105 × 200mm (4.13 × 4.13 × 7.87 in) | |
| Wireless Specifications | |
| 5GHz: IEEE 802.11ax/ac/n/a 2.4GHz: IEEE 802.11ax/n/b/g | |
| 2.4GHz: 574Mbps 5GHz: 4804Mbps | |
| 2.4GHz & 5GHz | |
|
CE: <20 dBm (2.4GHz), <23 dBm (5GHz) FCC: <30 dBm (2.4GHz & 5GHz) |
|
| Beam Forming, MU-MIMO, AP Steering, Band Steering, OFDMA, 1024-QAM | |
| WPA2-PSK, WPA3-SAE/WPA2-PSK | |
| Software Features | |
| PPPoE, Dynamic IP, Static IP, PPPoE (Russia), PPTP (Russia), L2TP (Russia) | |
| IPv4 & IPv6 | |
| Router Mode, AP Mode | |
| Client Filter, URL Filter, Time Limit | |
| DHCP Server, DHCP Client List | |
| Port Forwarding, DMZ Host, UPnP | |
| Block TCP/UDP Flood Attacks | |
| PPTP Server, PPTP/L2TP Client | |
| Supports manual DNS configuration | |
| Special & Other Features | |
| Ethernet Backhaul, IPv6, IPTV | |
| App & Web Management, Guest Network, Online Firmware Upgrade | |
| Environmental | |
| 0℃ ~ 40℃ | |
| -40℃ ~ 70℃ | |
| 10% ~ 90% RH (non-condensing) | |
| 5% ~ 90% RH (non-condensing) | |
| CE, FCC, RoHS | |
| Mesh15X ×1, Quick Installation Guide ×1, Gigabit Ethernet Cable ×1, 12V/1.5A Power Adapter ×1 | |
