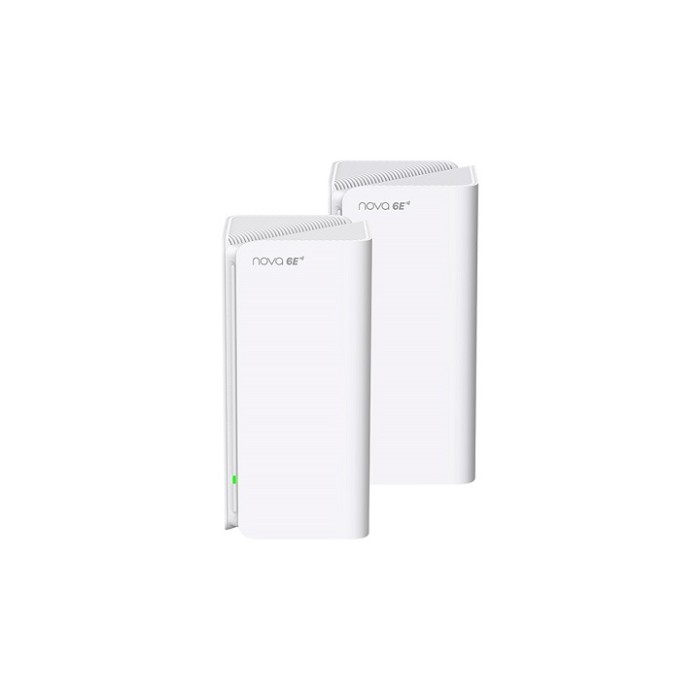

Tenda MX21 Pro AXE5700 Whole Home Mesh Wi-Fi 6E System - 2-Pack
- AP/Band Steering，Auto Path Seletion，Fast Roaming，Wi-Fi+
- Max. No. of Connected Devices: 50
- Interface: 3*1000Mbps Ports
- Antenna: 7*3dBi Internal Antennas
- Wi-Fi6E，2.4G: 861Mbps，5G:2402Mbps，6G 2402Mbps
| Hardware Specifications | |
|---|---|
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| CPU | 1.7GHz Quad-core CPU |
| RAM | 256MB |
| Interface | 3 × 10/100/1000Mbps RJ45 ports per node |
| Antenna | 7 × Built-in Antennas |
| Buttons | 1 × WPS/Mesh button, 1 × Reset button |
| Power Input | AC 100-240V ~ 50/60Hz |
| Power Output | DC 12V ⎓ 2.5A |
| LED Indicator | 1 × LED |
| Dimension | 105 × 105 × 220mm (4.13 × 4.13 × 8.66 in) |
| Wireless Specifications | |
| Wireless Standard |
6GHz: IEEE 802.11ax 5GHz: IEEE 802.11ax/ac/n/a 2.4GHz: IEEE 802.11ax/n/b/g |
| Data Rate |
6GHz: 2402Mbps (802.11ax, HE160) 5GHz: 2402Mbps (802.11ax, HE160) 2.4GHz: 861Mbps (802.11ax) |
| Frequency | 2.4GHz, 5GHz & 6GHz |
| Transmission Power |
CE: <20dBm (2.4 GHz) <23dBm (5 GHz) <23dBm (6 GHz) |
| Basic Functions | MU-MIMO, OFDMA, 1024-QAM, Beamforming, AP Steering, Band Steering |
| Wireless Security |
WPA2-PSK, WPA3-SAE/WPA2-PSK Enable/Disable Wireless Security WPS (Wi-Fi Protected Setup) fast encryption |
| Software Features | |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP, PPPoE (Russia), PPTP (Russia), L2TP (Russia) |
| Network Protocol | IPv4 & IPv6 |
| Operating Mode | Wireless Router Mode, AP Mode |
| Parental Control | Client Filter |
| DHCP | DHCP Server, DHCP Client List |
| Virtual Server | Port Forwarding, UPnP |
| Firewall | ICMP, TCP, UDP Flood Attack Defense; Block Ping from WAN |
| VPN |
IPSec Transparent Transmission PPTP Transparent Transmission L2TP Transparent Transmission PPTP VPN Server/Client L2TP VPN Client |
| DNS | DynDNS, no-ip, oray, 88ip |
| Special & Other Features | |
| Special Features | Speed Test, Monthly Report |
| Other Functions | IPTV, IPv6, Tri Frequency In One, Bandwidth Control, Guest Network, Static Routing, System Log, Remote Web Management, MAC Clone, Backup & Restore Configurations, Support Automatic Access Detection, Firmware Upgrade Online |
| Environmental | |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
| Certification | CE, FCC, RoHS |
| Package Contents |
Mesh21XEP × 2 Quick Installation Guide × 1 Gigabit Ethernet Cable × 1 12V/2.5A Power Adapter × 2 |
