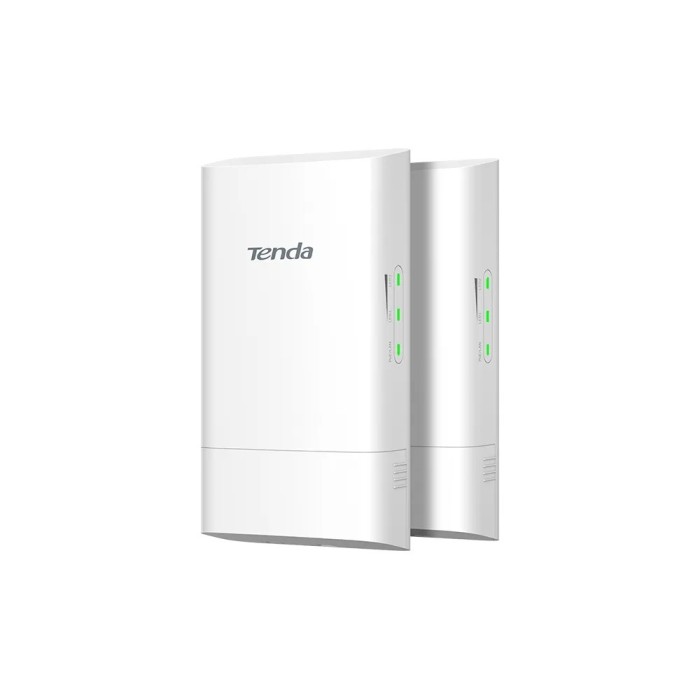

Tenda O1-5G 5GHz 9dBi 11AC 867Mbps Outdoor CPE - 2-pack
- 12V 1A DC/12V 1A Passive PoE supported
- IP65 waterproof enclosure
- One Fast Ethernet Port
- 9dbi directional antenna
- 5GHz 11AC 867Mbps
Product Information
Model
O1-5G
Dimension
132x72x46.3mm
Deployment
Pole/Wall Mount
Application Scenarios
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range
5GHz
Compliant Standards
IEEE 802.11a/n/ac
Maximum Wireless Rate
867Mbps
Interfaces
1x10/100Mbps LAN Port
Antenna Polarization
Dual Polarization
Antennas Gain
9dBi
Antenna Beamwidth
Horizontal: 30 Vertical: 30 Elevation: 30
Reset Button
1xReset Button
Power Consumption
4.7W
Waterproof Level
IP65
LED Indicator
PoE/LAN,LED1,LED2
Power Method
12V 1A Passive PoE
12V 1A DC
Passive PoE
Passive power over ethernet via PoE/LAN (+4,5pins,-7,8pins )
up to 60 meters
Voltage range: 9-13V DC
Reception Sensitivity
11a 6Mbps -92dBm+1.5dBm
11n MCS7 HT20 -72dBm+1.5dBm
11ac MCS9 HT80 -64dBm+1.5dBm
Software
Operating mode
AP/Station
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
Wireless Client isolation
Support
Channel Bandwidth
20/40/80MHz
Channel Shift
Support
Client Limitation For SSID
Support
Wireless Access Control
Support
Transmission Power
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK
Transparent Bridge
Support
VPN Pass-Through
PPTP,L2TP
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Time and Date Setting
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs
Support
Managed By Controller
PC Software -- CPE Assistant
Others
Operation Temperature
-30C - 60C
Storage Temperature
-40C - 70C
Operating Humidity
10%-90% non-condensing
Storage Humidity
10%-90% non-condensing
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification
FCC/CE/RoHS
