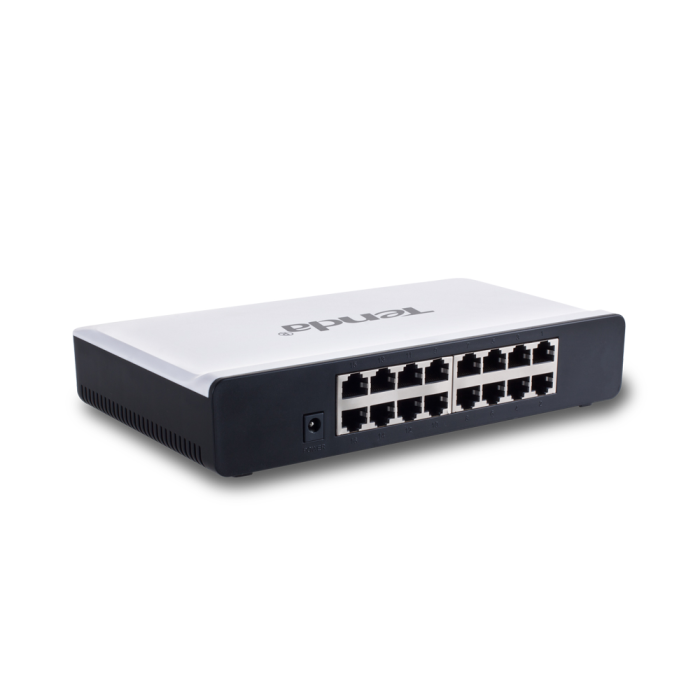

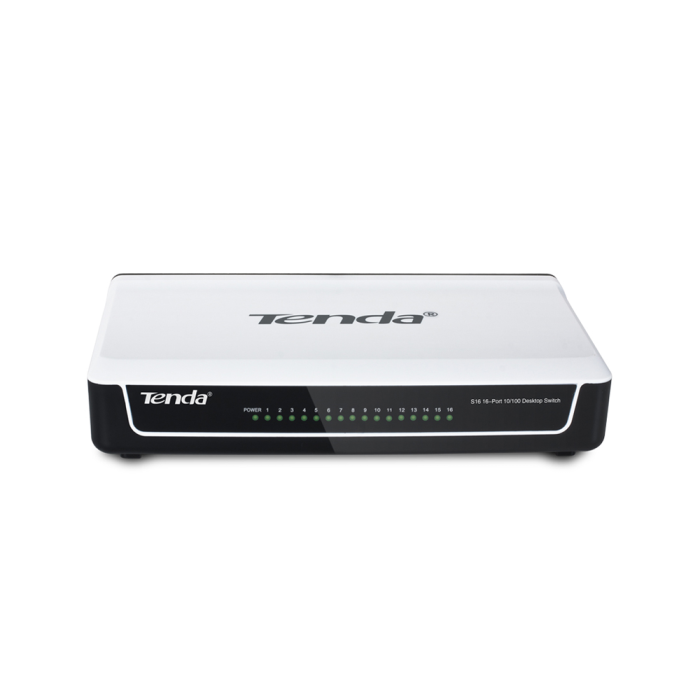

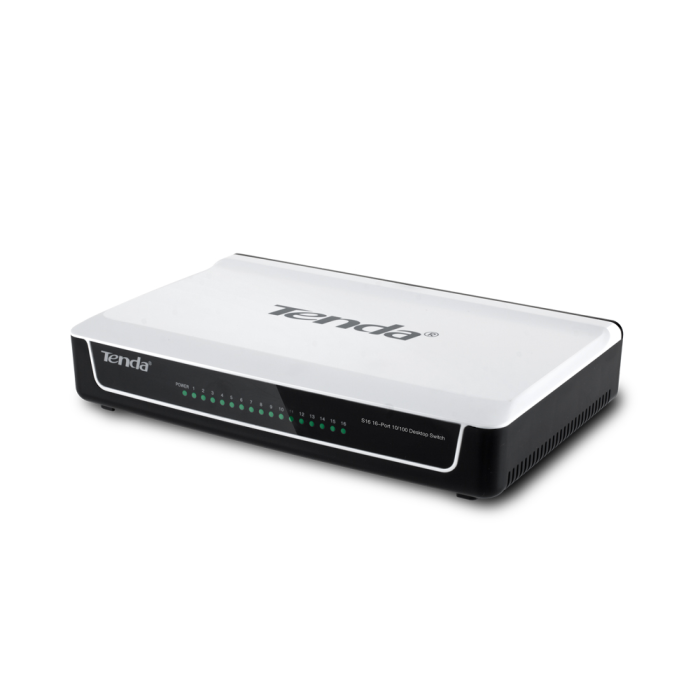

Tenda S16 16-Port 10/100 Desktop Switch
- Desktop mounting & Wall mounting
- Equipped with plastic shell,Mini and fashionable design
- 16×10/100Mbps RJ-45 ports
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
LED Indicator
1x Power, 16x Link/Act
Interfaces
16x10/100 Base-TX Ethernet ports (Auto MDI/MDIX)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
218.0mmx135.0mmx41.6mm
Material
Plastic
Level of protection
ESD:
Air discharge: +8kV
Contact discharge: +6kV
Forwarding mode
Store-and-forward
Switch capacity
3.2Gbps
Packet forwarding rate
2.38Mpps
Buffer
1.25Mb
MAC address table
4K
Power
Input: 100-240V AC 50/60Hz
Output: 9V 0.6A (External power adapter)
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0C - 45C
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification
CE, FCC, RoHS
Software
Protocols
CDMA/CD
MAC address learning
Auto-Learning and Auto-Aging
Funtions
plug-and-play
