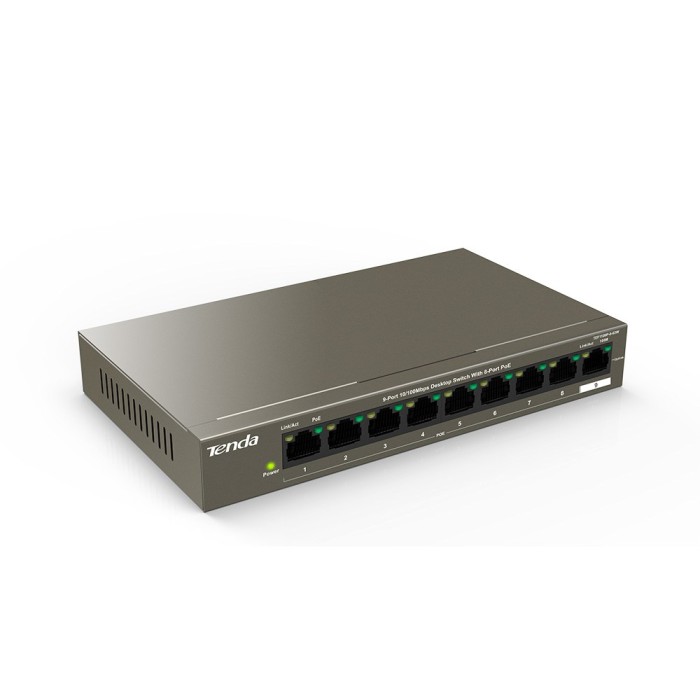

Tenda TEF1109P-8-63W 9-Port 10/100Mbps Desktop Switch With 8-Port PoE
- Supports desktop and wall-mounting
- Support two modes of Standard,Extend
- Single port output power 30W,maximum output power 58W
- 8xPoE+ 10/100Mbps RJ45 ports,1x10/100Mbps RJ45 port
Hardware
Network standards
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
LED Indicator
9 x Link/Ack LED indicators
1 x Power LED indicator
Interfaces
8x10/100 Base-TX Ethernet ports (Data/Power)
1x10/100 Base-TX Ethernet ports (Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
177.5mmx104.0mmx26.0mm
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1.8 Gbit/s
Packet forwarding rate
1.34Mpps
Buffer
1.25Mb
MAC address table
4K
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Input voltage
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
