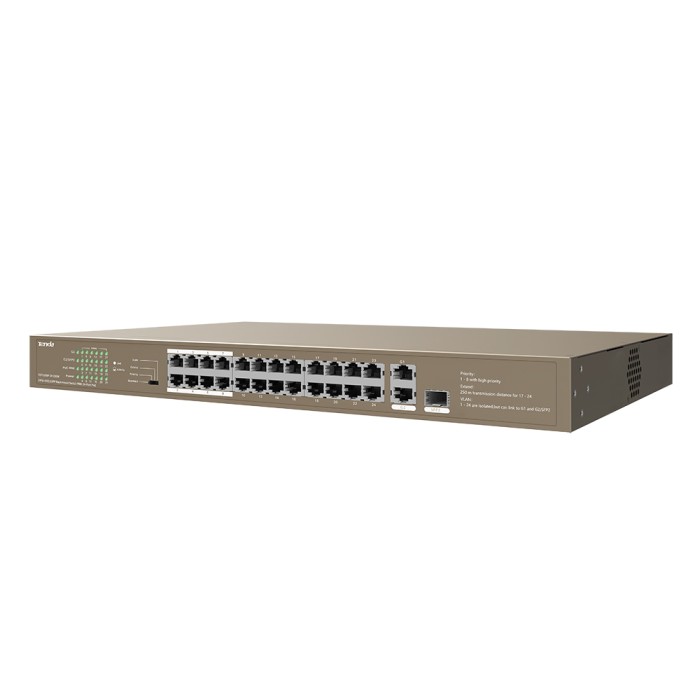

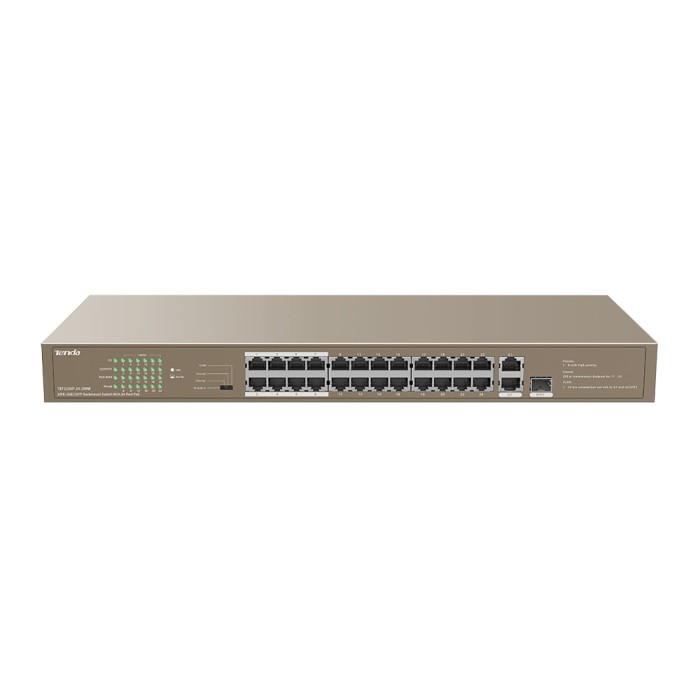

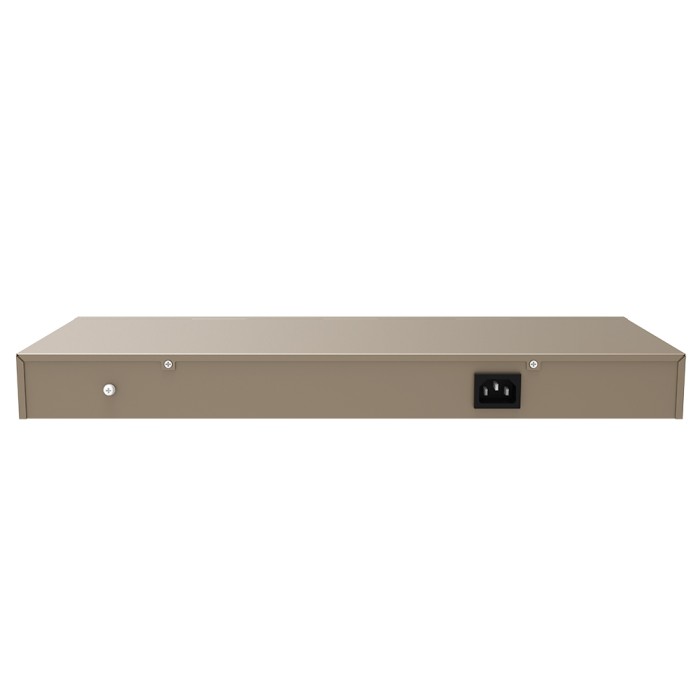

Tenda TEF1126P-24-250W 24FE+2GE/1SFP Rackmount Switch With 24-Port PoE
- Supports desktop and rack mounting
- Support four modes of Standard, Priority,Extend and VLAN
- Single port output power 30W,maximum output power 230W
- 2xGigabit RJ45 ports and 1×combo SFP slot
- 24xPoE+ 10/100Mbps RJ45 ports
Hardware
Network standards
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
LED Indicator
24 x Link/Act LEDs
1 x G1 LED
1 x G2/SFP2 LED
1 x PoE-MAX LED
1 x Power LED
Interfaces
24 x 10/100 Base-TX Ethernet ports (Data/Power)
2 x 10/100/1000 Base-T Ethernet ports (Data)
1 x 1000 Base-X SFP port (Combo)
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
1
Dimension
440.0mmx178.8mmx44.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
8.8 Gbps
Packet forwarding rate
6.55 Mpps
Buffer
4M
MAC address table
16K
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 230W
Input voltage
100-240V AC 50/60Hz
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC、CE、RoHS
