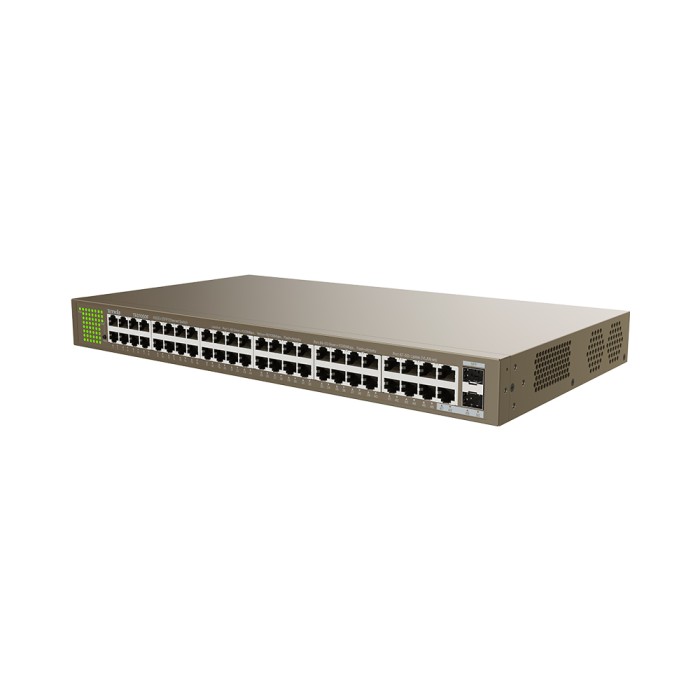

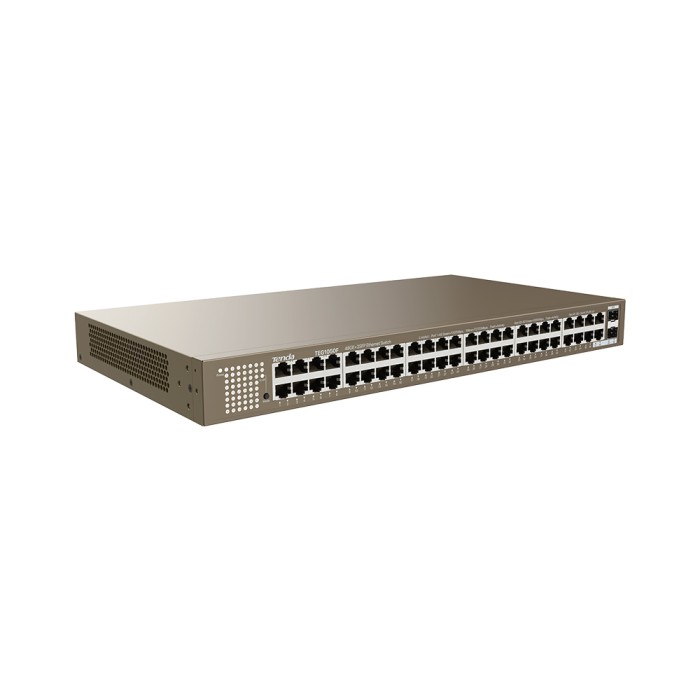

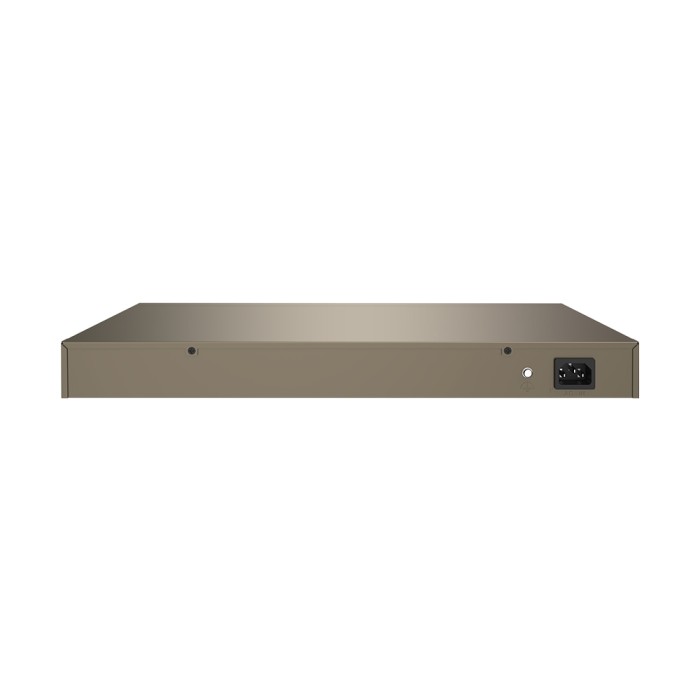

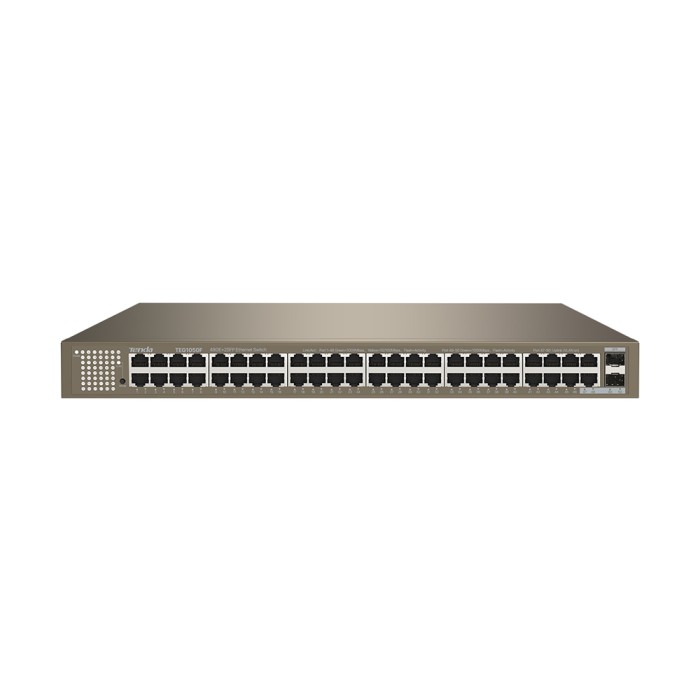

Tenda TEG1050F 48GE+2SFP Ethernet Switch
- Feature a 19-inch/1U standard rack-mount shell design
- One-key VLAN function helps isolate broadcast storms effectively
- 48×Gigabit RJ45 ports and 2×SFP slots
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
LED Indicator
1x Power,50x Link/Act,1xVLAN
Interfaces
48x10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)
2x1000 Base-X SFP ports (Independent)
Transmission media
Recommended: CAT5/5e UTP or better
Dimensions
440.0mmx240.0mmx44.0mm
Material
Metal
Level of protection
Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: +10kV
Contact discharge: +8kV
Forwarding mode
Store-and-forward
Switch capacity
100Gbps
Forwarding rate
74.4Mpps
Buffer
12Mb
MAC address table
16K
Power method
Input: 100 - 240V AC 50/60Hz
Output: 12V 4A
Power consumption
Max:<48W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting : support
Environment
Operating temperature: 0C - 45C
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certifications
CE, FCC, RoHS
Funtions
One-key VLAN (In this mode, ports 1 to 46 cannot communicate with each other, but can communicate with ports 47 to 50.)
