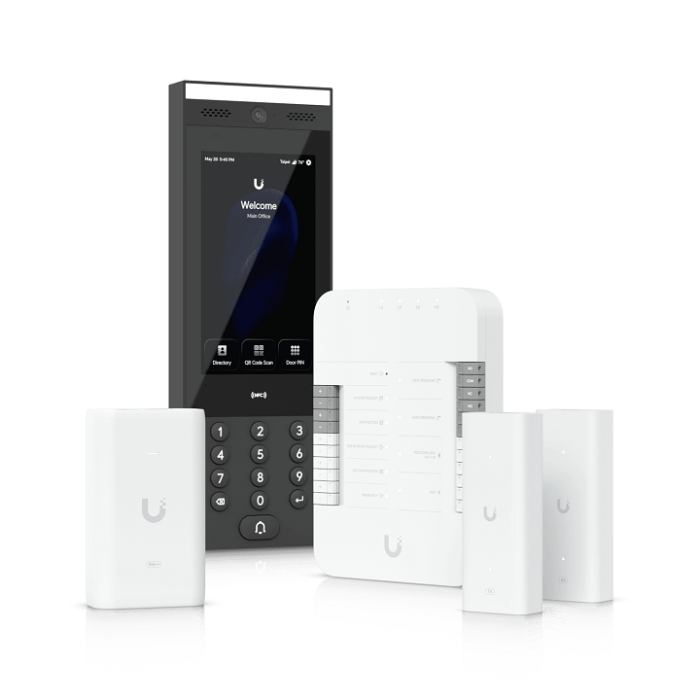

Ubiquiti G3 Gate Starter Kit - UA-G3-SK-Gate-EU
Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.
| In the Box | |
|---|---|
| (1) | Gate Hub |
| (1) | G3 Intercom |
| (1) | PoE++ Adapter |
| (2) | 2-wire Retrofit Extenders |
| Touch Pass | 10 free 1-year Touch Passes included |
| Gate Hub | |
|---|---|
| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") |
| Supported Doors | 1 gate, 1 side door |
| Maximum User Count | 6,000 |
| Input Terminals | (1) Gate exit request (1) Gate position (1) Side door exit (1) Side door position (1) Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Enclosure Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Indoor/Outdoor Use | Indoor only (device itself) Outdoor with waterproof junction box |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Ambient Operating Temperature | -30 to 60 C (-22 to 104 F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated) |
| Max. Power Consumption | 22W (Without PoE output) 60W (With PoE output) |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry Output Relay | (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| LEDs | W/B Learn More |
| Button | (1) Factory-reset |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-Hub-Gate, V01 |

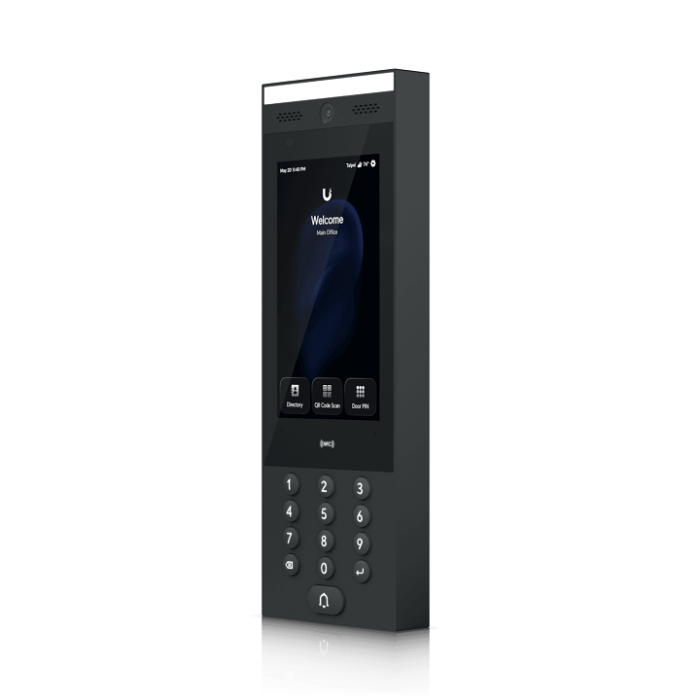

| G3 Intercom | |
|---|---|
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Integrated Camera | ✓ |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell Access | ✓ |
| Weatherproofing | IP65 |
| NDAA Compliant | ✓ |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, gooseneck adapter (Included) Flush mount/sunshield (Optional) |
| Indoor/Outdoor Use | ✓ |
| Display | 177 mm (7") diagonal, 1024 x 600 px, capacitive multi-touch, 1000 nits (typical) |
| Microphone / Speaker | ✓ / 2W |
| Connectivity | BLE 4.2, NFC |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | PoE (UL 294 Power-limited Class 2 PSU) |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Ambient Operating Temperature | -30 to 60 C (-22 to 140F) |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number | UA-G3-Intercom, V01 |

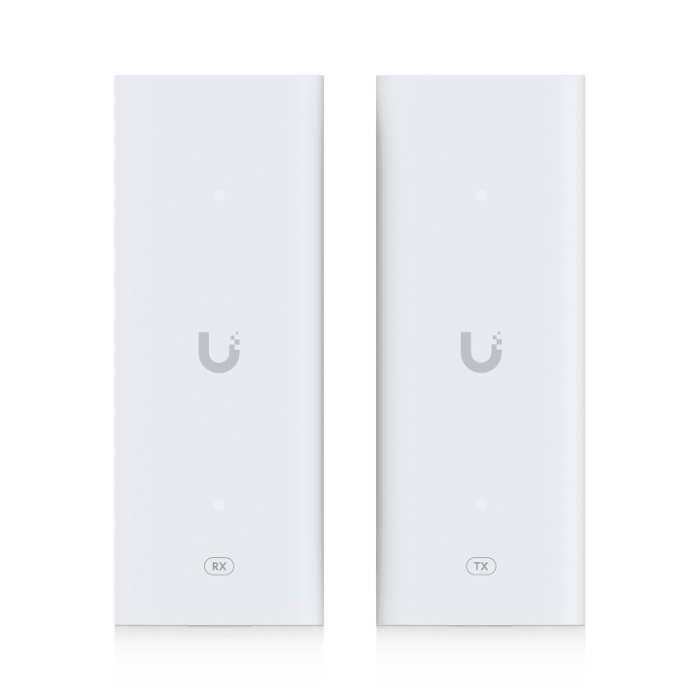

| Retrofit Extender | |
|---|---|
| Dimensions | PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") |
| Enclosure / Mount Material | Polycarbonate |
| Networking Interface | (1) 10/100 MbE (1) Homeplug AV |
| Power Method | PoE++ |
| PoE Interface | PoE in: (1) PoE++, 50V DC, 1.2A PoE out: (1) PoE+, 48V DC, 0.6A |
| Max. Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: +8kV Contact: +4kV |
| LEDs | White |
| Ambient Operating Temperature | -10 to 40 C (14 to 104 F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |

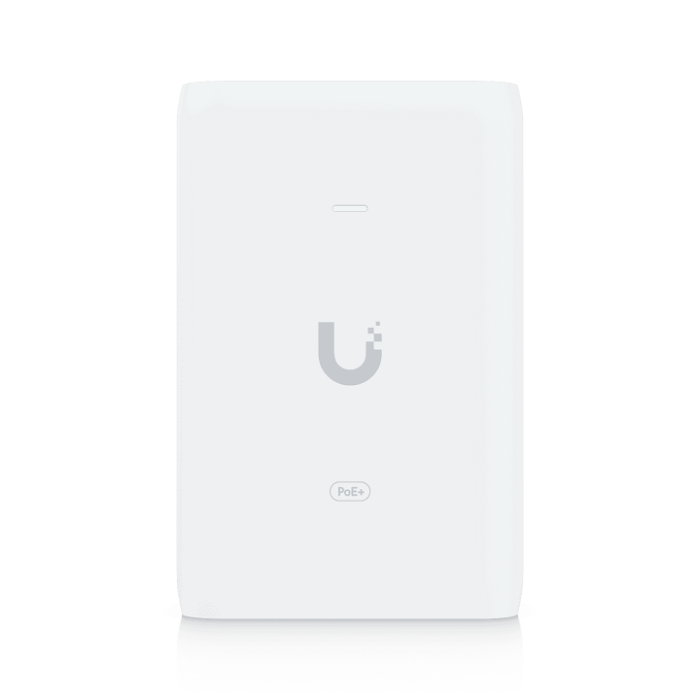

| PoE++ Adapter | |
|---|---|
| Model | U-PoE++ |
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC 1.25A |
| Rated Voltage | 100–240V AC 50/60Hz |
| Input Current | 1.3A 120V AC 0.75A 230V AC |
| Efficiency | 85+% |
| 4-Pair Powering | Pins 1,2,4,5 (+) and 3,6,7,8 (−) |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Max. PoE+ Wattage per Port | 60W |
| Ambient Operating Temperature | 0 to 40 C (32 to 104 F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| NDAA Compliant | ✓ |
