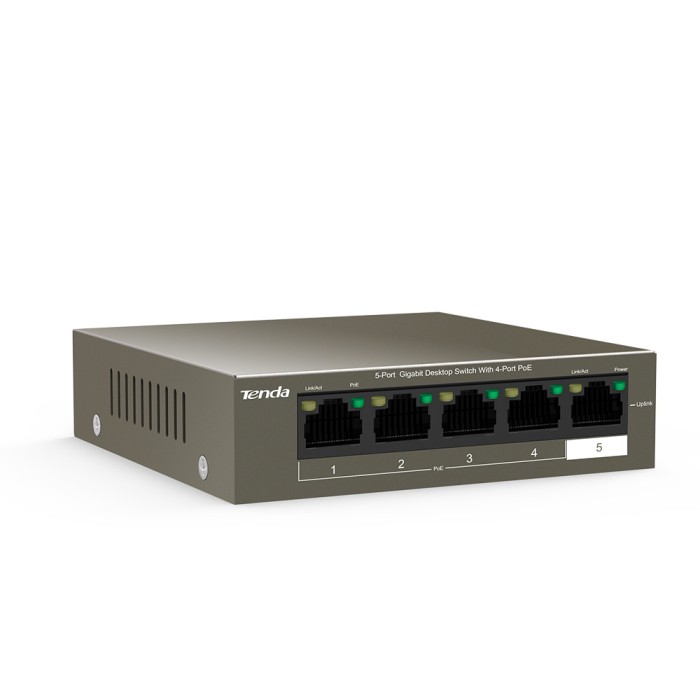

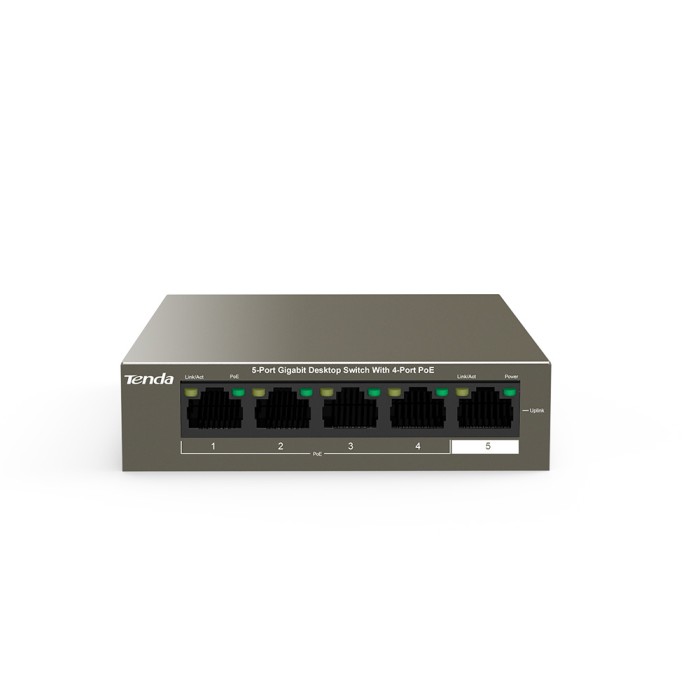

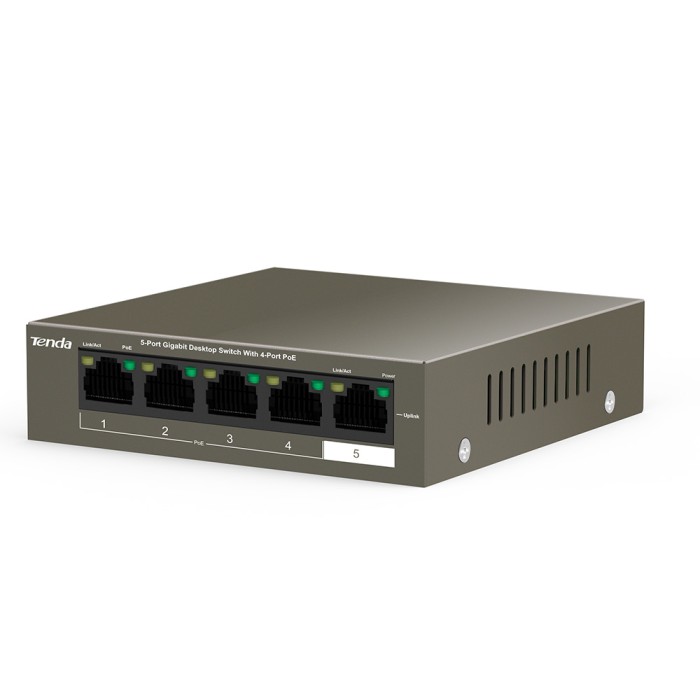

Tenda TEG1105P-4-63W 5-Port Gigabit Desktop Switch with 4-Port PoE
- Supports desktop and wall-mounting
- Support two modes of Standard and VLAN
- Single port output power 30W,maximum output power 58W
- 4xGigabit PoE+ RJ45 ports,1xGigabit RJ45 port
Hardware
Network standards
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
LED Indicator
5x Link/Ack LED indicators
1 x Power LED indicator
Interfaces
5x10/100/1000 Base-T Ethernet
Ports(Data/Power)
1x10/100/1000 Base-T Ethernet Port(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
100.0mmx100.0mmx27.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
10 Gbps
Packet forwarding rate
7.44Mpps
Buffer
1M
MAC address table
2K
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Input voltage
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

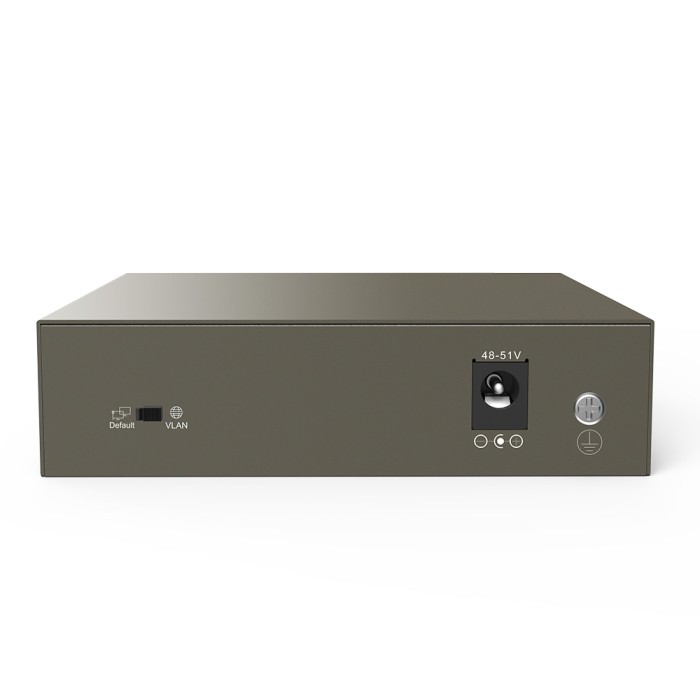

VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。
