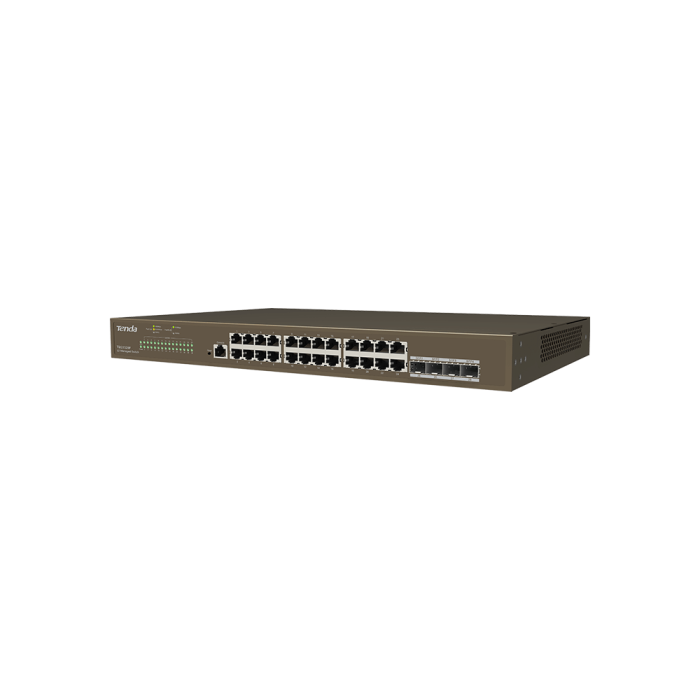

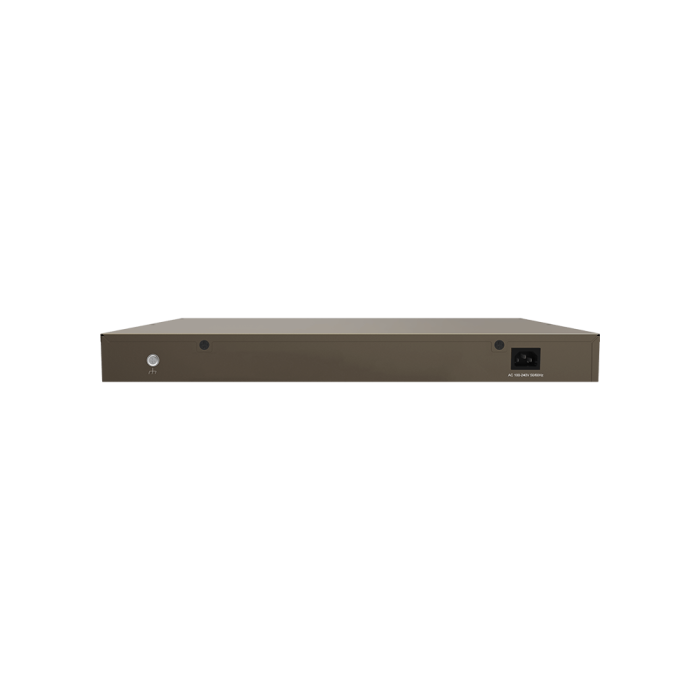

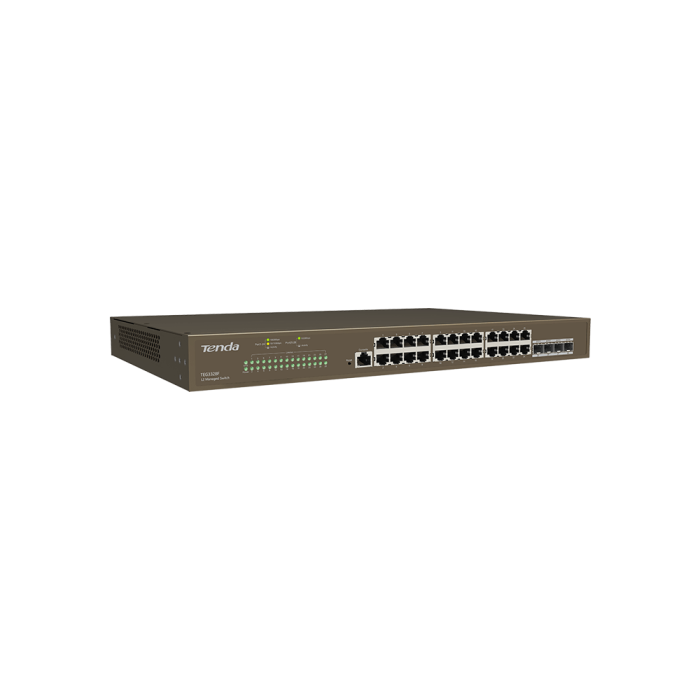

Tenda TEG3328F L2 Managed Switch
- Supports web management and maintenance
- Layer-2 managed switch design
- 24xGigabit RJ45 ports and 4xSFP slots
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
LED Indicator
One Link/Act LED indicator for each port
One Power LED indicator for each device
One SYS LED indicator for each device
Interfaces
24x10/100/1000 Base-T Ethernet ports
4x1000 Base-X SFP ports
1xConsole port
Transmission media
Recommended: CAT5/5e UTP or better
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
56Gbps
Packet forwarding rate
41.70Mpps
Buffer
12Mb
MAC address table
16K
Jumbo frame
10K
Input voltage
100-240V AC 50/60Hz
Power consumption
Full load: ＜24W
Empty load: ＜10W
Dimension
440 mm x 179.6 mm x 44 mm
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Energy Efficient
Support
Environment
Operating temperature: 0C - 45C
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%)
RH, non-condensing
Storage humidity: (5% - 90%)
RH, non-condensing
Certification
CCC, FCC, CE, RoHS
Software
Security features
Supports ARP receiving limit
Supports discarding unknown MAC addresses
Supports DoS attack defense
Supports 802.1x security authentication
Supports RADIUS authentication
VLAN
Supports 4K VLAN table
Supports IEEE 802.1Q VLAN
Supports three port link types: Access, Trunk and Hybrid
DHCP Server
DHCP Snooping
Supports Option 82 policy configuration
Port aggregation
Static aggregation
LACP dynamic aggregation
Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge ports
Supports BPDU statistics
Supports BPDU Guard, BPDU Filter
Supports Root Guard, Loop Guard
Supports Loopback-detection
Multicast
IGMP Snooping V1/V2/V3
Supports fast leave configuration on ports
Port Mirroring
Supports N: 1 port mirroring
Quality of Service
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
ACL
Supports MAC ACL and IP ACL
Loading and upgrade
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export
Management and maintenance
Supports Telnet configuration and Console port configuration
Supports SNMP V1/V2/V3
Supports web management and maintenance
Supports Ping/Tracert/cable test
