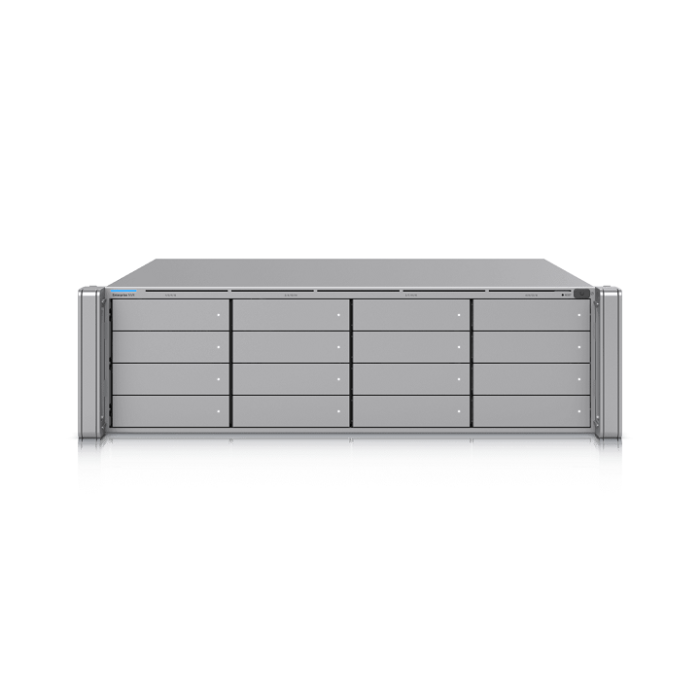

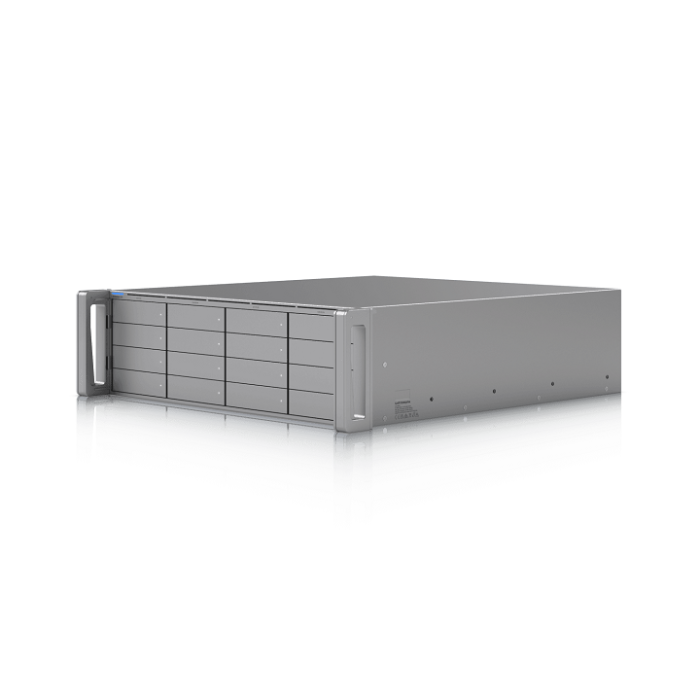

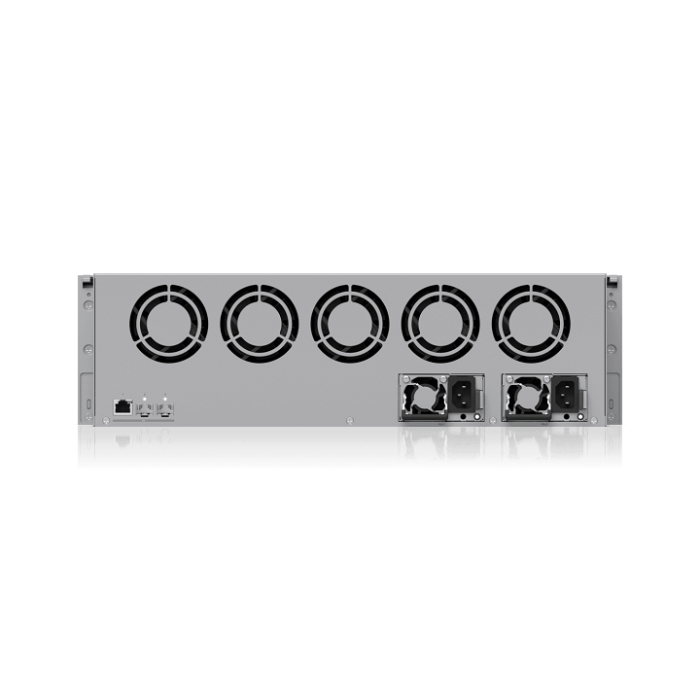

Ubiquiti Enterprise Network Video Recorder - ENVR-UK
3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.
| Mechanical | |
|---|---|
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |
| Slide Rails Support | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and post depths ranging from 650 to 1000 mm (25.6–39.4”). |
| Hardware | |
| Management Interface | Ethernet In-Band |
| Networking Interface | (1) 1/2.5/5/10 GbE RJ45 port (2) 1/10 GbE SFP+ ports |
| Power Method | (2) AC input, 100-240V, 7A Max., 50/60Hz (redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Supported Voltage Range | 100—240V AC |
| Max. Power Consumption | 410W |
| Max. Power Budget for Drives | 310W |
| ESD/EMP Protection | Air: +12kV, Contact: +8kV |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 40C (23 to 104F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| Capacity | |
| HD Cameras | 210 |
| 2K Cameras | 140 |
| 4K Cameras | 70 |
| LED Indicators | |
| System | (1) Power: Blue/White Flashing White: Bootup in progress Flashing Blue: Firmware upgrading Steady White: Factory defaults, awaiting adoption Steady Blue: Device is adopted |
| Ethernet | Green: Link/Activity |
| SFP+ | Green: Link/Activity |
| HDD | White: Disk detected Amber: Disk error |
