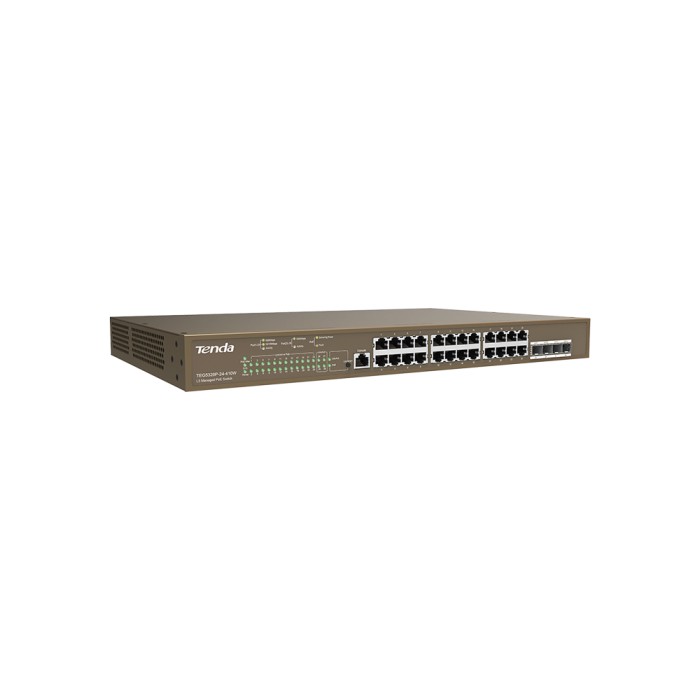

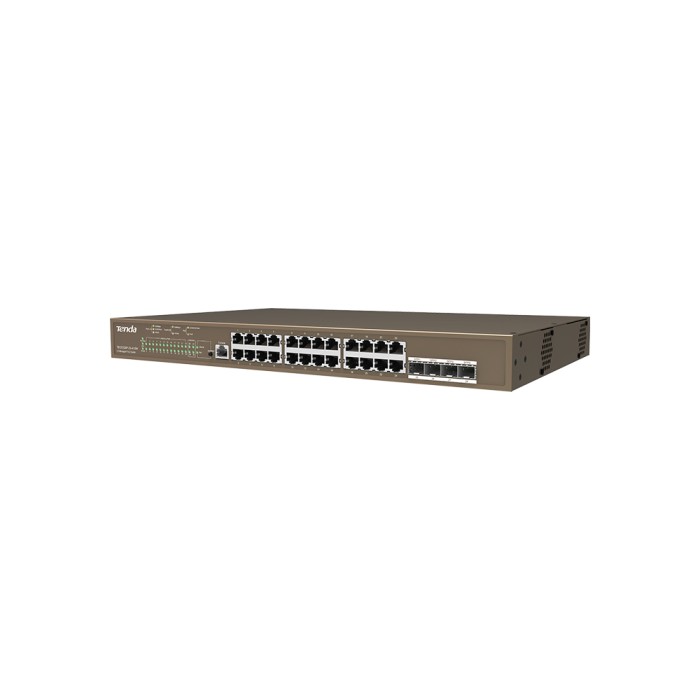

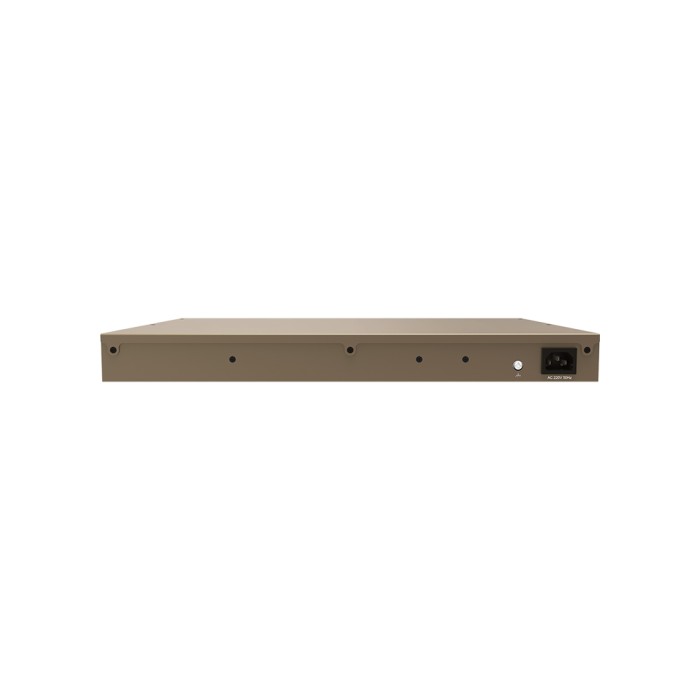

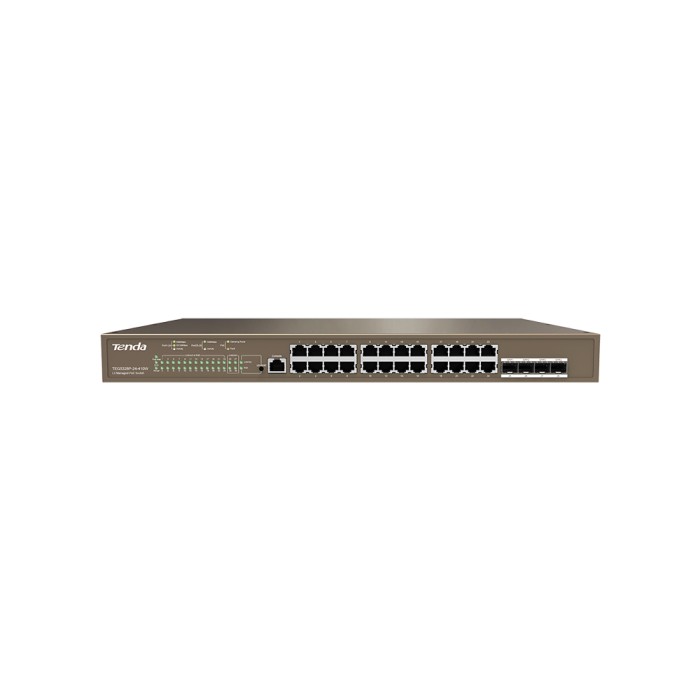

Tenda TEG5328P-24-410W L3 Managed PoE Switch
- Supports web management and maintenance
- Single port output power 30W, maximum output power 370W
- Layer-3 managed PoE switch design
- 24xGigabit PoE+ RJ45 ports and 4xSFP slots
Hardware
Network standards
IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED Indicator
1xLink/Act or PoE LED indicator
1xLink/1xLink/Act mode converting LED indicator
1xPoE mode converting LED indicator
1xPoE Max LED indicator
1xPower LED indicator
1xSYS LED indicator
Interfaces
24x10/100/1000 Base-T Ethernet ports
4x1000 Base-X SFP ports
1xConsole port
Transmission media
Recommended: CAT5/5e UTP or better
Fan quantity
2
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
56Gbps
Packet forwarding rate
41.70Mpps
Buffer
12Mb
MAC address table
16K
Jumbo frame
10K
PoE power supply management
Support
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 370W
Input voltage
100-240V AC 50/60Hz
Power consumption
Full load: ＜432W
Empty load: ＜23W
Dimension
440.0mmx284.0mmx44.0mm
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Energy Efficient
Support
Environment
Operating temperature: 0C - 45C
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%)
RH, non-condensing
Storage humidity: (5% - 90%)
RH, non-condensing
Certification
FCC、CE、RoHS
Software
L3 Features
Supports VLAN-based routing
Supports IPv4/IPv6 static routing
Supports static ARP
PoE power supply management
Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)
Security features
ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authentication
VLAN
IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid
DHCP Server
DHCP Relay
DHCP Snooping
Supports Option 82 policy configuration
Port aggregation
Static aggregation
LACP dynamic aggregation
Spanning tree
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics
Multicast
IGMP Snooping V1/V2/V3
Supports port fast leave
Port Mirroring
Supports N: 1 port mirroring
Quality of Service
SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
ACL
Supports MAC ACL and IP ACL
Loading and upgrade
Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export
Management and maintenance
Supports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/IPv6/Tracert/Connection Detection
CPU Monitoring and memory monitoring
