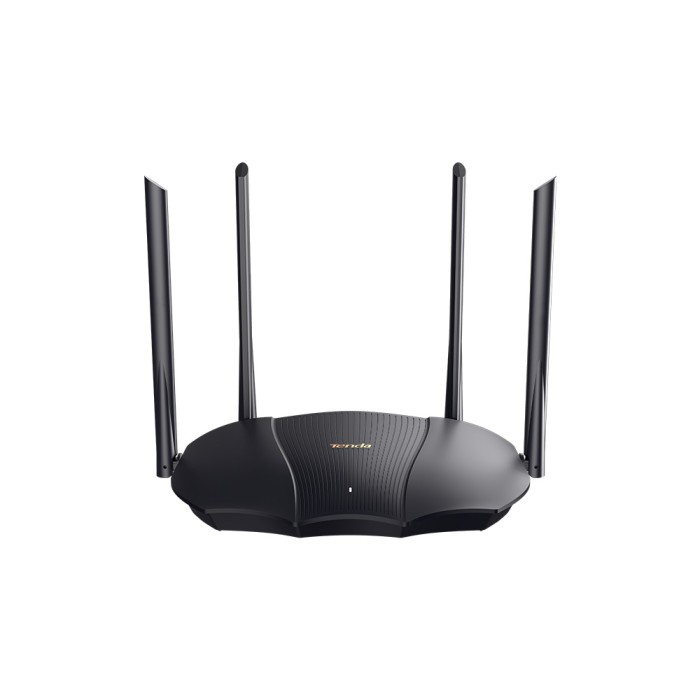

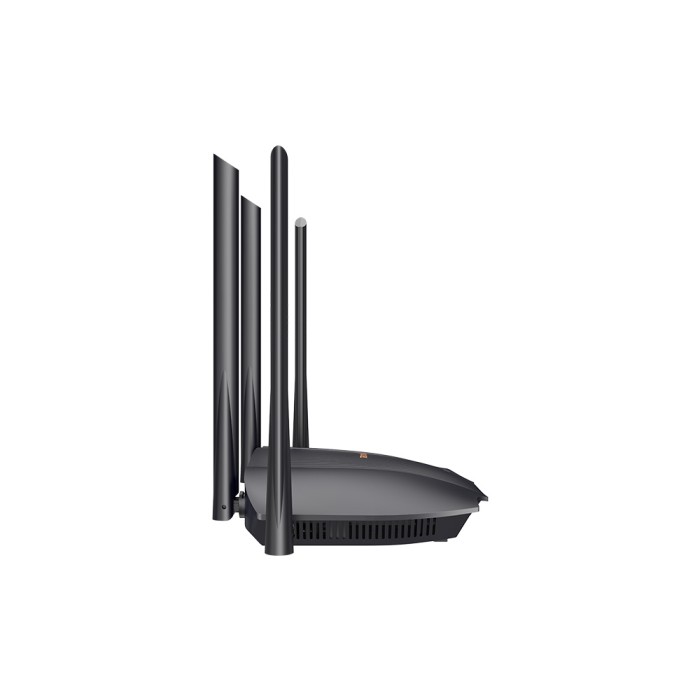

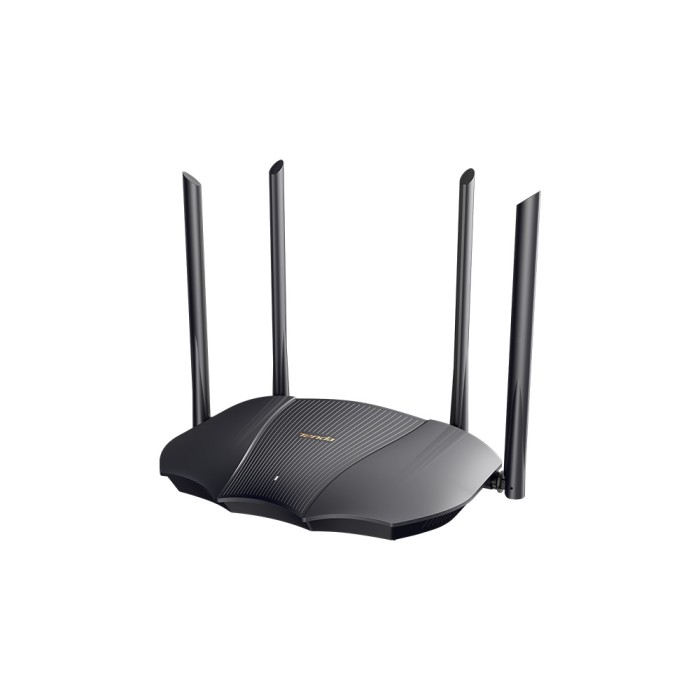

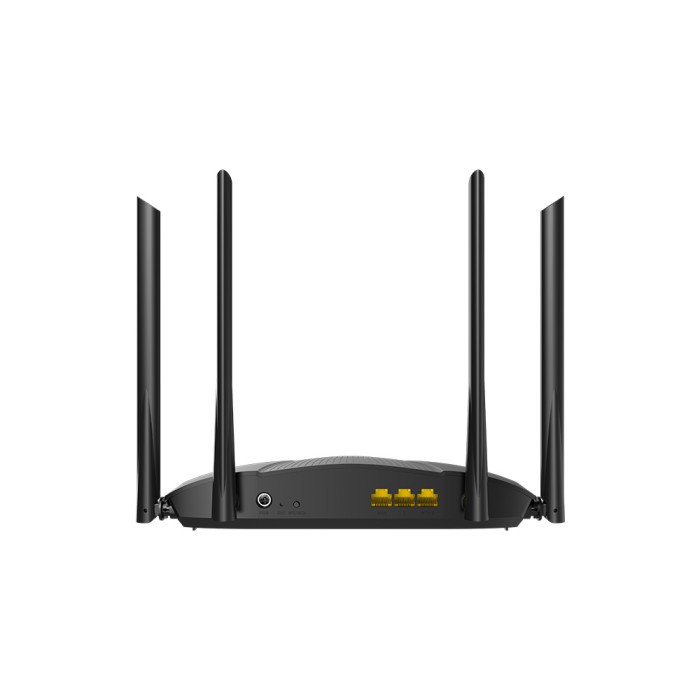

Tenda TX12 AX3000 Dual Band Gigabit Wi-Fi 6 Router
- MU-MIMO、OFDMA、IPv6、App Management
- Max. No. of Connected Devices: 35-40
- Interface: 3*1000Mbps Ports
- Antenna: 4*6dBi
- Wi-Fi6，2.4G: 574Mbps，5G:2402Mbps
| Wi-Fi Router Specifications | |
|---|---|
| Hardware | |
| IEEE802.3, IEEE802.3u, IEEE802.3ab | |
| 1× Gigabit WAN Port 2× Gigabit LAN Ports | |
| 4 × 6 dBi external antennas | |
| 1 × WPS/Mesh button 1 × Reset button | |
|
Input: AC 100–240V ~ 50/60Hz Output: DC 12V⎓1A |
|
| 1 × LED | |
| 272.44 × 162.85 × 43.71 mm | |
| Wireless | |
|
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
|
|
5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
|
|
2.4 GHz: 2412–2472 MHz (CH1–CH13) 5 GHz: 5150–5350 MHz (CH36–CH64) |
|
|
2.4 GHz: 2412–2462 MHz (CH1–CH11) 5 GHz: 5150–5350 MHz (CH36–CH64), 5725–5850 MHz (CH149–CH165) |
|
| <20 dBm (2.4 GHz), <23 dBm (5 GHz) | |
| <30 dBm (2.4 GHz & 5 GHz) | |
| Basic Features | |
|
SSID broadcasting and hiding MU-MIMO Beamforming 160 MHz OFDMA 1024-QAM | |
| Wireless Security | |
|
WPA2-PSK WPA3-SAE/WPA2-PSK Wireless Security: Enable/Disable WPS (Wi-Fi Protected Setup) Fast Encryption | |
| Software | |
|
PPPoE, Dynamic IP, Static IP PPPoE (Russia), PPTP (Russia), L2TP (Russia) Unify, Maxis, Maxis-special, Celcom, Digi |
|
| IPv4 & IPv6 | |
|
Router Mode AP Mode Universal Repeater Mode (Client+AP, WISP) |
|
|
Client Filter URL Filter Time Limit |
|
|
DHCP Server DHCP Client List DHCP Static IP Reservation and Allocation |
|
| Port Forwarding, DMZ Host, UPnP | |
|
ICMP, TCP, UDP Flood Attack Defense Block Ping from WAN |
|
| DynDNS, no-ip, oray, 88ip | |
|
IPSec, PPTP, L2TP Transparent Transmission PPTP VPN Server & Client L2TP VPN Client |
|
|
Wi-Fi+ (Mesh System) Smart Diagnosis IPTV IPv6 Smart LED On/Off |
|
|
App & Web Management Bandwidth Control Guest Network MAC Address Clone Blacklist & Whitelist Unify 2.4 GHz & 5 GHz Static Routing Remote Web Management Backup & Restore Firmware Upgrade Online |
|
| Environmental | |
| 0℃ ~ 40℃ | |
| -40℃ ~ 70℃ | |
| 10% ~ 90% RH (non-condensing) | |
| 5% ~ 90% RH (non-condensing) | |
| Certification | |
| CE, FCC, RoHS | |
| Package Contents | |
|
Wi-Fi Router × 1 RJ45 Ethernet Cable × 1 Power Adapter × 1 Quick Installation Guide × 1 | |
