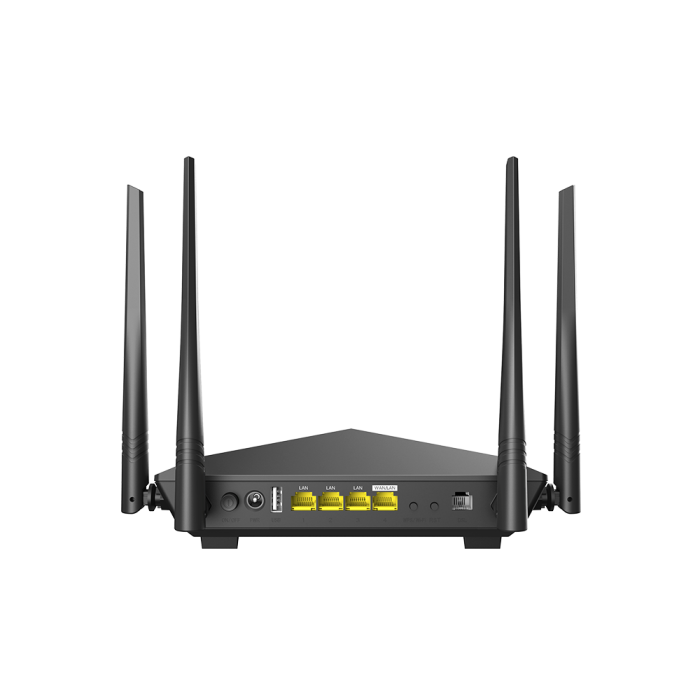

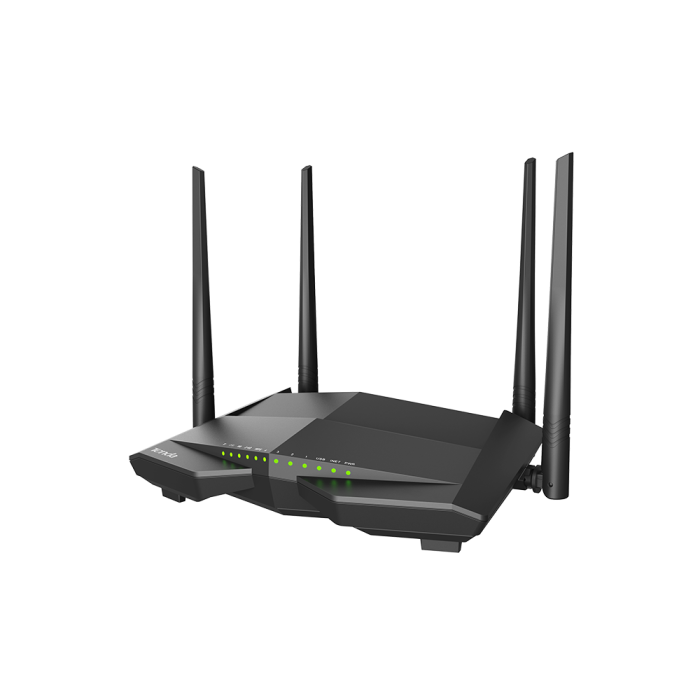

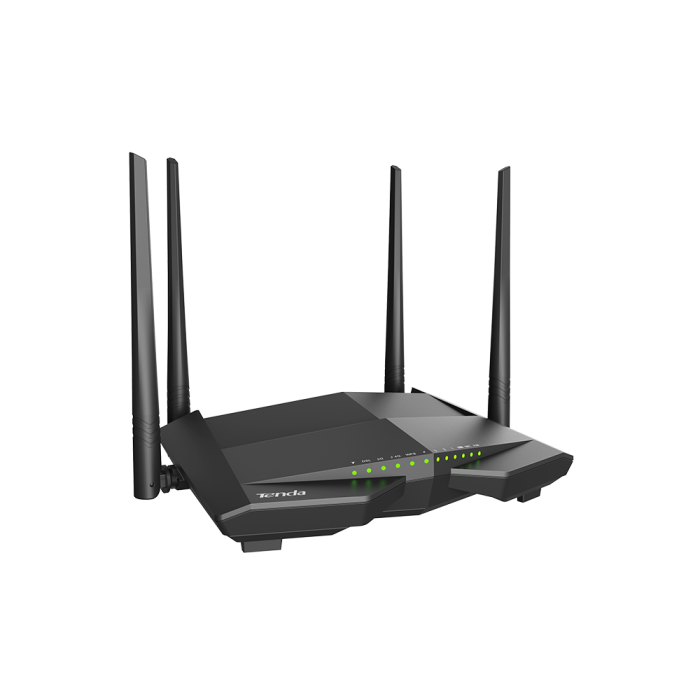

Tenda V15 AX1500 Wi-Fi 6 Gigabit VDSL/ADSL Modem Router
- 4 Gigabit Ethernet Ports
- 4 High-Gain External Antennas
- AX1500 Dual-Band Wi-Fi
- High-Speed VDSL Standards
- Wi-Fi 6 Technology
| AX1500 Dualband Wi-Fi 6 Gigabit VDSL Modem Router Specifications | |
|---|---|
| Hardware | |
|
3 × 10/100/1000 RJ45 LAN Ports 1 × 10/100/1000 RJ45 LAN/WAN Port 1 × RJ11 Port 1 × USB 2.0 Port |
|
| WPS & Wi-Fi, Reset, Power | |
| 12V 1.5A | |
| IEEE 802.11b/g/n, 802.11ac, 802.11ax, IEEE 802.3, 802.3u, IEEE 802.1Q | |
| ITU G.993.2 (Profiles 17a / 30a / 35b), ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP) | |
| ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), G.992.2 (G.Lite), G.994.1 (G.hs) | |
| ITU-T G.992.3 (G.dmt.bis) | |
| ITU-T G.992.5 | |
| 220 × 141.6 × 59 mm | |
| 4 × 5 dBi Antenna | |
| Wireless | |
| IEEE 802.11a/n/ac/ax (5 GHz), IEEE 802.11b/g/n (2.4 GHz) | |
| 20 MHz / 40 MHz / 80 MHz | |
| 300 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz | |
| Enable/Disable Wireless Radio, Guest Network, Access Control, WPS, MESH | |
| None, WPA, WPA2, WPA/WPA2, WPA3 | |
| 2.4 GHz < 20 dBm (EIRP), 5 GHz < 23 dBm (EIRP) | |
| Supported | |
| Software & Features | |
| PVC Configuration, DSL Settings, Routing, QoS (IP based) | |
| MAC Filtering, IP/Port Filtering, URL Blocking, DoS Protection | |
| VDSL/ADSL Modem Router, Wireless Router | |
|
Web-based Configuration (HTTP), Remote Management, CLI, SSL for TR-069, SNMP v1/2c, Web-based Firmware Upgrade, Diagnostic Tools |
|
| DHCP Server, Client List, Address Reservation | |
| Port Forwarding, UPnP, DMZ | |
| Supported | |
| PPTP, L2TP, IPsec | |
| IPv4 & IPv6 | |
| ATM Forum UNI3.1/4.0, PPP over ATM (RFC2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER/IPoE (RFC1483 Routed), Bridge (RFC1483 Bridge), Up to 8 PVCs |
|
| Supported | |
| Certifications & Environment | |
| CE, RoHS | |
| 0℃ ~ 40℃ (32℉ ~ 104℉) | |
| -40℃ ~ 70℃ | |
| 10% ~ 90% (Non-condensing) | |
| 5% ~ 90% (Non-condensing) | |
| Package Contents | |
|
AX1500 Dualband Wi-Fi 6 Gigabit VDSL Modem Router × 1 External Splitter × 1 Power Adapter × 1 RJ11 DSL Cable × 2 RJ45 Ethernet Cable × 1 Quick Installation Guide × 1 | |
