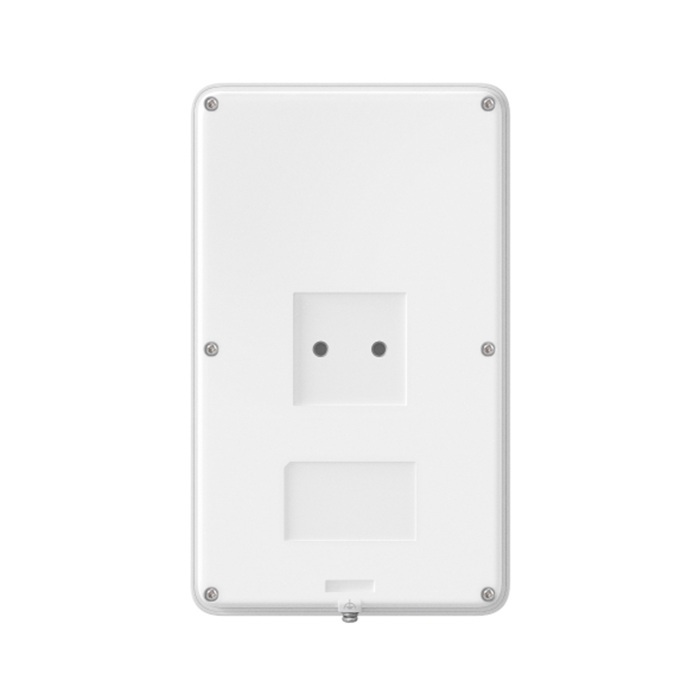

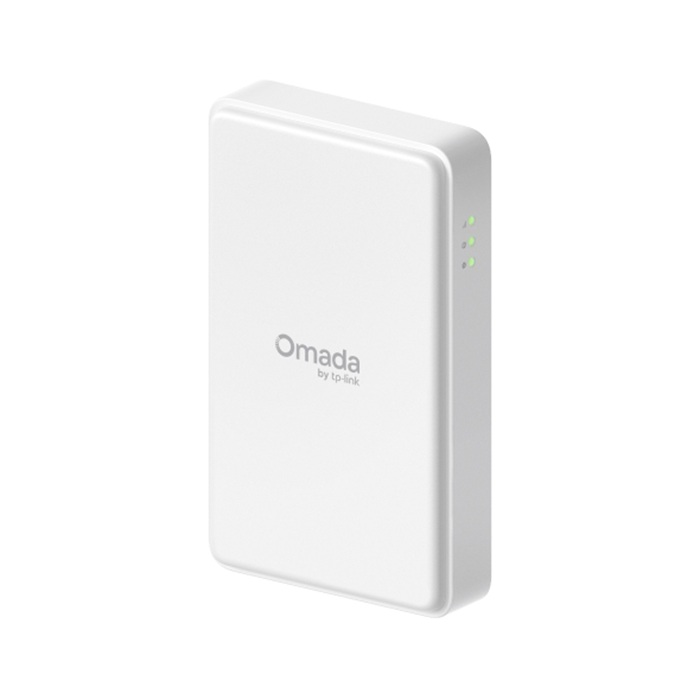

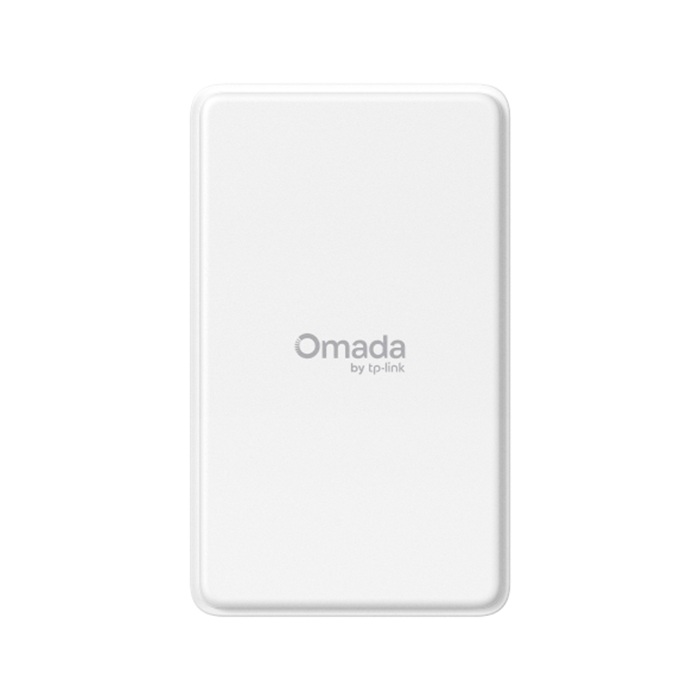

TP-Link Omada ER701-5G-Outdoor 5G Outdoor Gateway
5G NR speeds up to 7.01 Gbps (SA) and 4.5 Gbps (NSA).
Dual Nano SIM for business continuity.
1× 2.5G PoE-in port with adapter included.
9× internal cellular antennas and 1× Wi-Fi antenna.
App-guided antenna alignment for optimal 5G performance.
Omada SDN setup and cloud management.

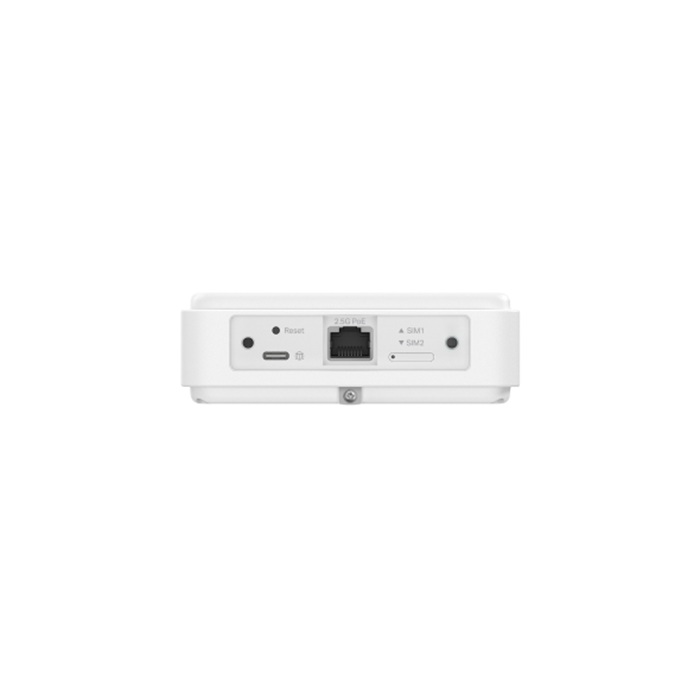

| Interface | 1 × 2.5G RJ45 Port |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button | Reset Button |
| Power Supply | • 802.3at PoE: 42–57V 0.6A • Passive PoE: 48V 0.375A |
| Flash | 4 GB eMMC Flash |
| DRAM | 2 GB LPDDR4x |
| LED | System, Network Type, Signal Strength |
| Dimensions (W × D × H) | 7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
| Antenna | • 9 × internal Cellular antennas • 1 × internal Wi-Fi antenna |
| SIM Slot | 1 × Dual Nano SIM slot |
| Mounting | Wall/Pole/Window Mounting |
| Max. Power Consumption | 15.3 W (802.3at PoE or Passive PoE) |
