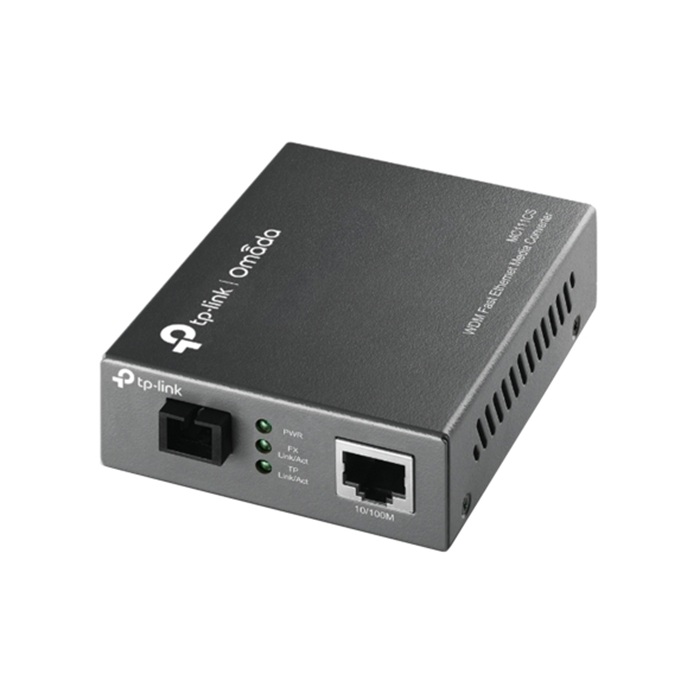

TP-Link Omada MC111CS 10/100Mbps WDM Fiber Media Converter
Supports 802.3u 10/100BASE-TX and 100BASE-FX.
Half/full-duplex auto-negotiation.
WDM technology uses a single fiber for transmission and reception.
Fiber distance up to 20 km.
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u |
| Basic Function | Adopts WDM technology Half/Full-Duplex transfer mode for FX port Extends fiber distance up to 20km |
| Interface | 1 100M SC/UPC port 1 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1550nm Tx/1310nm Rx |
| WDM TX | 1550nm |
| WDM RX | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| Dimensions (W × D × H) | 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 1.23W |
| LED | PWR, Link/Act |
| Safety & Emission | FCC, CE, RoHS |
| Package Content | • Media Converter MC111CS • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
