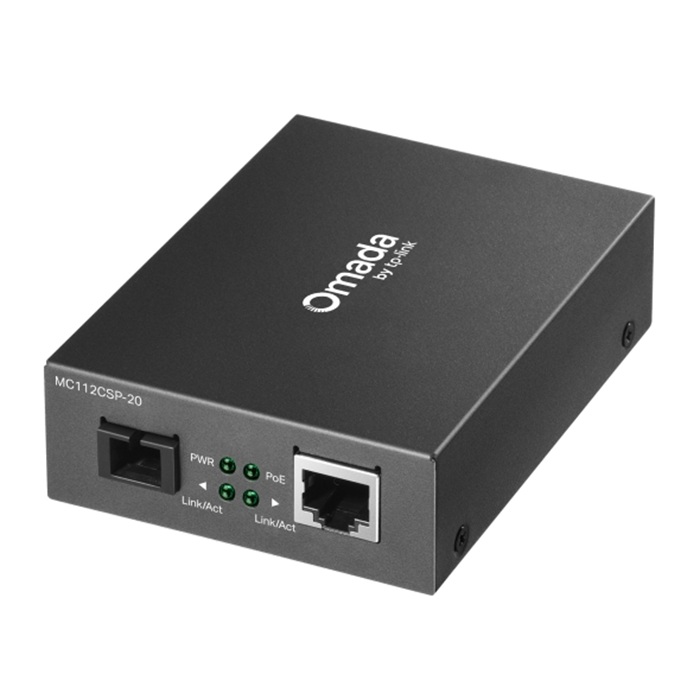

TP-Link Omada MC112CSP-20 10/100Mbps WDM Fiber Media Converter
Supports 802.3u 10/100BASE-TX and 100BASE-FX.
Half/full-duplex auto-negotiation.
WDM single-fiber transmission.
Fiber distance up to 20 km.
IEEE 802.3af PoE output for remote cameras.
| Interface | • 1×100 Mbps SC/UPC Fiber Port • 1× 10/100 Mbps PoE RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single-mode Fiber • UTP category 5, 5e cable (maximum 100m) |
| Power Supply | External Power Adapter: 48 V/0.375 A |
| LED | PWR, Link/Act, PoE |
| Wave Length | • 1310 nm TX • 1550 nm RX |
| Dimensions (W × D × H) | 3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm) |
