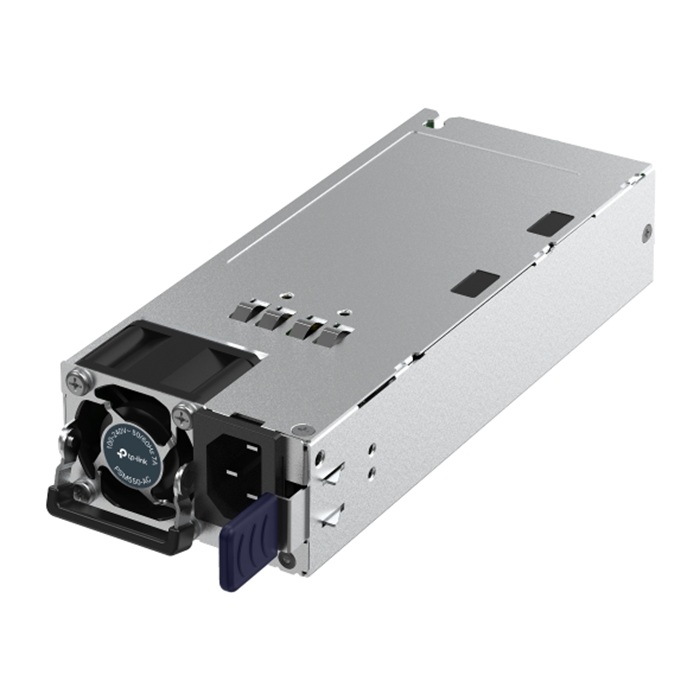

TP-Link Omada PSM550-AC 550W AC Power Supply Module
Up to 550W output power.
12V DC output.
Hot-swappable for uninterrupted replacement.
Overvoltage, overcurrent, short-circuit, and overtemperature protection.
Compatible with SX6632YF and S7500-26XF6Y.
| AC Power Supply | 100–240V~ 50/60Hz 7A |
| DC Power Output | • 12V main: 12 VDC / 45 A (Maximum) • 12Vsb: 12 VDC / 2.1 A (Maximum) |
| Surge Protection | ±4 kV |
| Dimensions (W × D × H) | 185 × 73.5 × 40 mm |
| Max. Power Output | 550W |
| Environment | • Operating Temperature (sea level to 3000 m): 0˚C–55˚C (32˚F to 131˚F) • Operating Temperature (sea level to 5000 m): 0˚C–45˚C (32˚F to 113˚F) • Storage Temperature: -40℃–70℃ (-40℉~158℉) • Operating Humidity: 5%–90% RH, Non-condensing • Storage Humidity: 5%–95% RH, Non-condensing |
