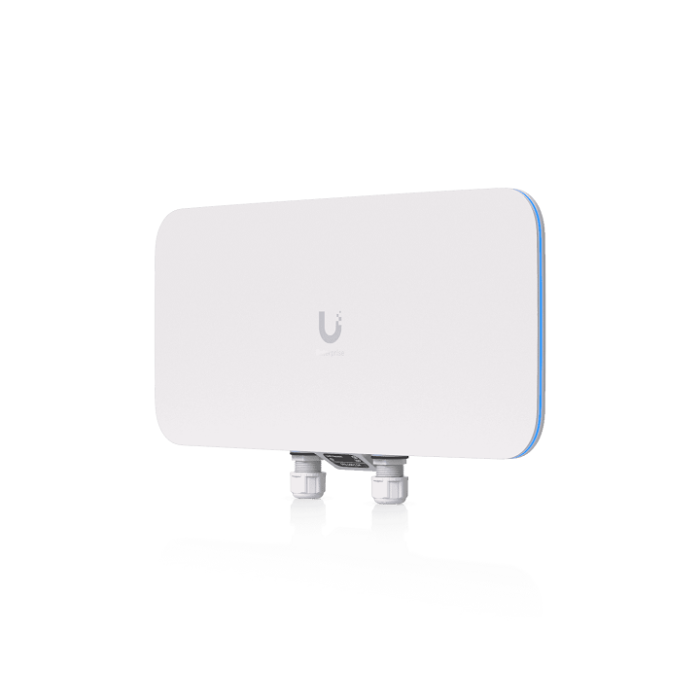

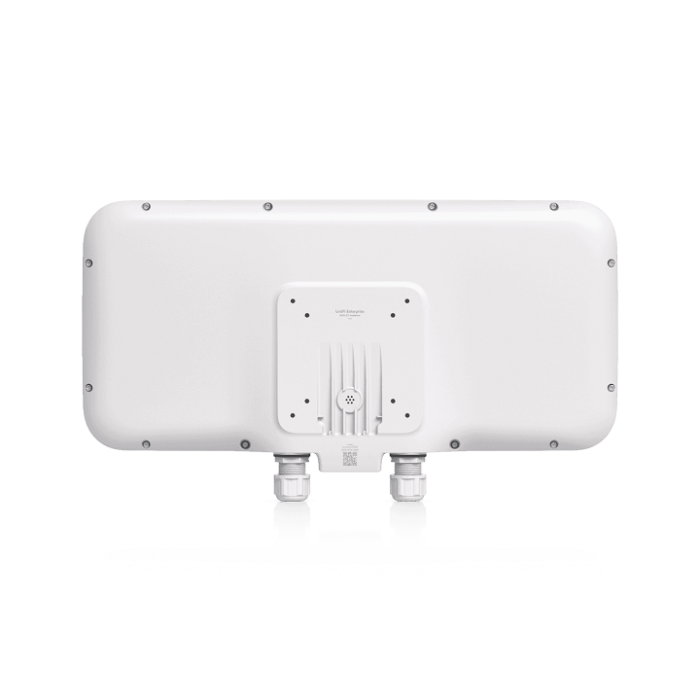

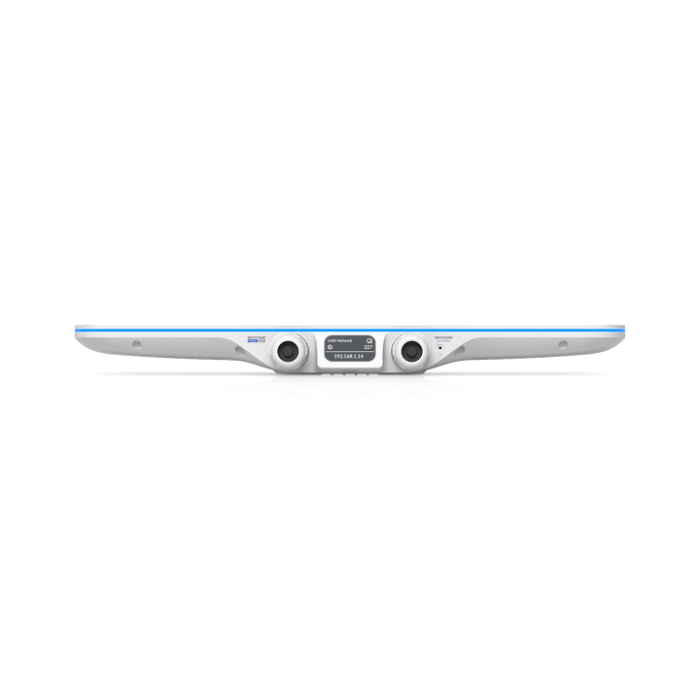

Ubiquiti E7 Audience Indoor/Outdoor Access Point - E7-Audience
Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
| Device Specifications | |
|---|---|
| Physical | |
| Dimensions |
Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9") |
| Mounting | Wall, Pole (Mounts Included), VESA (Optional) |
| Weatherproofing | IP68 |
| Wind Loading | 164.75 N at 200 km/h (37 lbf at 125 mph) |
| Pole Mount Diameter | 1–3" (25–76 mm) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| Wireless | |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 12 |
| Coverage Area | 465 m (5,000 ft) |
| Max. Client Count | 1500+ |
| Max. BSSIDs | 8 per radio |
| MIMO |
6 GHz Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz Low Band: 11.5 Gbps (BW320) High Band: 11.5 Gbps (BW320) 5 GHz 8.6 Gbps (BW240) |
| Antenna Gain |
6 GHz 15 dBi (50 x 50), directional 11 dBi (90 x 90), directional 5 GHz 15 dBi (50 × 50), directional 11 dBi (90 × 90), directional |
| Max. TX Power |
6 GHz Low Band: 30 dBm (36 dBm EIRP) High Band: 30 dBm (36 dBm EIRP) 5 GHz 30 dBm |
| Operating Frequency |
US/CA U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz U-NII-5 & U-NII-7: 5925–6425 MHz, 6525–6875 MHz Worldwide 5150–5725 MHz 5925–7125 MHz |
| Channel Bandwidth |
VHT 20/40/80/160 MHz HE 20/40/80/160 MHz EHT 20/40/80/160/240/320 MHz |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 7.3 Mbps – 11.5 Gbps |
| 802.11ax (WiFi 6) | 7.3 Mbps – 4.8 Gbps |
| 802.11ac (WiFi 5) | 6.5 Mbps – 3.4 Gbps |
| 802.11n | 6.5 Mbps – 600 Mbps |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v / 802.11r / 802.11k | Yes |
| Zero-Wait DFS | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Hotspot / Portal Features |
Custom Branding Voucher Authentication Payment Authentication External Portal Server Password Auth Guest Isolation PPSK |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 51W |
| Power Method | PoE++ |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface |
(1) 10 GbE RJ45 port (1) 1 GbE RJ45 port |
| PRISM™ RF Filtering | Yes |
| Antennas | Internal directional |
| Management | Ethernet |
| Environmental | |
| Operating Temperature | -40 to 60C (-40 to 140F) |
| Operating Humidity | 5 to 95% noncondensing |
| LEDs | |
| System | R/G/B |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | FCC, IC |
| Software | |
| Application Requirements | UniFi Network 9.2.87 and later |
| Mobile App |
iOS 10.24.1+ Android 10.25.2+ |
