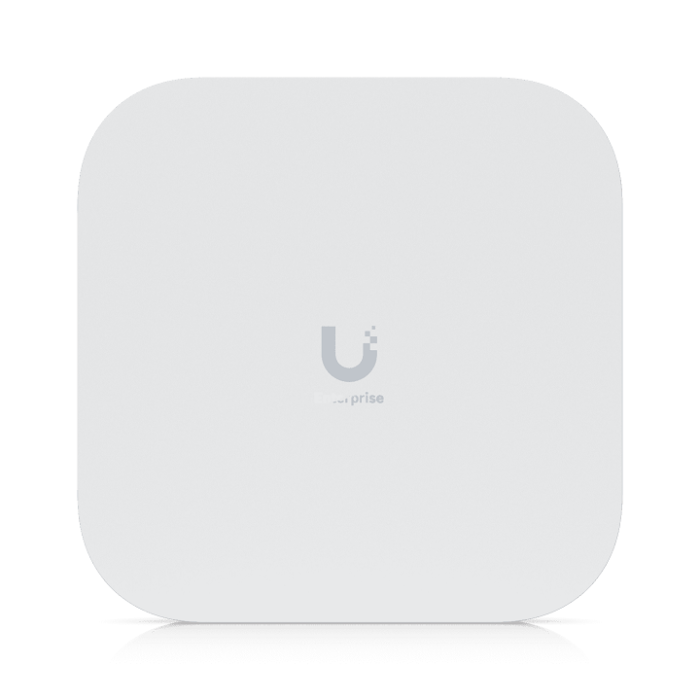

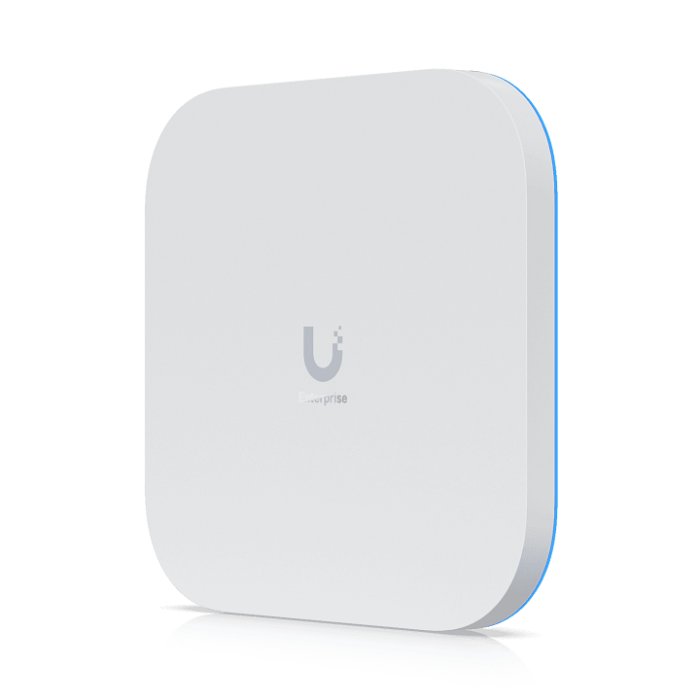

Ubiquiti E7 Indoor Access Point - E7
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
| Device Specifications | |
|---|---|
| Physical | |
| Dimensions | 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7") |
| Mounting | Ceiling, Wall, VESA (Pro Mount Included) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Wireless | |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 10 |
| Coverage Area | 185 m (2,000 ft) |
| Max. Client Count | 1000+ |
| Max. BSSIDs | 8 per Radio |
| Uplink | 10 GbE, 1 GbE |
| MIMO |
6 GHz: 4 x 4 (DL/UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz: 11.5 Gbps (BW320) 5 GHz: 8.6 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
6 GHz: 6 dBi 5 GHz: 6 dBi 2.4 GHz: 5 dBi |
| Max. TX Power |
6 GHz: 24 dBm / 30 dBm 5 GHz: 30 dBm 2.4 GHz: 23 dBm |
| Operating Frequency |
US/CA 2400–2472 MHz U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz U-NII-5 to -8: 5925–7125 MHz Worldwide 2400–2483.5 MHz 5150–5725 MHz 5925–7125 MHz |
| Channel Bandwidth |
HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 EHT 20/40/80/160/240/320 MHz |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 7.3 Mbps – 11.4 Gbps |
| 802.11ax (WiFi 6) | 7.3 Mbps – 4.8 Gbps |
| 802.11ac (WiFi 5) | 6.5 Mbps – 3.4 Gbps |
| 802.11n | 6.5 Mbps – 600 Mbps |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v / 802.11r / 802.11k | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Portal Features |
Custom Branding Voucher Authentication Payment Authentication External Portal Server Support Password Authentication |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 43W |
| Power Method | PoE++ |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface |
(1) 10 GbE RJ45 port (1) 1 GbE RJ45 port |
| Management | Ethernet |
| LEDs | |
| System | R/G/B |
| Environmental | |
| Operating Temperature | -30 to 50C (-22 to 122F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06372-24-08356 |
| Software | |
| Application Requirements | UniFi Network 9.2.87 and later |
| Mobile App |
iOS 10.24.1+ Android 10.25.2+ |
