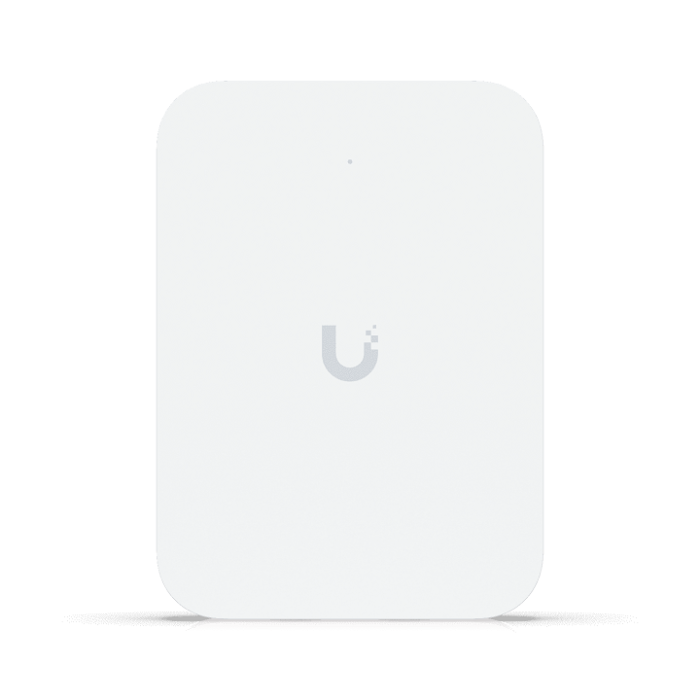

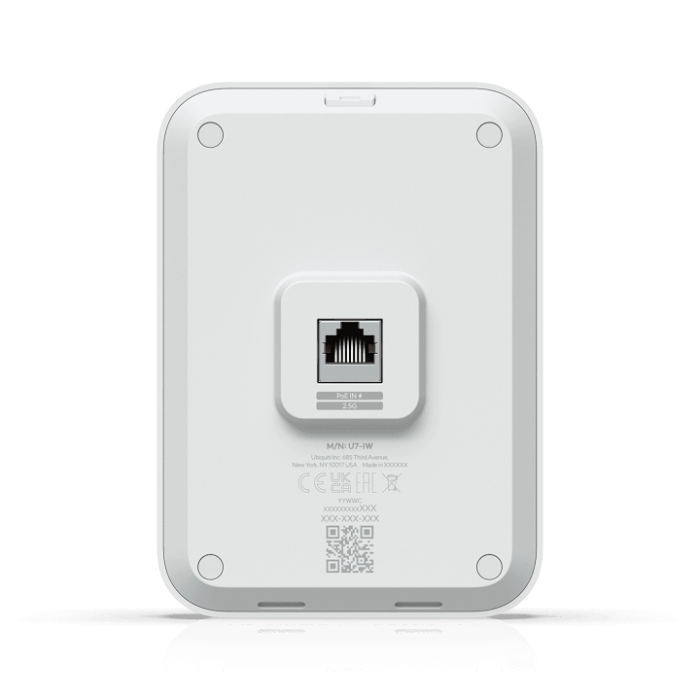

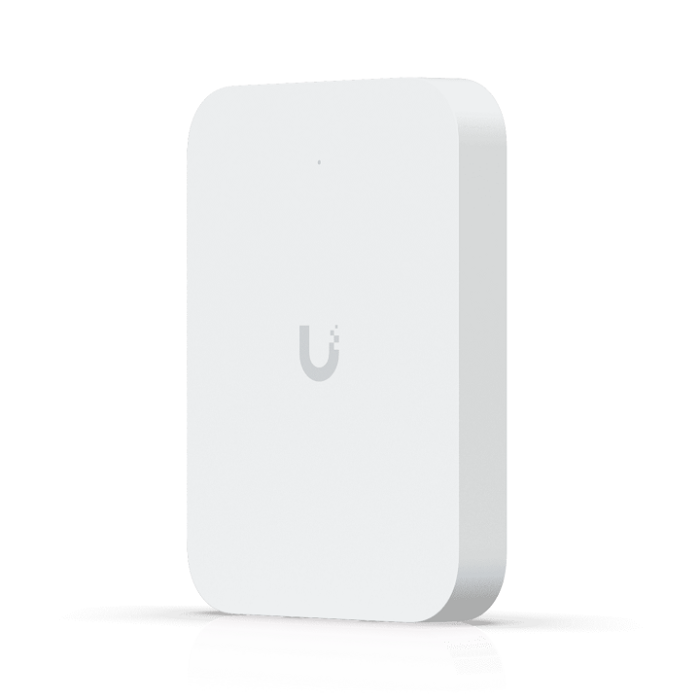

Ubiquiti U7 In-Wall Wall-mounted WiFi 7 Access Point - U7-IW
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
| Device Specifications | |
|---|---|
| Dimensions | 137 × 98.7 × 30.2 mm (5.4 × 3.9 × 1.2") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m (1,250 ft) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE |
| Mounting | Wall (Metal wall mount included) |
| Power Method | PoE PoE+ (Required for PoE output) |
| Performance | |
| MIMO |
5 GHz: 2×2 (DL/UL MU-MIMO) 2.4 GHz: 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate |
5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
5 GHz: 8 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
5 GHz: 24 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7) 7.3 Mbps – 4.3 Gbps (MCS0–MCS13, NSS1/2, EHT 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps – 2.4 Gbps (MCS0–MCS11, NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps – 1.7 Gbps (MCS0–MCS9, NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40) |
| Wireless & Network Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal |
Custom Branding ✓ Voucher Authentication ✓ Payment Authentication ✓ External Portal Support ✓ Password Authentication ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 13W (excluding PoE output) |
| Supported Voltage Range | 42.5–57V DC |

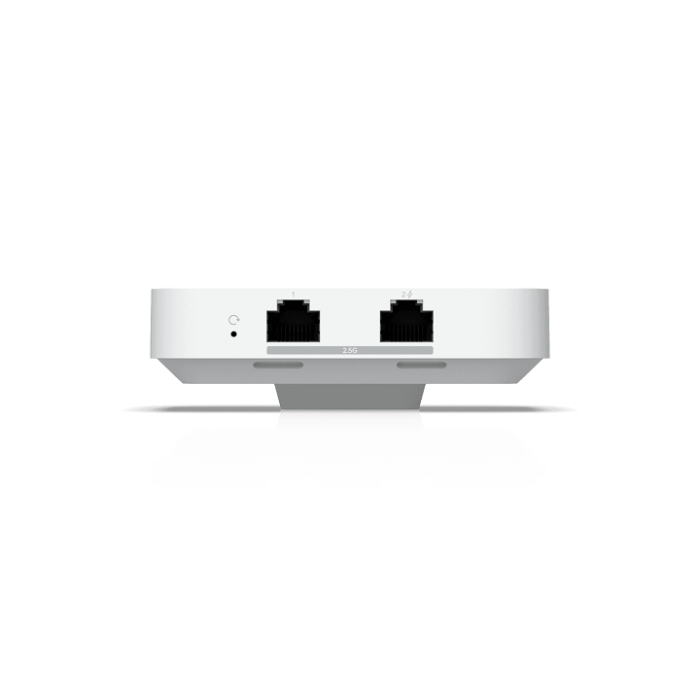

| Networking Interface | (3) 2.5 GbE RJ45 ports |
| Weight | 400 g (14.1 oz) |
| Management | Ethernet |
| Built-In Switch | (1) PoE+ input and (1) PoE output |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| LEDs | System (White/Blue) |
| Channel Bandwidth |
HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 EHT 20/40/80/160/240 |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, SRRC, Anatel: 03909-25-08356 |
| Ambient Operating Temperature | -30 to 40C (-22 to 104F) |
| Ambient Operating Humidity | 5% to 95% noncondensing |
| Software Requirements | |
| UniFi Network Application | Version 9.0.114 and later |
| Mobile App |
iOS 10.20.2+ Android 10.21.7+ |
