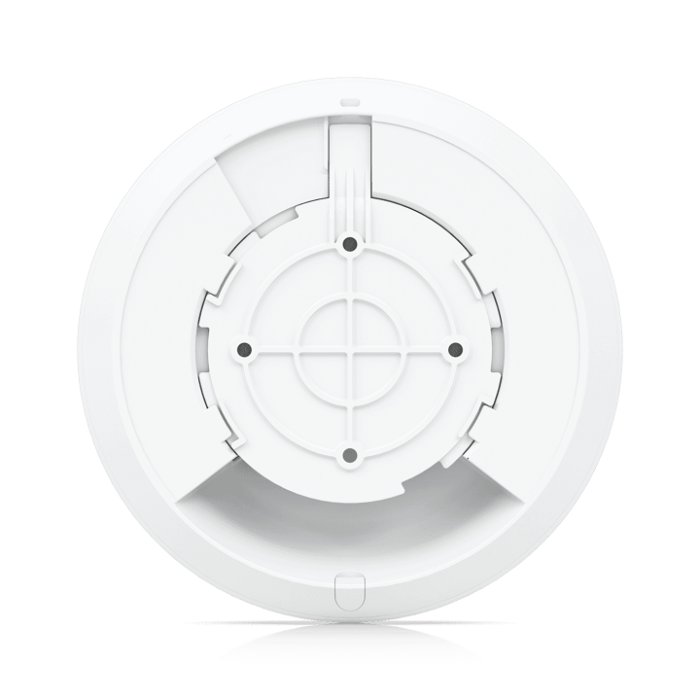

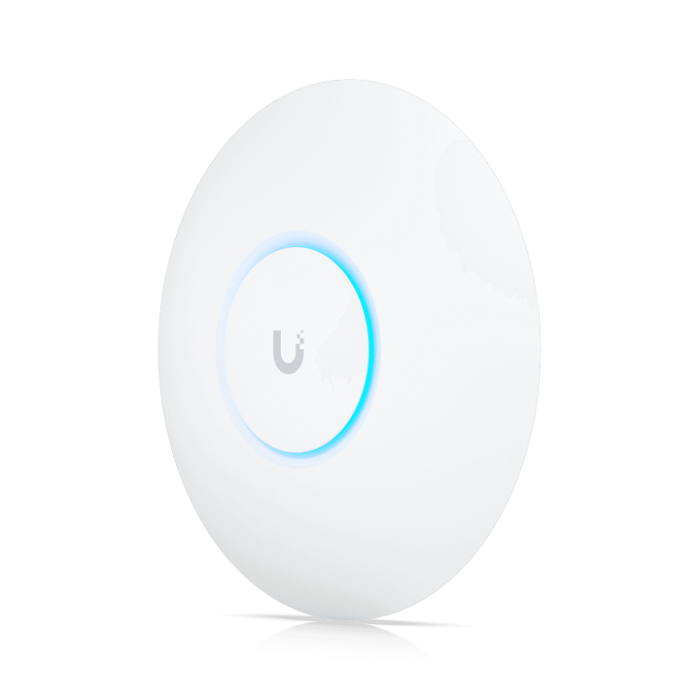

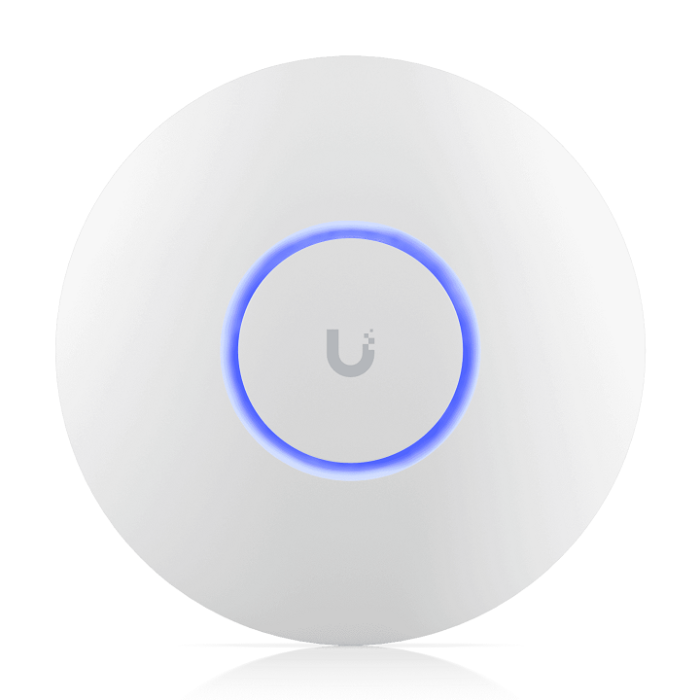

Ubiquiti ceiling-mounted WiFi 6 Access Point - U6+
Compact, ceiling-mounted WiFi 6 AP with 4 spatial streams that improves upon the U6 Lite with higher performance and dual-band WiFi 6 support. Ideal for small and medium-sized businesses.
| Device Specifications | |
|---|---|
| Physical | |
| Dimensions | 160 x 33 mm (6.3 x 1.3") |
| Mounting | Ceiling, Wall (Mounts Included) |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | ABS, SGCC steel |
| Wireless | |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 4 |
| Coverage Area | 140 m (1,500 ft) |
| Max. Client Count | 300+ |
| Uplink | GbE |
| MIMO |
5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
5 GHz: 2.4 Gbps (BW160) 2.4 GHz: 573.5 Mbps (BW40) |
| Antenna Gain |
5 GHz: 5.4 dBi 2.4 GHz: 3 dBi |
| Max. TX Power |
5 GHz: 23 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Operating Frequency |
US/CA 2400–2472 MHz U-NII-1: 5150–5250 MHz U-NII-2A: 5250–5350 MHz U-NII-2C: 5470–5725 MHz U-NII-3: 5725–5850 MHz Worldwide 2400–2483.5 MHz 5150–5725 MHz |
| Supported Data Rates | |
| 802.11ax (WiFi 6) | 7.3 Mbps – 2.4 Gbps |
| 802.11ac (WiFi 5) | 6.5 Mbps – 1.7 Gbps |
| 802.11n | 6.5 Mbps – 300 Mbps |
| Wireless & Network Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v/r/k | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Portal |
Custom Branding Voucher Authentication Payment-Based Authentication External Portal Server Support Password Authentication |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 9W |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 port |
| Management | Ethernet |
| LEDs | |
| System | White/Blue |
| Environmental | |
| Operating Temperature | -30 to 60C (-22 to 140F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, SRRC, Anatel: 10539-23-08356 |
| Software Requirements | |
| UniFi Network | Version 7.3.76 and later |
