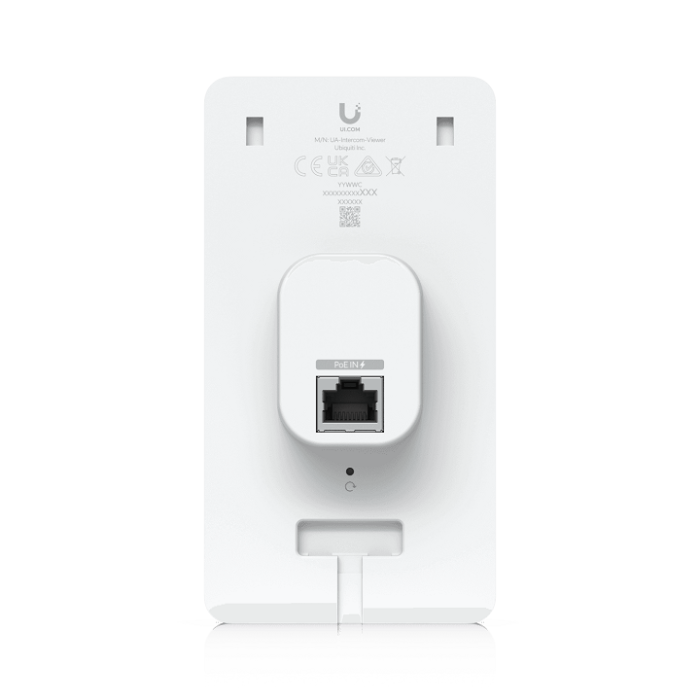

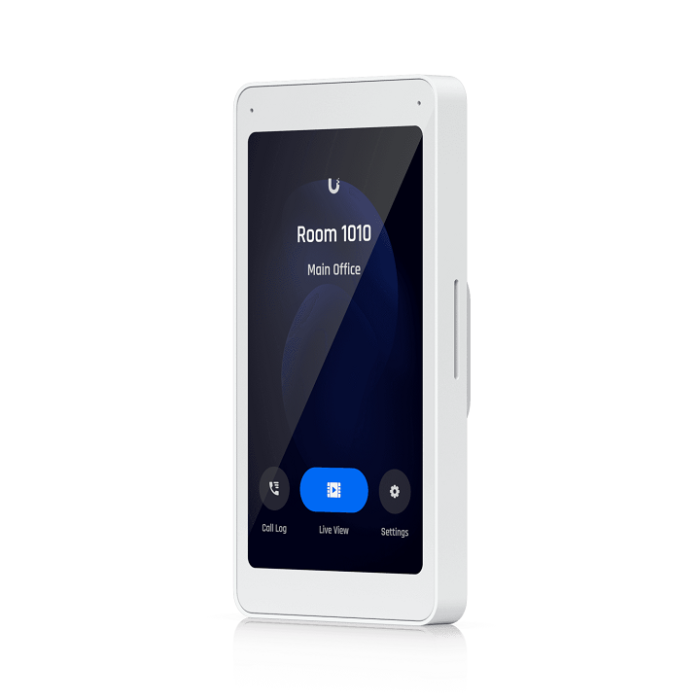

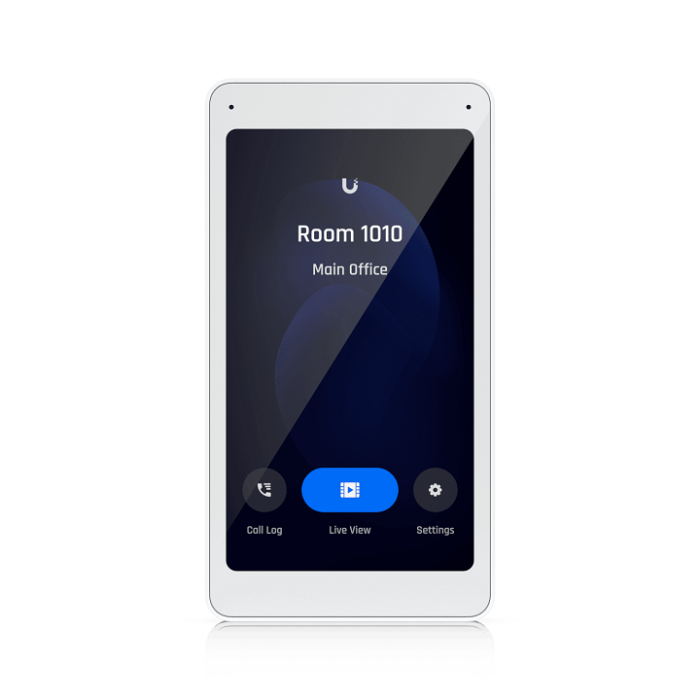

Ubiquiti Intercom Viewer - UA-Intercom-Viewer
Display that works with Intercom and Reader Pro for visitor screening and remote access control.
Compatibility: UA-Intercom, UA-G3-Pro, UA-G2-Pro
| UA-Intercom Viewer Specifications | |
|---|---|
| Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3 in) |
| Mobile Unlock | Yes |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I |
| Enclosure Material | Glass, polycarbonate |
| Mount Material | Aluminum alloy |
| Mounting | Wall mount (included), gang box mount (optional) |
| Indoor/Outdoor Use | Indoor only |
| Operating Temperature | 0 to 40C (32 to 104F) |
| Operating Humidity | 5–95% non-condensing |
| Networking Interface | 1 x 10/100 Mbps RJ45 |
| Connectivity | Ethernet |
| Power Method | PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| Max Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| Display Size | 127 mm (5") diagonal |
| Luminance | 300 nits (typical) |
| Screen Orientation | Portrait |
| Resolution | 1280 x 720 px |
| Microphone | Yes |
| Speaker | Yes |
| Buttons | 1 x Factory-reset |
| PoE Cabling Requirements | Cat 5e minimum; 26 AWG for patch cords, 24 AWG for horizontal/riser cable |
| UL 294 Statement | Compliance with IEEE 802.3 not verified; complies with NEC ANSI/NFPA 70 Article 725.121 for Class 2 & 3 circuits |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Management Application | UniFi Access |
| Software Version | Check at https://unifi.ui.com |
