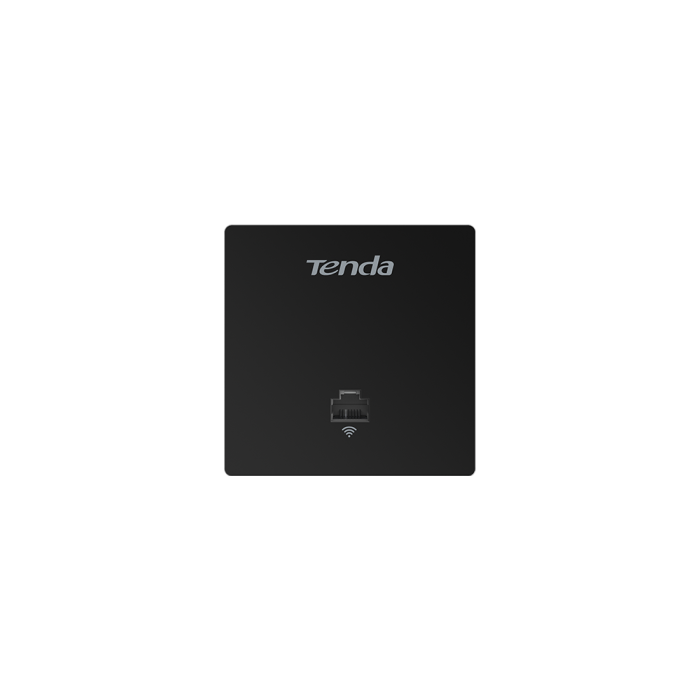

Tenda W13 AX1500 Dual-Band Gigabit Wi-Fi 6 In-Wall AP - Carbon Black
- APP remote management
- 2 Gigabit Ethernet ports
- AX1500 Wi-Fi 6 (1201 Mbps on 5 GHz + 300 Mbps on 2.4 GHz)
- 802.3af PoE cable power supply
Product Information
Model
W13
Category
In-wall
Dimension
86x86x32mm
Hardware
Interface
One 10/100/1000 Mbps Ethernet Port
One 10/100/1000 Mbps Ethernet Port (PoE)
Button
1xReset
LED Indicator
1xSYS
Maximum Power Consumption
6.8W
Power Supply
PoE 802.3af
Max. Number of Clients
256
Recommended Clients
40
Antenna
4x4dBi
2.4GHz maximum power
11b mode, transmit power 17+1.5dBm
11g mode, transmit power 17+1.5dBm
11n mode, MCS7 transmit power 14+1.5dBm
5GHz maximum power
11a mode, transmit power 16+1.5dBm
11n mode, MCS7 transmit power 14+1.5dBm
11ac mode, MCS9 transmit power 14+1.5dBm
11ax mode, MCS11 transmit power 12+1.5dBm
Reception Sensitivity
2.4GHz 802.11b -95dBm
2.4GHz 802.11n (MCS7)
-74dBm
5GHz 802.11a -94dBm
5GHz 802.11n (40M-MCS7)
-72dBm
5GHz 802.11ax (80M-MCS11)
-60dBm
Frequency Range
2.4GHz&5GHz
Standard&Protocol
IEEE 802.11b/g/n/ac/ax
Maximum wireless speed
2.4GHz: 300Mbps
5GHz: 1201Mbps
Bandwidth
20MHz/40MHz/80MHz
Software
Operating Mode
AP/Client+AP
Max. No. of SSID
2.4GHz: 8
5GHz: 4
Hide SSID
Supported
OFDMA
Supported
Beamforming
Supported
Fast roaming（802.11k/v/r）
Supported
WEP
Supported
WPA-PSK
Supported
WPA2-PSK
Supported
WPA
Supported
WPA2
Supported
WPA3-SAE
Supported
Access control
Supported
Adjustable power transmit
Supported
Automatic channel
Supported
AP isolation
Supported
Guest network
Supported
Connected clients control
Supported
RSSI Threshold
Supported
Weak signal terminal elimination
Supported
Prioritize 5 GHz
Supported
VLAN tagging for SSID
Supported
LED control
Supported
MU-MIMO
Supported
Diagnostics tool
Supported
Reboot at specified interval
Supported
Scheduled reboot
Supported
System Logs
Supported
Device management
Web, Router, CloudFi APP, AP Controller
Firmware upgrade
Supported
Reboot
Supported
Reset
Supported
Backup configuration
Supported
Restore configuration
Supported
Others
Default IP
192.168.0.254
Default username
admin
Operation Temperature
-10C - 45C
Operating Humidity
10%-90% non-condensing
Storage Temperature
-30C - 70C
Storage Humidity
5%-90% non-condensing
