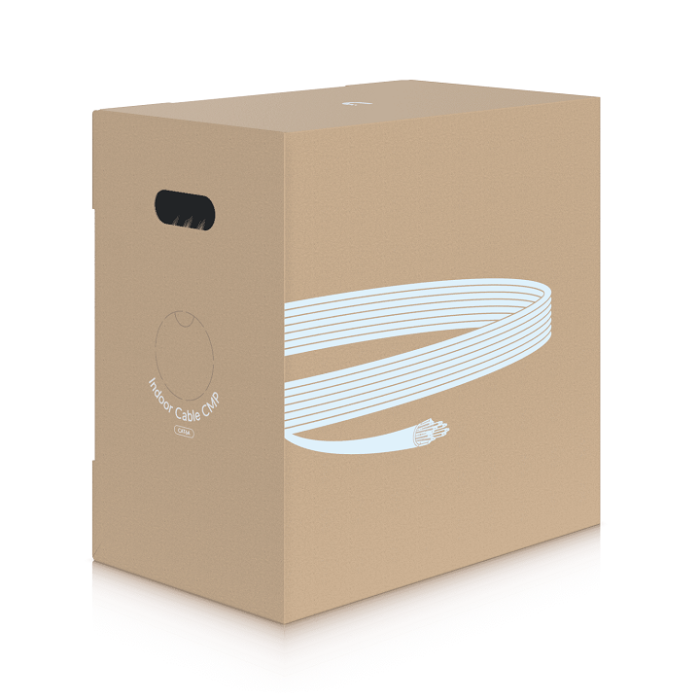

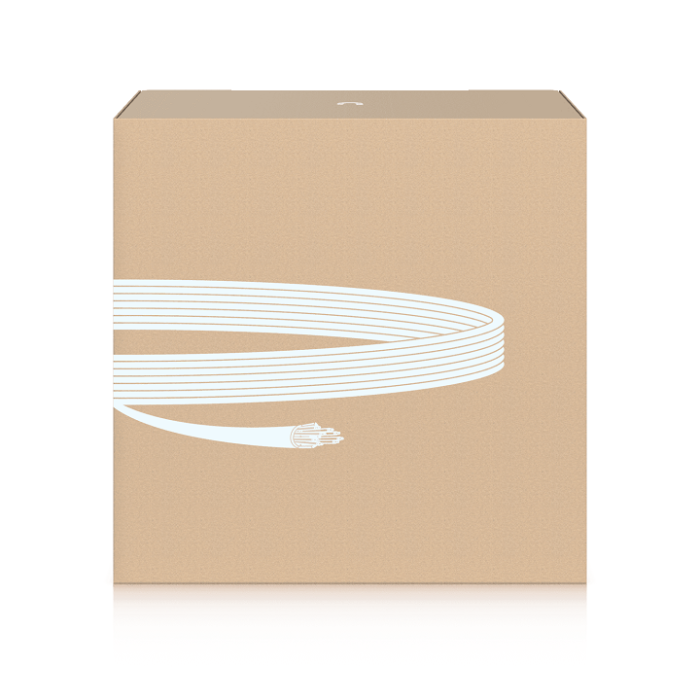

Ubiquiti UniFi Indoor Cable Cat6A CMP - UACC-Cable-C6A-CMP
Category 6A Ethernet cable for high-speed deployments in environments that require plenum-rated cabling.
Category 6A UTP communications multipurpose cable
Plenum (CMP)-rated, fire-resistant jacket
Anti-crosstalk divider
Cable length 305 m
| Cable Specifications | |
|---|---|
| Length | 305 m (1,000 ft) |
| Type | Category 6A |
| Flame Rating | CMP |
| Operating Environment | Indoor |
| Box Dimensions | 494 x 302 x 481 mm (19.4 x 11.9 x 18.9 in) |
| Cable Construction | |
| Jacket Color | White |
| Jacket Diameter | 6.7 + 0.2 mm |
| Jacket Material | Flame Retardant Polyvinyl Chloride (FRPVC) |
| Shielding Type | UTP |
| Conductor Type | Solid bare copper |
| Conductor Wire Gauge | 23 AWG |
| Minimum Bend Radius | 26.8 mm (1.05 in) |
| Twisting |
4 twisted pairs: Pair 1: white-blue / blue Pair 2: white-orange / orange Pair 3: white-green / green Pair 4: white-brown / brown |
| Anti-Crosstalk Divider | Yes |
| Ripcord | Yes |
| Standards & Compliance | |
| Electrical Transmission |
ANSI/TIA-568.2-D ISO/IEC 11801-1 (Edition 2.2) IEC 61156-5 (Edition 2.1) |
| Flame Test | NFPA 262 (CMP) |
| Material & Construction |
UL 444 CSA 22.2 No. 214 EU Directive 2011/65/EU (RoHS2) EU Directive 2006/95/EC (LVD) |
| Temperature Ratings | |
| Installation Temperature | 0 to 60C (32 to 140F) |
| Storage Temperature | -20 to 75C (-4 to 167F) |
| Operating Temperature | -20 to 75C (-4 to 167F) |
