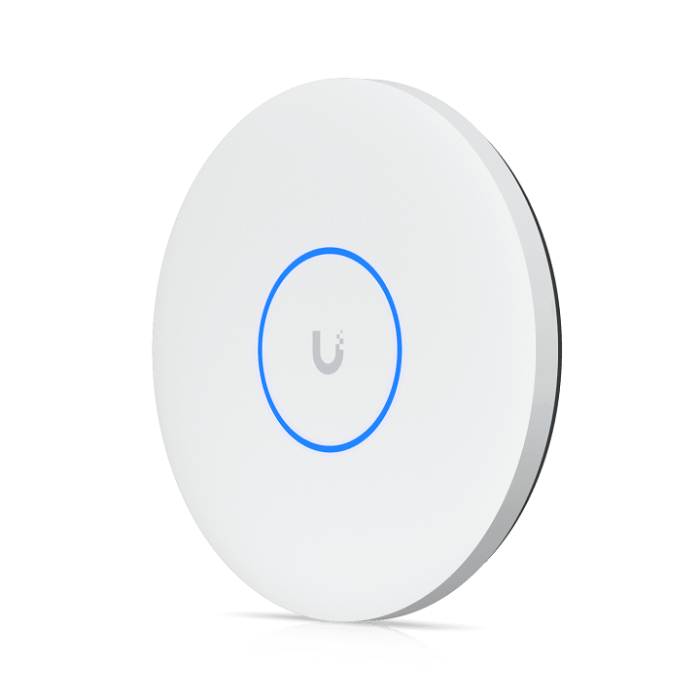

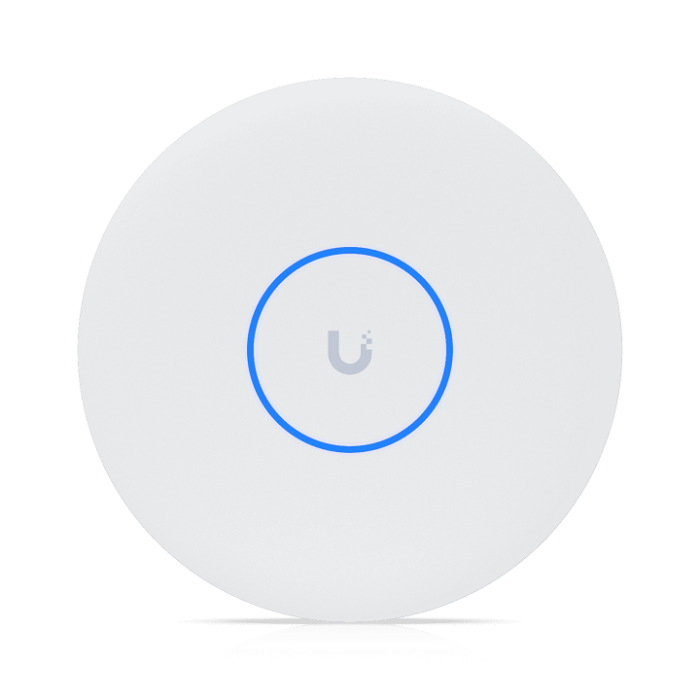

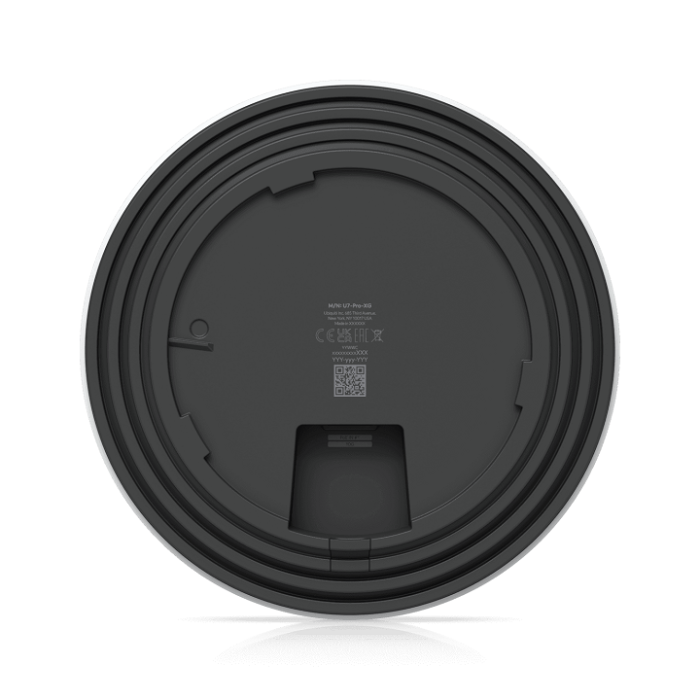

Ubiquiti U7 Pro XG Ceiling-mounted 6-stream WiFi 7 Access Point - U7-Pro-XG
Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
| Device Specifications | |
|---|---|
| Dimensions | 206 × 32.5 mm (8.1 × 1.3") |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO |
6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz: 5.8 Gbps (BW320) 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
6 GHz: 6 dBi 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7) 6 GHz: 7.3 Mbps – 5.8 Gbps (MCS0–MCS13, NSS1/2, BW 20/40/80/160/320) 5 GHz: 7.3 Mbps – 4.3 Gbps (MCS0–MCS13, NSS1/2/3/4, BW 20/40/80/160/240) 802.11ax (WiFi 6) 7.3 Mbps – 2.4 Gbps (MCS0–MCS11, NSS1/2) 802.11ac (WiFi 5) 6.5 Mbps – 1.7 Gbps (MCS0–MCS9, NSS1/2) 802.11n 6.5 Mbps – 300 Mbps (MCS0–MCS15, HT 20/40) |
| Wireless & Network Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Portal |
Custom Branding ✓ Voucher Authentication ✓ Payment Authentication ✓ External Portal ✓ Password Authentication ✓ |
| Guest Network Isolation | ✓ |
| PPSK (Private Pre-Shared Key) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System (White/Blue) |
| Channel Bandwidth |
HT 20/40 VHT 20/40/80/160 HE 20/40/80/160 EHT 20/40/80/160/240/320 |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 06630-25-08356 |
| Operating Frequency |
US/CA: 2400–2472 MHz 5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5850 MHz 5925–7125 MHz Worldwide: 2400–2483.5 MHz 5150–5725 MHz 5925–7125 MHz |
| Ambient Operating Temperature | -30 to 40C (-22 to 104F) |
| Ambient Operating Humidity | 5% to 95% noncondensing |
| Software Requirements | |
| UniFi Network Application |
Version 9.0.114 and later (U7 Pro XG - White) Version 9.1.120 and later (U7 Pro XG - Black) |
