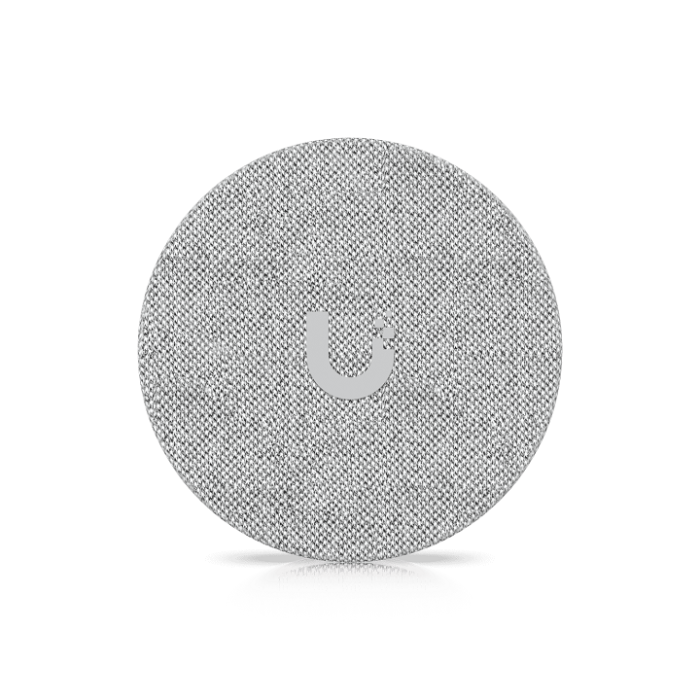

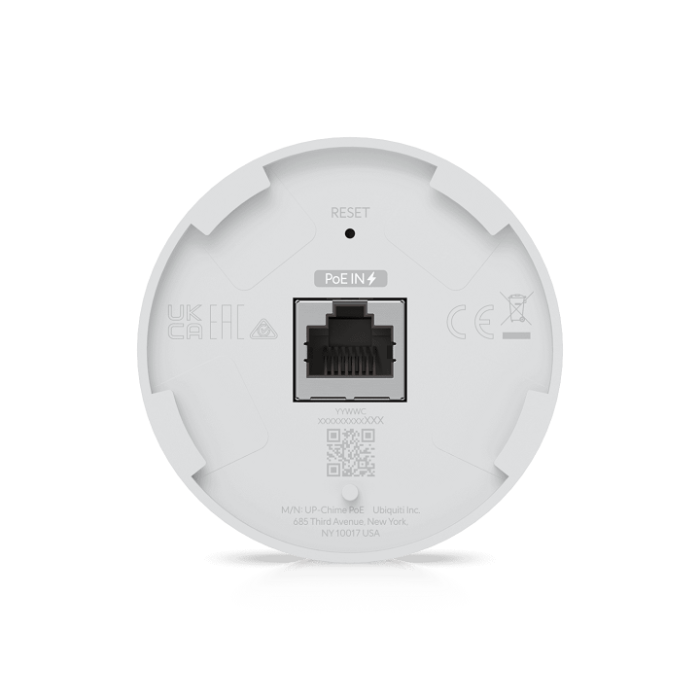

Ubiquiti PoE Smart Chime - UACC-Chime-PoE
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.
| UniFi Protect Chime Specifications | |
|---|---|
| Mechanical | |
| Dimensions (Device) | 62 x 54 mm (2.5 x 2.1") |

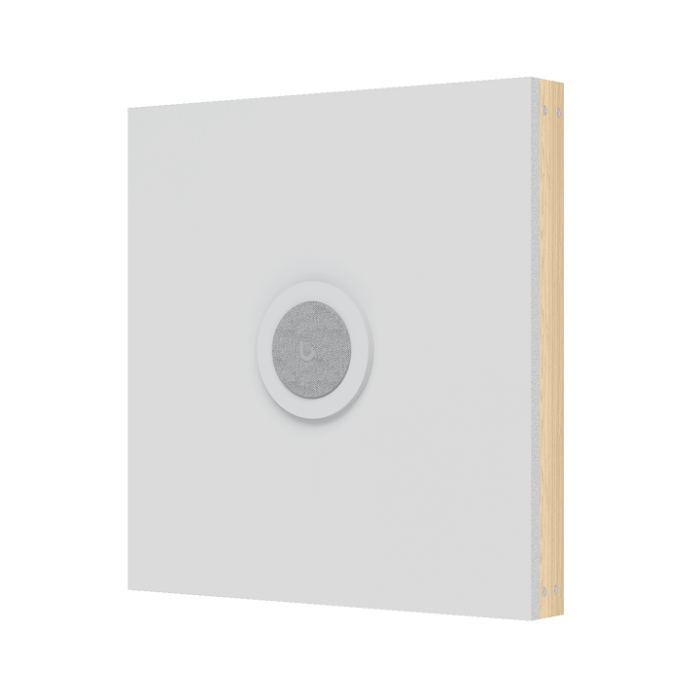

| Dimensions (In-wall Mount) | 89 x 63.1 mm (3.5 x 2.5") |
| Dimensions (On-wall Mount) | 62 x 20.2 mm (2.5 x 0.8") |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, zinc alloy |
| System | |
| Networking Interface | 10/100 MbE port |
| Power Method | PoE |
| Supported Voltage Range | 44–57 V DC |
| Max Power Consumption | 3 W |
| ESD / EMP Protection | Air: ±8 kV, Contact: ±4 kV |
| LED | R / G / B / W |
| Button | Factory reset |
| Audio | |
| Speaker | Yes |
| Buzzer | Yes |
| Environment | |
| Operating Temperature | 0 to 40C (32 to 104F) |
| Operating Humidity | 10–90% non-condensing |
| Software | |
| Web Application | UniFi Protect, UniFi Access |
| Mobile App | UniFi Protect iOS and Android |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
