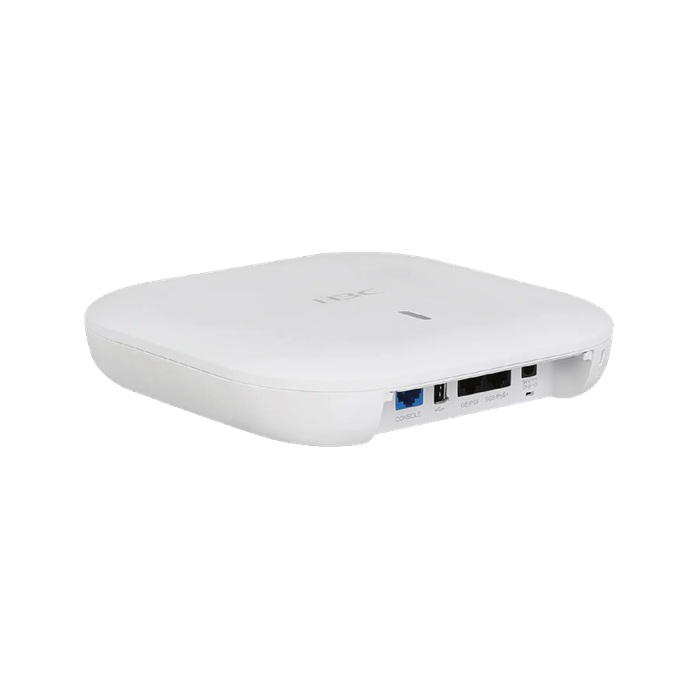

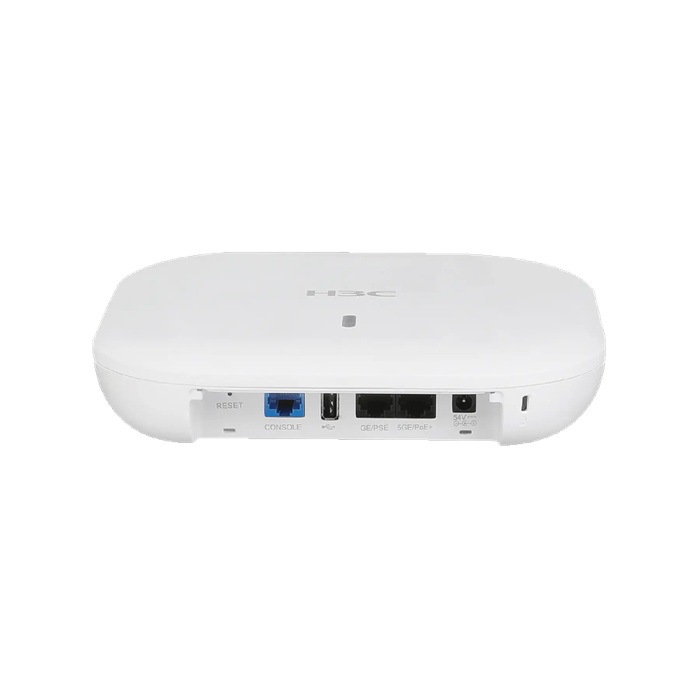

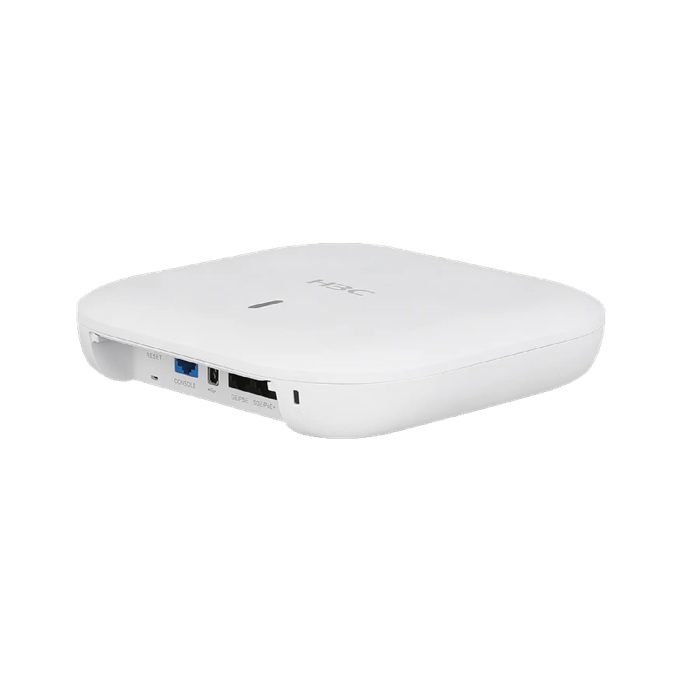

H3C 9801A24H Best price in Dubai UAE
Supports CloudAP, FitAP, and AnchorAP modes for flexible deployment across different network architectures.
Enables centralized wired and wireless network management through H3C Cloudnet and AD-Campus platforms.
Uses Wi-Fi 6 OFDMA and DL/UL MU-MIMO to improve network efficiency, reduce latency, and support high-density connections.
Features BSS Coloring and Target Wake Time to reduce interference, improve spectrum reuse, and enhance power efficiency.
Provides WPA2/WPA3 security, rogue device monitoring, WIPS protection, and encrypted CAPWAP links.
Improves network performance with intelligent RF optimization, wireless fault diagnosis, traffic management, and fast roaming using 802.11k/v/r.
Supports Layer 4–7 application identification, traffic prioritization, secure boot protection, and energy-saving technologies.
H3C 9801A24H Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6622 – Wi-Fi 6 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 0.94 kg |
| Dimensions (W × D × H) | 215 × 215 × 45 mm (without mounting brackets) |
| Ethernet Interfaces | 1 × 100/1000M/2.5G/5G Multigigabit RJ-45 PoE input; 1 × 100/1000M RJ-45 PoE output |
| Console Port | 1 × RJ-45 management console port |
| USB Port | 1 × USB 2.0, 2.5W |
| PoE Input | 100/1000M/2.5G/5G Multigigabit Ethernet, IEEE 802.3at/af |
| PoE Output | 100/1000M Ethernet, IEEE 802.3af |
| Local Power Supply | 54V DC adapter, sold separately |
| Antenna Type | Built-in omnidirectional antennas |
| Antenna Gain | Peak gain: 6dBi at 5GHz and 2.4GHz; equivalent gain: 5dBi at both frequencies |
| Built-in IoT Module | BLE 5.0 |
| Frequency Bands | 2.400–2.4835GHz; 5.150–5.250GHz; 5.250–5.350GHz; 5.470–5.725GHz; 5.725–5.850GHz (subject to regulatory domain) |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11Mbps; 802.11a/g: 6–54Mbps; 802.11n: up to 600Mbps; 802.11ac: up to 6,933Mbps; 802.11ax: up to 9,608Mbps |
| Maximum Transmit Power | 5GHz: 26dBm; 2.4GHz: 23dBm (subject to local regulations) |
| Adjustable Power Granularity | 1dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; preinstalled mounting bracket |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing (operating and storage) |
| Protection Class | IP42 |
| Surge Protection | 4kV common-mode |
| Power Consumption | 40W (including PSE and USB); 22.5W (excluding PSE and USB) |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU and (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 316,043 hours |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 6 AP supporting 802.11a/b/g/n/ac/ac Wave 2/ax |
| Operating Modes | Fit AP, Cloud AP and Anchor AP; configurable through CLI, WLAN controller, Cloudnet or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Radio Configuration | 5GHz: 4×4:4, up to 2.4Gbps; 2.4GHz: 2×2:2, up to 575Mbps |
| Channel Bandwidth | 5GHz: 20/40/80MHz; 2.4GHz: 20/40MHz |
| Maximum Transmission Speed | 2.975Gbps |
| Maximum Clients | 1,024 total (512 per radio) |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO, OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Technologies | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, AC discovery, NAT, DTLS encryption, IPv4/IPv6, time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF Management | Automatic channel, transmit power and bandwidth adjustment; SSID hiding and client limits |
| Forwarding and VLAN | Centralized, local and policy forwarding; VLAN binding by interface, SSID or MAC; VLAN- and SSID-based user isolation |
| Load Balancing | Traffic-based, user-based and frequency-band-based load balancing; band steering |
| Roaming | 802.11k/v smart roaming and 802.11r fast transition |
| Multicast | IPv4/IPv6 IGMP and MLD snooping; multicast-to-unicast conversion |
| Wireless Location | BLE and RSSI location in Fit AP mode |
| IoT Support | Connect third-party RFID or Zigbee gateways through the PSE port |
| Additional WLAN Features | Mesh networking, wireless probing, Hotspot 2.0 in Fit AP mode and Bonjour gateway |
| Authentication | 802.1X, MAC, Portal, PSK, Private-PSK/PPSK, social media authentication in Cloud AP mode, and EAP methods including TLS, TTLS, PEAP, FAST, GTC, MSCHAPv2 and SIM |
| Wireless Security | WPA2/WPA3 Personal and Enterprise, OWE, AES, TKIP, CCMP, packet and MAC filtering, broadcast suppression, EAD, management frame protection, WIPS and IPSG |
| Layer 2 and Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66, NAT logging, LLDP, STP, and IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming optimization and software recovery |
| QoS | WMM, priority marking and mapping, QoS policies, packet filtering, traffic classification, CAR, user bandwidth management, ATF, CAC, application identification, SQA and UCC |
| Power Saving | Green AP, U-APSD and Spatial Multiplexing Power Save |
| Management | HTTP/HTTPS web GUI, SNMP v1/v2c/v3, MIB, SSH v2, Telnet, FTP/TFTP, CLI, Syslog, secure boot and NETCONF |
| IEEE Standards | 802.11a/b/g/n/ac/ac Wave 2/ax, 802.11d/e/h/i/w/u, 802.11k/v/r, 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certification | Wi-Fi 6, WMM, WPA/WPA2/WPA3 Enterprise and Personal (SAE), Enhanced Open (OWE) |
