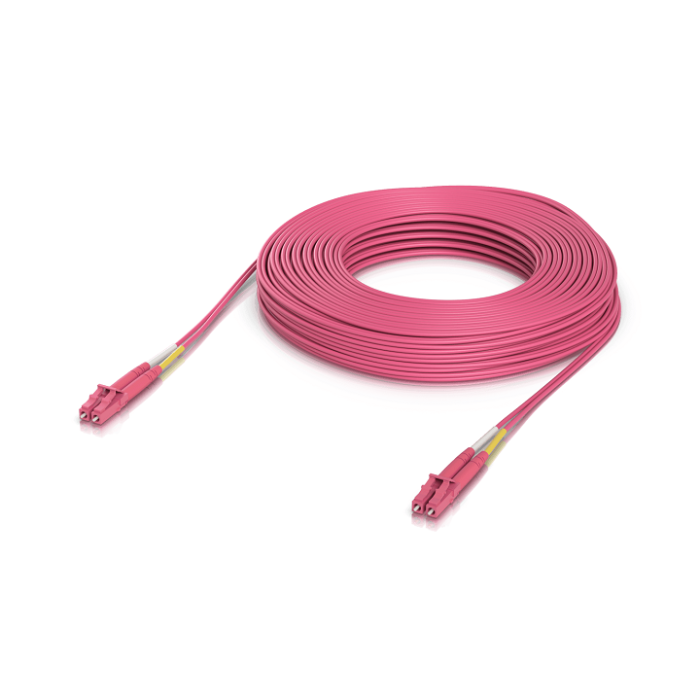

Ubiquiti OM4 Duplex LC UPC Fiber Patch Cable - UACC-OFC-M2-LULU-30M
Indoor OM4 multi-mode fiber patch cable with duplex LC UPC connectors.
OM4 multi-mode fiber
Duplex LC UPC connectors
Cable length: 0.5 to 30 m
| General | |
|---|---|
| Available Lengths |
0.5, 1, 3, 5, 10, 15, 30 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
| Pack Options |
Single Unit 50-Pack (0.5 / 1 / 3 m) |
| Connector | (2) Duplex LC UPC |
| Operating Environment | Indoor |
| Cable Specifications | |
| Fiber Mode | OM4 |
| Jacket Diameter | 2 mm (0.08") |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Rose |
| Wavelength | 850 / 1300 nm |
| Insertion Loss | < 0.3 dB |
| Return Loss | > 35 dB |
| Repeatability | < 0.1 dB |
| Durability | < 0.2 dB (1,000 matings) |
| Operating Temperature | -40 to 75C (-40 to 167F) |
