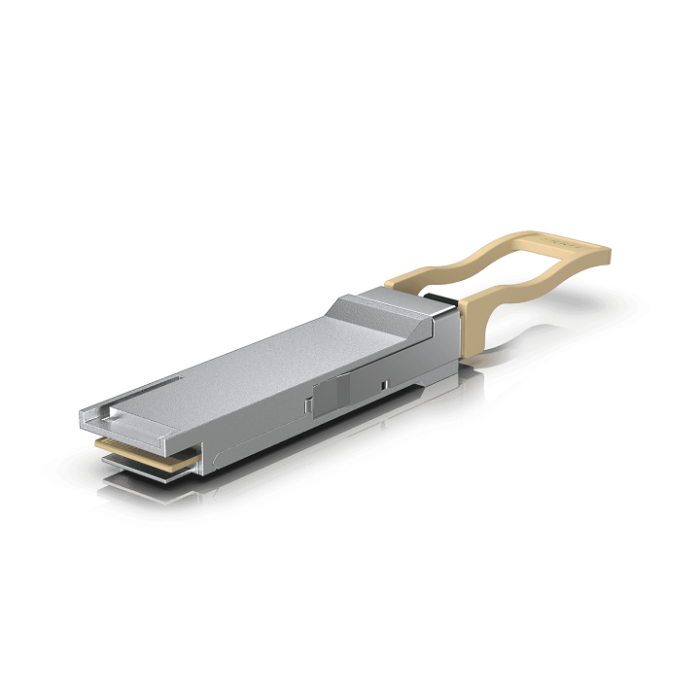

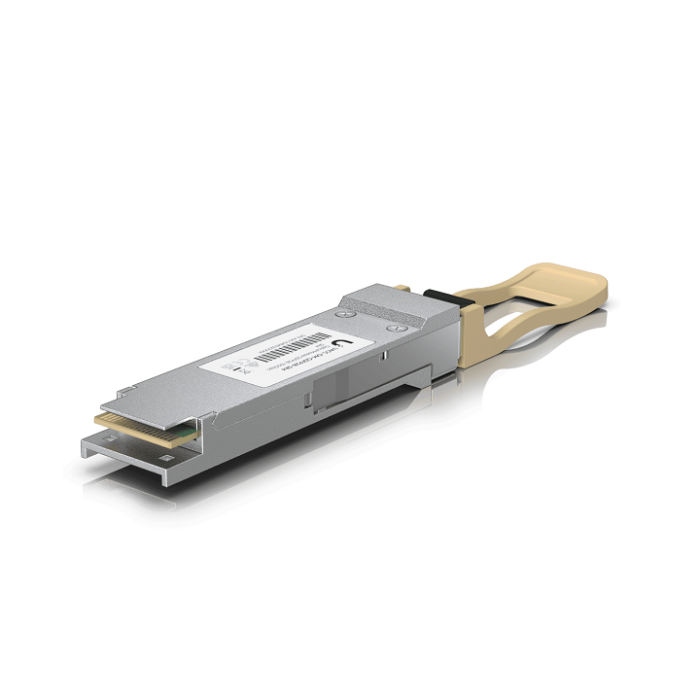

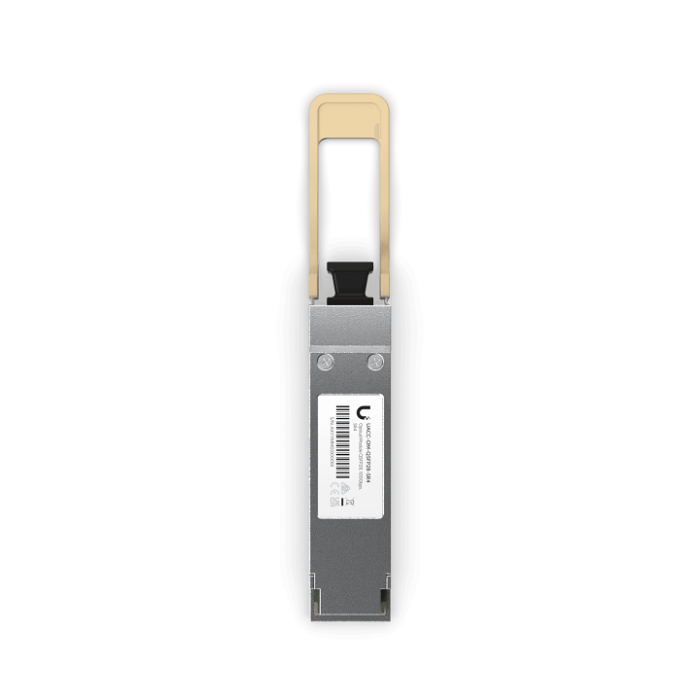

Ubiquiti 100G SR4 Multi-Mode Optical Module - UACC-OM-QSFP28-SR4
QSFP28 transceiver that supports 100G connections up to 100 m using multi-mode fiber with an MPO-12 Type B UPC connector.
Max data rate: 100 Gbps
Compatible with QSFP28 and QSFP+ interfaces
MPO-12 Type B UPC connector
Supports multi-mode fiber connections up to 100 m
| Specification | Details |
|---|---|
| Form Factor | QSFP |
| Connector | MPO-12 Type B UPC |
| Supported Media | Multi-Mode Fiber |
| TX Wavelength | 850 nm |
| RX Wavelength | 850 nm |
| Supported Data Rate | 40 / 100 Gbps |
| Supported Cable Distance | 100 m (328 ft) |
| Max. Power Consumption | 2.5 W |
| Pack Options | Single Unit |
| Ambient Operating Temperature | 0 to 70 C (32 to 158 F) |
| Warning |
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
