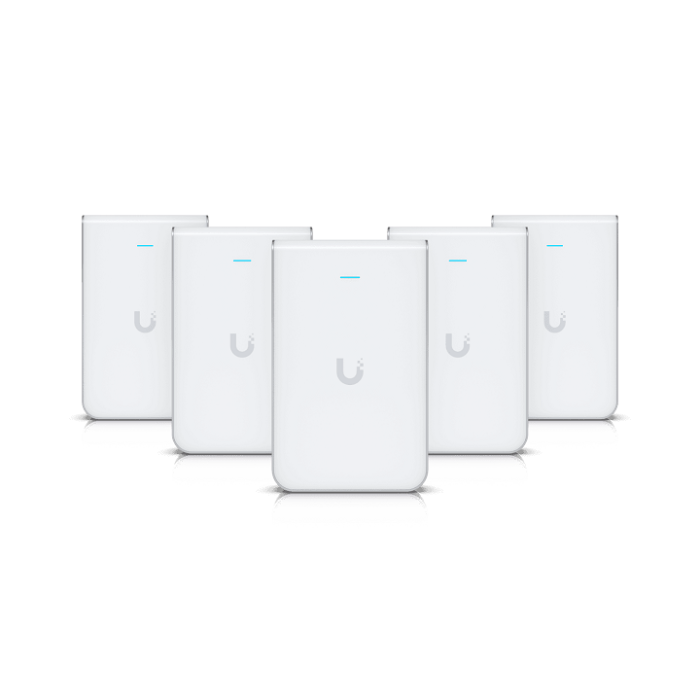

Ubiquiti AC In-Wall Wall-mounted WiFi 5 Access Point - UAP-AC-IW-5 - 5 Pack
Wall-mounted WiFi 5 AP with 4 spatial streams and a built-in 2‑port switch ideal for seamless coverage of smaller rooms.
Mechanical
Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Hardware
Networking Interface (3) GbE RJ45 Ports
Buttons Reset
Power Method PoE+ Supported
Power Supply UniFi PoE Switch (Not Included)
PoE Out 48V Pass-Through (Pins 1, 2+; 3, 6-)
Maximum Power Consumption
With PoE Passthrough 7W
19W*
* Requires PoE+ switch.
Maximum TX Power
2.4 GHz 20 dBm
5 GHz 20 dBm
Antennas (1) Dual-Band Antenna, Single-Polarity
2.4 GHz 1 dBi
5 GHz 2 dBi
Mounting 1-Gang Electrical Wall Box (Not Included)
Operating Temperature -10 to 50 C (14 to 122 F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Software
WiFi Standards 802.11 a/b/g/n/r/k/v/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per Radio
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
Power Save Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 250
