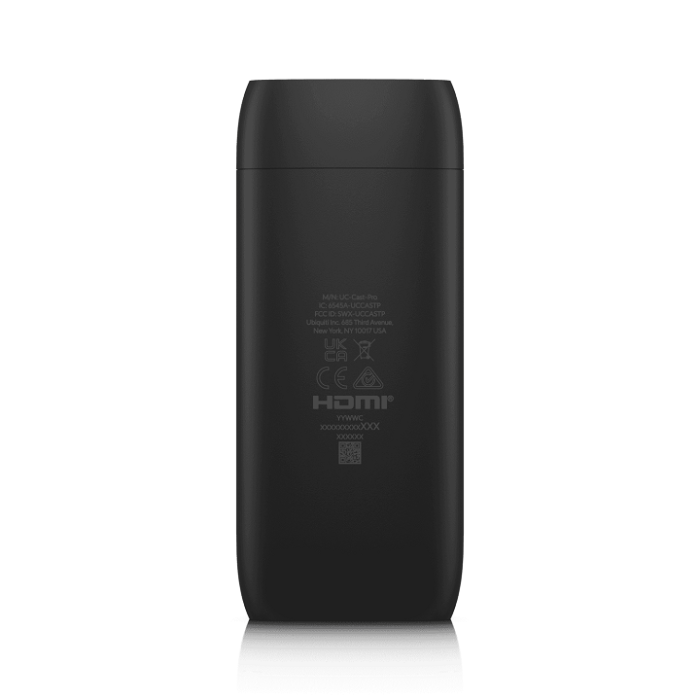

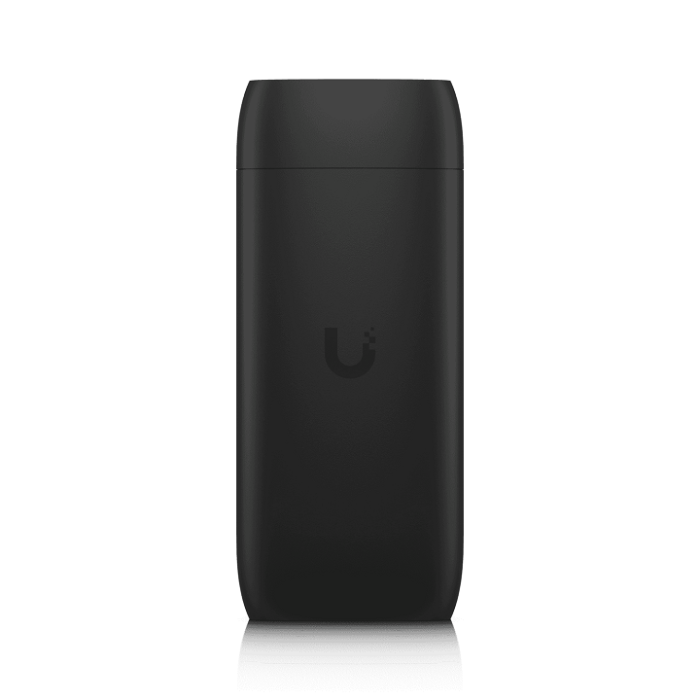

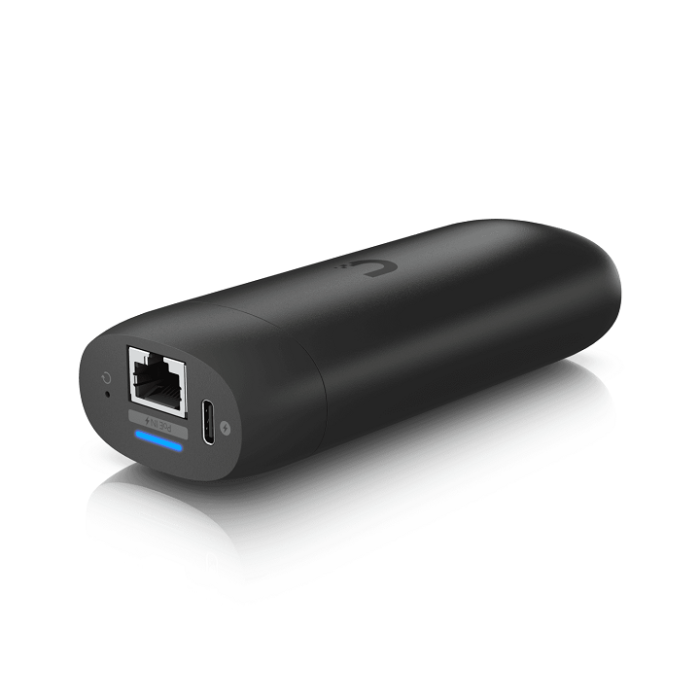

Ubiquiti Display Cast Pro - UC-Cast-Pro
Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.
#1: Presents media content up to 4K resolution, websites, and YouTube videos to any HDMI-compatible display
#2: Create multimedia playlists and dynamic digital signage layouts with UniFi Connect
#3: Automatically power on/off display with HDMI CEC
#4: Keyboard and mouse control via USB-C
#5: PoE in or USB-C adapter power
#6: Connected with UniFi WiFi Auto-Link or Ethernet
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions (Without Mount) | 123 x 52 x 31 mm (3.5 x 2.1 x 1.2 in) |
| Dimensions (With Mount) | 125.1 x 56.3 x 40.8 mm (3.6 x 2.1 x 1.4 in) |
| Hardware | |
| Processor | Octa-core CPU: (2) ARM Cortex-A78 and (6) ARM Cortex-A55 |
| Graphics | Integrated Mali-G57 GPU |
| Memory (Storage) | 32 GB |
| Memory (RAM) | 8 GB |
| Power Method | USB-C: 5 V DC, 3 A PoE: 48 V DC, 0.35 A |
| Input / Output |
(1) GbE RJ45 port (Power input) (2) USB Type-C ports (Power input) |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax |
| Wireless Connectivity |
2.4 GHz Wi-Fi, 20/40 MHz bandwidth 5 GHz Wi-Fi, 20/40/80 MHz bandwidth |
| Environmental | |
| Operating Temperature | 0 to 40C (32 to 104F) |
| Operating Humidity | 20 to 90% non-condensing |
| Certifications | |
| Compliance | CE, FCC, IC, Wi-Fi CERTIFIED |
| Software | |
| Management Application | UniFi Connect (Version 3.14.6 and later) |
| Mobile Applications | UniFi Connect iOS & Android (Version 2.18.1 and later) |
