Ubiquiti UCG-Ultra Cloud Gateway Ultra Compact Cloud Gateway
Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.
| Device Specifications | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Form Factor | Compact desktop |
| UniFi Application Suite | Network ✓ |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

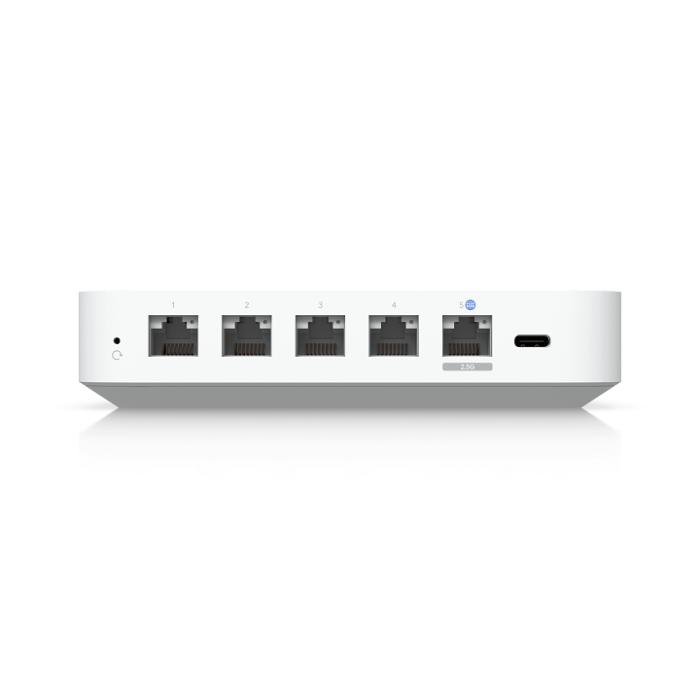

| Port Layout | |
| 1 GbE RJ45 | 4 (1G/100M/10M) |
| 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 1 Gbps |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Advanced Filters | Zones, Regions, Domains, Apps |
| Content Filtering | ✓ |
| Intrusion Prevention IPS/IDS | ✓ (55,000+ signatures) |
| VLAN/Subnet-based Segmentation | ✓ |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic ✓ |
| IPsec / OpenVPN | ✓ / ✓ |
| Teleport Zero-Config VPN | ✓ |
| WireGuard / L2TP | ✓ / ✓ |
| VPN Server | ✓ |
| VPN Client | OpenVPN, WireGuard |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing | OSPF ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | ✓ (SNAT / DNAT / Masquerade / Pool / 1-to-1) |
| Integrated RADIUS Server | ✓ (RadSec support) |
| LTE Internet Failover Support | ✓ |
| Internet Quality & Outage Reporting | ✓ |
| MAC Address Table Size | 2,000 |
| Custom DHCP & IPv6 ISP | ✓ / ✓ |
| IGMP Proxy | ✓ |
| Hardware | |
| Max. Power Consumption | 6.2W |
| Power Method | USB-C (5V DC/3A) |
| Power Supply | USB-C Adapter included |
| Supported Voltage Range | 100—240V AC |
| Processor | Quad-core ARM Cortex-A53 1.5 GHz |
| System Memory | 3 GB |
| On-board Storage | 16 GB |
| Enclosure Material | Polycarbonate |

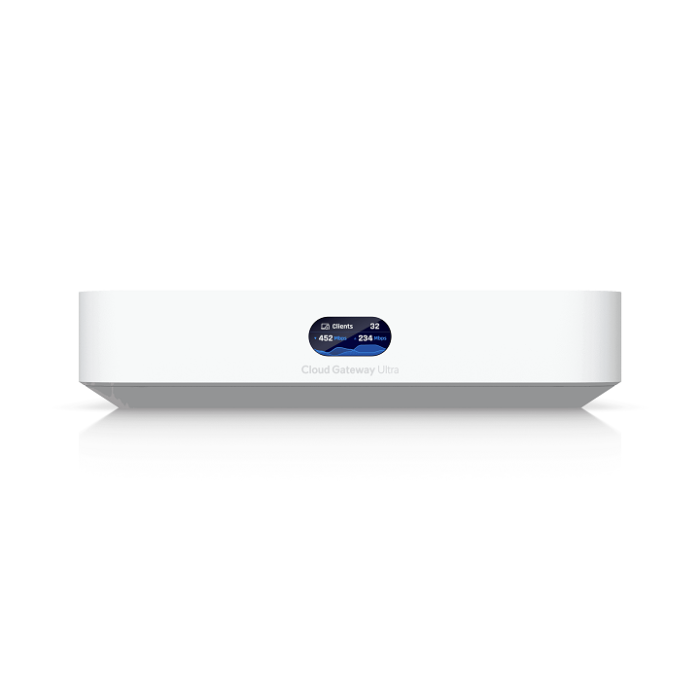

| LCM Display | 0.96" status display |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet ✓ |
| Button | Factory-reset |
| Operating Temperature | -10 to 40C (14 to 104F) |
| Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| Software Requirements | |
| UniFi Mobile App | iOS 10.12.0+ / Android 10.11.2+ |
